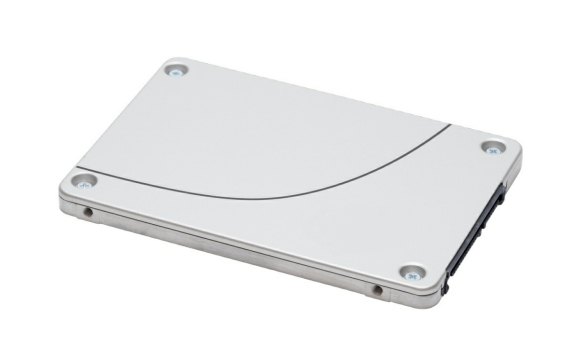

Intel S4600 Mainstream
Model Intel S4600 MainstreamPart no. 4XB7A08500EAN 889488454624
32 specifications
- Storage240 GB
- ConnectivitySerial ATA III
- Weight63 g
- Power consumption (read)3.1 W
- Width70 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 240 GB
- Connectivity
- Serial ATA III
- Weight
- 63 g
- Power consumption (read)
- 3.1 W
- Width
- 70 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- Intel S4600 Mainstream
- Part numbers
- 4XB7A08500, 7SD7A05709, 7SD7A05710
- EAN / UPC
- 889488454624, 889488454389, 889488454617
- Also known as
- Lenovo Intel S4600 Mainstream 240 GB 3.5" Serial ATA III 3D TLC NAND
Specifications
32 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 240 GB |
| SSD form factor | 3.5" |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D TLC NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Read speed | 500 MB/s |
| Write speed | 260 MB/s |
| Random read (4KB) | 72000 IOPS |
| Random write (4KB) | 38000 IOPS |
| Read latency | 36 µs |
| Write latency | 36 µs |
| S.M.A.R.T. support | Yes |
| Mean time between failures (MTBF) | 2000000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 3.1 W |
| Power consumption (write) | 3.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 63 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -55 - 95 °C |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Operating shock | 1000 G |
| Maximum operating altitude | 3050 m |
