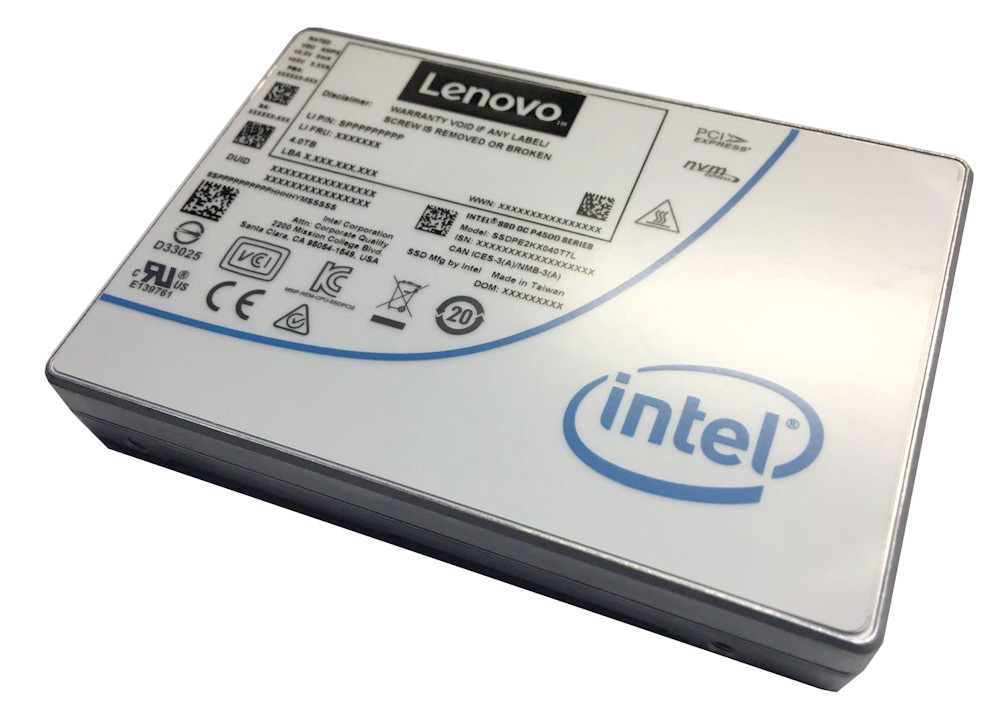

7SD7A05777 internal solid state drive
4 TB PCI Express 3.0 NVMe
Model 7SD7A05777EAN 889488455157
25 specifications
- Storage4 TB
- ConnectivityPCI Express 3.0
- Weight131 g
- Power consumption (read)10.7 W
- Width70 mm
- Operating temperature (T-T)0 - 35 °C
Overview
- Storage
- 4 TB
- Connectivity
- PCI Express 3.0
- Weight
- 131 g
- Power consumption (read)
- 10.7 W
- Width
- 70 mm
- Operating temperature (T-T)
- 0 - 35 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- 7SD7A05777
- Part number
- 7SD7A05777
- EAN / UPC
- 889488455157
- Also known as
- Lenovo 7SD7A05777 internal solid state drive 4 TB PCI Express 3.0 NVMe
Specifications
25 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 4 TB |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Component for | Server/workstation |
| Random read (4KB) | 645000 IOPS |
| Random write (4KB) | 62500 IOPS |
| Read latency | 10 µs |
| Write latency | 13 µs |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 WEEE Directive 2002/96/EC |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 10.7 W |
| Power consumption (write) | 20.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 131 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1000 G |
| Maximum operating altitude | 3048 m |
| Vibration resistance | 2.17 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Compatible products | SR570 (7Y02/7Y03), SR590 (7X98/7X99), ST550 (7X09/7X10), SR650 (7X05/7X06), SR850 (7X18/7X19), SR850P (7D2F/2D2G), SR860 (7X69/7X70), SR950 (7X11/12/13), SD530 (7X21), SN550 (7X16), SN850 (7X15) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
