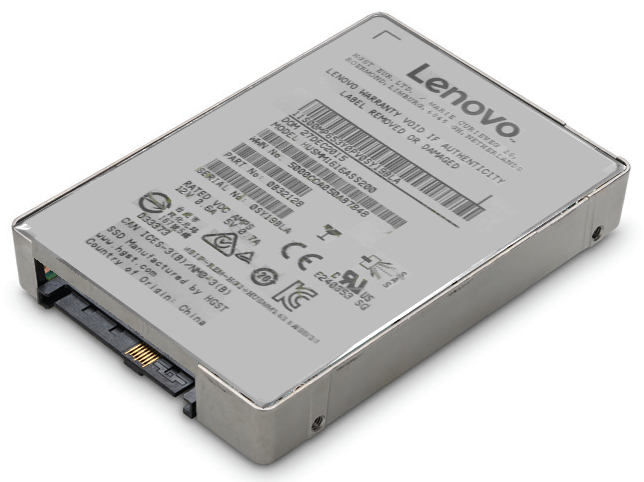

7SD7A05753 internal solid state drive
800 GB 2.5" SAS
Model 7SD7A05753EAN 889488454976
23 specifications
- Storage800 GB
- ConnectivitySAS
- ColourAluminium
- Power consumption (average)9 W
- Operating temperature (T-T)0 - 60 °C
Overview
- Storage
- 800 GB
- Connectivity
- SAS
- Colour
- Aluminium
- Power consumption (average)
- 9 W
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- 7SD7A05753
- Part number
- 7SD7A05753
- EAN / UPC
- 889488454976
- Also known as
- Lenovo 7SD7A05753 internal solid state drive 800 GB 2.5" SAS
Specifications
23 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 800 GB |
| SSD form factor | 2.5" |
| Interface | SAS |
| Component for | Server/workstation |
| Security algorithms | FIPS 140-2 |
| Random read (4KB) | 240000 IOPS |
| Random write (4KB) | 130000 IOPS |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Hot-swap | Yes |
| End-to-End Data Protection | Yes |
| Mean time between failures (MTBF) | 2500000 h |
| Endurance rating (for 5 years) | 10 GB/day |
| TBW rating | 15 |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 VCCI V-3/2013-04 Class B CNS 13438: 2006 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU REACH 1907/2006 WEEE D |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 9 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Product colour | Aluminium |
| Compliance certificates | RoHS |
| Compatible products | ThinkSystem SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530 |
