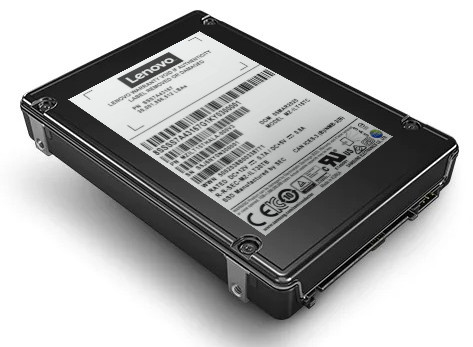

4XB7A80340 internal solid state drive
800 GB 2.5" SAS V-NAND TLC
Model 4XB7A80340EAN 889488600700
24 specifications
- Storage800 GB
- ConnectivitySAS
- Power consumption (read)11.5 W
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 800 GB
- Connectivity
- SAS
- Power consumption (read)
- 11.5 W
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- 4XB7A80340
- Part number
- 4XB7A80340
- EAN / UPC
- 889488600700
- Also known as
- Lenovo 4XB7A80340 internal solid state drive 800 GB 2.5" SAS V-NAND TLC
Specifications
24 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 800 GB |
| SSD form factor | 2.5" |
| Interface | SAS |
| Memory type | V-NAND TLC |
| Component for | Server/workstation |
| Data transfer rate | 24 Gbit/s |
| Read speed | 2100 MB/s |
| Write speed | 2000 MB/s |
| Random read (4KB) | 420000 IOPS |
| Random write (4KB) | 120000 IOPS |
| Read latency | 120 µs |
| Write latency | 45 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | RoHS UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 11.5 W |
| Power consumption (write) | 14.7 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 4572 m |
Other features
| Specification | Value |
|---|---|
| Compatible products | ThinkSystem |
