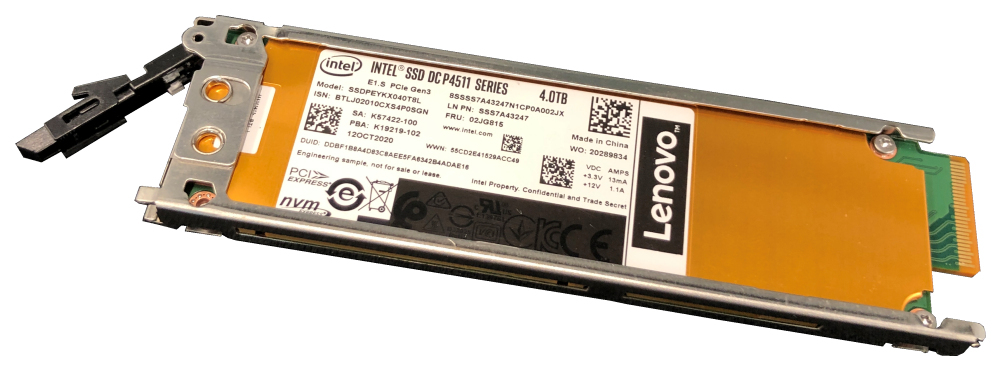

4XB7A17198 internal solid state drive
4 TB EDSFF PCI Express 3.0 NVMe
Model 4XB7A17198EAN 889488512072
25 specifications
- Storage4 TB
- ConnectivityPCI Express 3.0
- Weight139 g
- Power consumption (read)12.5 W
- Width70 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 4 TB
- Connectivity
- PCI Express 3.0
- Weight
- 139 g
- Power consumption (read)
- 12.5 W
- Width
- 70 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- 4XB7A17198
- Part number
- 4XB7A17198
- EAN / UPC
- 889488512072, 8894885120722
- Also known as
- Lenovo 4XB7A17198 internal solid state drive 4 TB EDSFF PCI Express 3.0 NVMe
Specifications
25 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 4 TB |
| SSD form factor | EDSFF |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Component for | Server/workstation |
| Random read (4KB) | 610200 IOPS |
| Random write (4KB) | 75000 IOPS |
| Sequential latency - read (up to) | 12 µs |
| Sequential latency - write (up to) | 14 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 12.5 W |
| Power consumption (write) | 12.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 139 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating vibration | 2.17 G |
| Operating shock | 1000 G |
Other features
| Specification | Value |
|---|---|
| Endurance rating | 3.33 PB |
