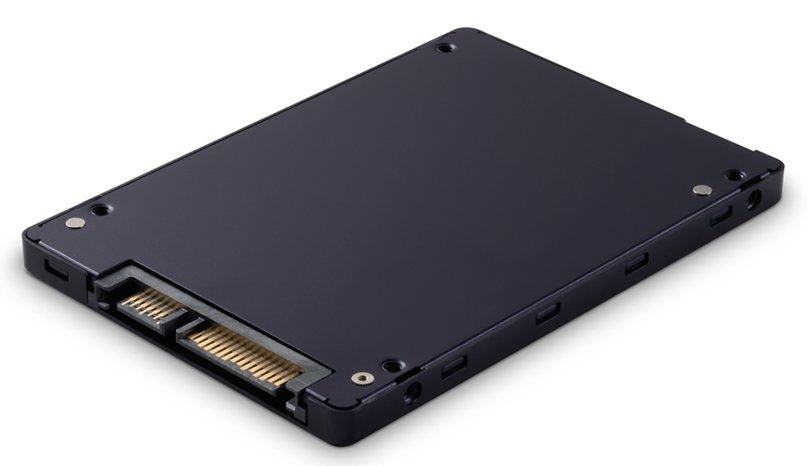

4XB7A14063 internal solid state drive
1.92 TB 2.5" Serial ATA III 3D TLC NAND
Model 4XB7A14063
25 specifications
- Storage1.92 TB
- ConnectivitySerial ATA III
- Weight70 g
- Width70 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1.92 TB
- Connectivity
- Serial ATA III
- Weight
- 70 g
- Width
- 70 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- 4XB7A14063
- Part number
- 4XB7A14063
- Also known as
- Lenovo 4XB7A14063 internal solid state drive 1.92 TB 2.5" Serial ATA III 3D TLC NAND
Specifications
25 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1.92 TB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D TLC NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 32000 IOPS |
| Read latency | 200 µs |
| Write latency | 300 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 3000000 h |
| Certification | Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS FCC: CFR Title 47, Part 15 Class B UL: UL-60950-1, 2nd Edition BSMI (Taiwan): approval to CNS 13438 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KCC RRL (Korea): approval to KN 32 Class B, KN 35 C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
