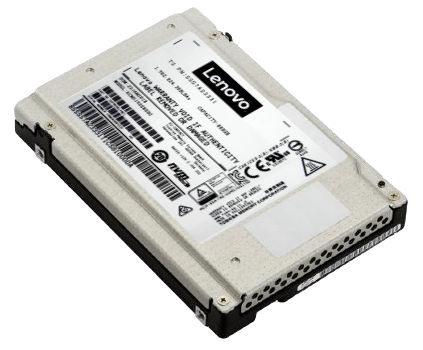

4XB7A14059 internal solid state drive
1.92 TB U.2 PCI Express 3.0 NVMe
Model 4XB7A14059
24 specifications
- Storage1.92 TB
- ConnectivityPCI Express 3.0
- Weight130 g
- Width70 mm
- Operating temperature (T-T)0 - 60 °C
Overview
- Storage
- 1.92 TB
- Connectivity
- PCI Express 3.0
- Weight
- 130 g
- Width
- 70 mm
- Operating temperature (T-T)
- 0 - 60 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- 4XB7A14059
- Part number
- 4XB7A14059
- Also known as
- Lenovo 4XB7A14059 internal solid state drive 1.92 TB U.2 PCI Express 3.0 NVMe
Specifications
24 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1.92 TB |
| SSD form factor | U.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Component for | Server/workstation |
| Hardware encryption | No |
| Security algorithms | 256-bit AES |
| Random read (4KB) | 650000 IOPS |
| Random write (4KB) | 65000 IOPS |
| Random latency - read (up to) | 110 µs |
| Random latency - write (up to) | 30 µs |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2500000 h |
| Certification | Underwriters Laboratories: UL60950-1 Canada: CAN/CSA-C22.2 No.60950-1 TUV: EN 60950-1 BSMI (Taiwan): CNS 13438 (CISPR Pub. 22 Class B): D33003 MSIP: KN22, KN24 (CISPR Pub. 22 Class B) Australia/New Zealand: AS/NZS CISPR32:2015 Class B Canada: ICES-003 Issue 6 Class B EMC: EN55022 (2010) Class B EMC: |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 130 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Operating shock | 1000 G |
