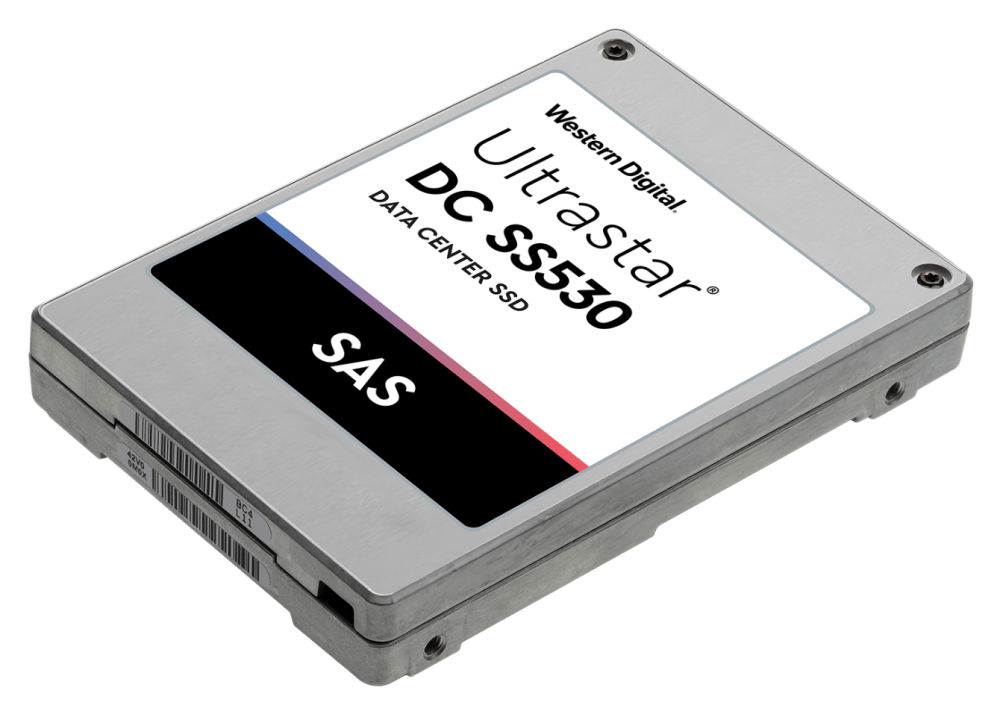

4XB7A13989 internal solid state drive
800 GB 2.5" SAS 3D TLC NAND
Model 4XB7A13989
28 specifications
- Storage800 GB
- ConnectivitySAS
- Weight175 g
- Width70 mm
- Operating temperature (T-T)0 - 75 °C
Overview
- Storage
- 800 GB
- Connectivity
- SAS
- Weight
- 175 g
- Width
- 70 mm
- Operating temperature (T-T)
- 0 - 75 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- 4XB7A13989
- Part number
- 4XB7A13989
- Also known as
- Lenovo 4XB7A13989 internal solid state drive 800 GB 2.5" SAS 3D TLC NAND
Specifications
28 specifications in 3 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 800 GB |
| SSD form factor | 2.5" |
| Interface | SAS |
| NVMe | No |
| Memory type | 3D TLC NAND |
| Component for | Server |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Data transfer rate | 12 Gbit/s |
| Random read (4KB) | 239500 IOPS |
| Random write (4KB) | 170300 IOPS |
| Read latency | 92 µs |
| Write latency | 26 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Drive writes per day (DWPD) | 10 |
| Mean time between failures (MTBF) | 2500000 h |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 VCCI V-3/2013-04 Class B CNS 13438: 2006 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU REACH 1907/2006 WEEE D |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 175 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
