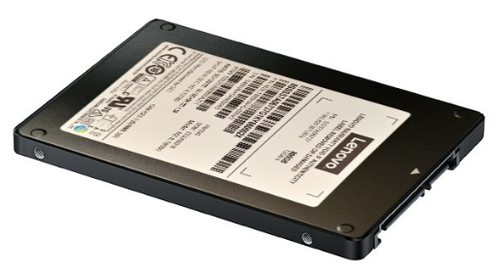

Lenovo 4XB7A13654 internal solid state drive

Lenovo 4XB7A13654 internal solid state drive

1.6 TB 2.5" SAS

Model 4XB7A13654EAN 889488475452

28 specifications

Storage1.6 TB
ConnectivitySAS
Weight140 g
Power consumption (read)9 W
Width70 mm
Operating temperature (T-T)0 - 70 °C

See all specifications

Overview

Storage: 1.6 TB
Connectivity: SAS
Weight: 140 g
Power consumption (read): 9 W
Width: 70 mm
Operating temperature (T-T): 0 - 70 °C

Brand: Lenovo
Category: Internal Solid State Drive
Model: 4XB7A13654
Part number: 4XB7A13654
EAN / UPC: 889488475452
Also known as: Lenovo 4XB7A13654 internal solid state drive 1.6 TB 2.5" SAS

Specifications

28 specifications in 5 groups

Features

Specification	Value
SSD capacity	1.6 TB
SSD form factor	2.5"
Interface	SAS
NVMe	No
Component for	Server/workstation
Data transfer rate	12 Gbit/s
Random read (4KB)	230000 IOPS
Random write (4KB)	90000 IOPS
Read latency	106 µs
Write latency	60 µs
S.M.A.R.T. support	Yes
Hot-swap	Yes
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Mean time between failures (MTBF)	2000000 h
Certification	UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI

Power

Specification	Value
Power consumption (read)	9 W
Power consumption (write)	9 W

Weight & dimensions

Specification	Value
Width	70 mm
Depth	100 mm
Height	15 mm
Weight	140 g

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Non-operating vibration	20 G
Non-operating shock	1500 G
Maximum operating altitude	4572 m

Other features

Specification	Value
Compliance certificates	RoHS
