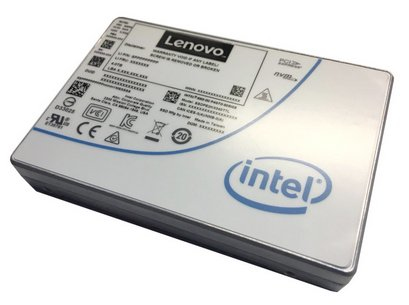

4XB7A10204 internal solid state drive
2 TB 2.5" U.2 NVMe 3D TLC
Model 4XB7A10204EAN 889488482894
31 specifications
- Storage2 TB
- ConnectivityU.2
- Weight139 g
- Power consumption (read)10 W
- Width70 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 2 TB
- Connectivity
- U.2
- Weight
- 139 g
- Power consumption (read)
- 10 W
- Width
- 70 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- 4XB7A10204
- Part number
- 4XB7A10204
- EAN / UPC
- 889488482894
- Also known as
- Lenovo 4XB7A10204 internal solid state drive 2 TB 2.5" U.2 NVMe 3D TLC
Specifications
31 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 2 TB |
| SSD form factor | 2.5" |
| Interface | U.2 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Read speed | 3200 MB/s |
| Write speed | 2000 MB/s |
| Random read (4KB) | 637000 IOPS |
| Random write (4KB) | 81500 IOPS |
| PCI Express interface data lanes | x4 |
| Hot-swap | Yes |
| End-to-End Data Protection | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 10 W |
| Power consumption (write) | 12 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 139 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating vibration | 2.17 G |
| Operating shock | 1000 G |
| Maximum operating altitude | 3048 m |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
