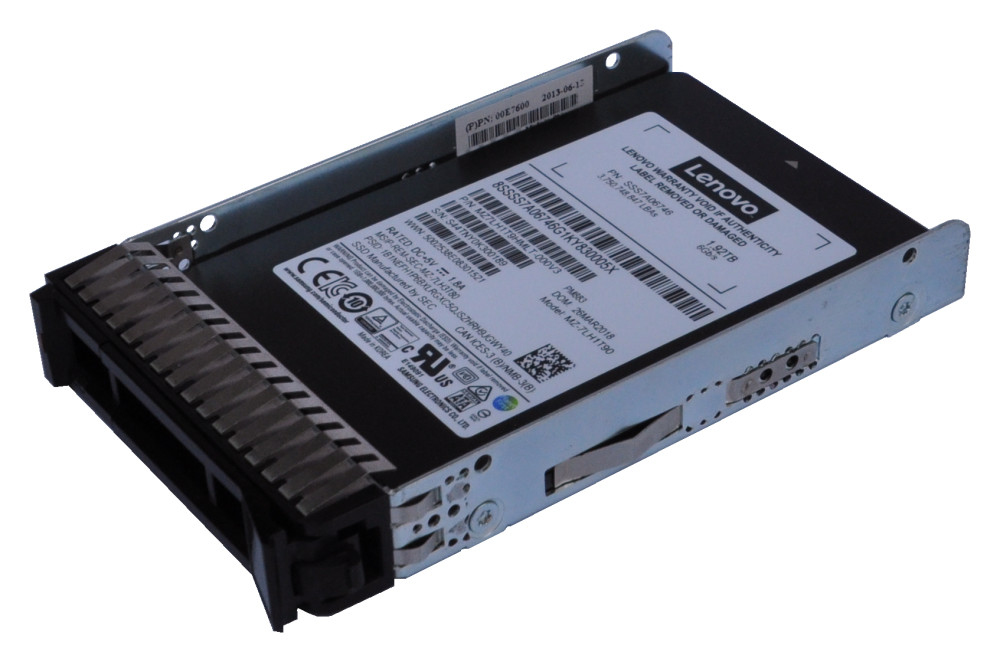

4XB7A10197 internal solid state drive
960 GB 2.5" Serial ATA III
Model 4XB7A10197EAN 889488468997
30 specifications
- Storage960 GB
- ConnectivitySerial ATA III
- Weight433 g
- Power consumption (read)2.3 W
- Width133 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 960 GB
- Connectivity
- Serial ATA III
- Weight
- 433 g
- Power consumption (read)
- 2.3 W
- Width
- 133 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Lenovo
- Category
- Internal Solid State Drive
- Model
- 4XB7A10197
- Part number
- 4XB7A10197
- EAN / UPC
- 889488468997
- Also known as
- Lenovo 4XB7A10197 internal solid state drive 960 GB 2.5" Serial ATA III
Specifications
30 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 960 GB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| NVMe | No |
| Component for | Server/workstation |
| Data transfer rate | 6 Gbit/s |
| Read speed | 550 MB/s |
| Write speed | 520 MB/s |
| Random read (4KB) | 98000 IOPS |
| Random write (4KB) | 25000 IOPS |
| Read latency | 120 µs |
| Write latency | 40 µs |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Endurance rating (for 5 years) | 0.8 GB/day |
| TBW rating | 1366 |
| Certification | UL, TUV, FCC, CE Mark, C-Tick Mark, BSMI, KCC |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 2.3 W |
| Power consumption (write) | 3.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 133 mm |
| Depth | 174 mm |
| Height | 63 mm |
| Weight | 433 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Operating vibration | 2.17 G |
| Operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
