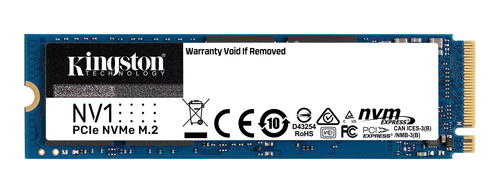

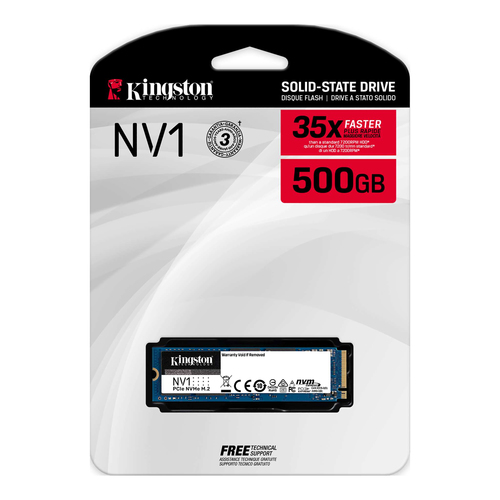

NV1 500 GB M.2 PCI Express 3.0 NVMe
Model NV1Part no. SNVS/250GBKEAN 740617323054
22 specifications
- Storage500 GB
- ConnectivityPCI Express 3.0
- Weight7 g
- Power consumption (read)1.1 W
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 500 GB
- Connectivity
- PCI Express 3.0
- Weight
- 7 g
- Power consumption (read)
- 1.1 W
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Kingston Technology
- Category
- Internal Solid State Drive
- Model
- NV1
- Part numbers
- SNVS/250GBK, SNVS/500G, SNVS/1000G, SNVS/2000G, SNVS/1000GBK, SNVS/2000GBK +1 more
- EAN / UPC
- 740617323054, 740617316841, 740617316681, 740617316889 +3 more
- Also known as
- Kingston Technology NV1 500 GB M.2 PCI Express 3.0 NVMe
Specifications
22 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Component for | PC/Laptop |
| Read speed | 2100 MB/s |
| Write speed | 1700 MB/s |
| TBW rating | 120 |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 1.1 W |
| Power consumption (write) | 3.3 W |
| Power consumption (average) | 0.205 W |
| Power consumption (idle) | 0.005 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.1 mm |
| Weight | 7 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 20 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
