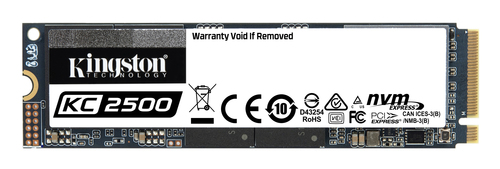

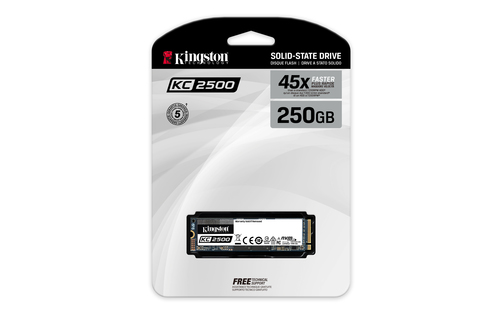

KC2500 250 GB M.2 PCI Express 3.0 NVMe 3D TLC
Model KC2500Part no. SKC2500M8/500GBKEAN 740617307177
31 specifications
- Storage250 GB
- ConnectivityPCI Express 3.0
- Weight8 g
- Power consumption (read)2.1 W
- Width80 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 250 GB
- Connectivity
- PCI Express 3.0
- Weight
- 8 g
- Power consumption (read)
- 2.1 W
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Kingston Technology
- Category
- Internal Solid State Drive
- Model
- KC2500
- Part numbers
- SKC2500M8/500GBK, SKC2500M8/250G, SKC2500M8/500G, SKC2500M8/1000G, SKC2500M8/2000G, SKC2500M8/2000GBK +2 more
- EAN / UPC
- 740617307177, 740617307146, 740617307160, 740617307184 +4 more
- Also known as
- Kingston Technology KC2500 250 GB M.2 PCI Express 3.0 NVMe 3D TLC
Specifications
31 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 250 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES-XTS |
| Read speed | 3500 MB/s |
| Write speed | 1200 MB/s |
| Random read (4KB) | 375000 IOPS |
| Random write (4KB) | 300000 IOPS |
| Controller type | SMI SM2262EN |
| Mean time between failures (MTBF) | 2000000 h |
| TCG Opal 2.0 | Yes |
| TBW rating | 150 |
| Certification | CE, FCC |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 2.1 W |
| Power consumption (write) | 7 W |
| Power consumption (average) | 0.2 W |
| Power consumption (idle) | 0.003 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 3.5 mm |
| Height | 22 mm |
| Weight | 8 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 20 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
