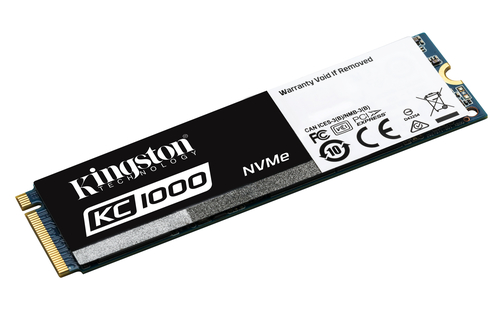

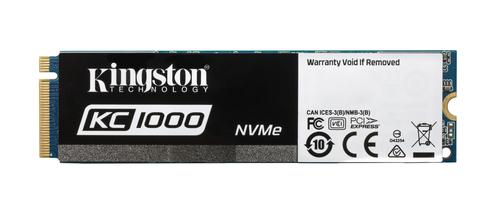

KC1000 240 GB M.2 PCI Express 3.0 NVMe MLC
Model KC1000Part no. SKC1000H/480GEAN 740617265033
38 specifications
- Storage240 GB
- ConnectivityPCI Express 3.0
- Weight10 g
- ColourBlack, White
- Power consumption (read)4.95 W
- Width22 mm
Overview
- Storage
- 240 GB
- Connectivity
- PCI Express 3.0
- Weight
- 10 g
- Colour
- Black, White
- Power consumption (read)
- 4.95 W
- Width
- 22 mm
- Brand
- Kingston Technology
- Category
- Internal Solid State Drive
- Model
- KC1000
- Part numbers
- SKC1000H/480G, SKC1000/240G, SKC1000/480G, SKC1000/960G, SKC1000H/240G, SKC1000H/960G
- EAN / UPC
- 740617265033, 740617264951, 740617264975, 5099206073814 +3 more
- Also known as
- Kingston Technology KC1000 240 GB M.2 PCI Express 3.0 NVMe MLC
Specifications
38 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 240 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| NVMe version | 1.2 |
| Memory type | MLC |
| Component for | PC/Laptop |
| Read speed | 2700 MB/s |
| Write speed | 900 MB/s |
| Maximum read (4KB) | 225000 IOPS |
| Maximum write (4KB) | 190000 IOPS |
| Random read (4KB) | 190000 IOPS |
| Random write (4KB) | 160000 IOPS |
| Controller type | Phison PS5007-E7 |
| Processor cores | 8 |
| PCI Express interface data lanes | x4 |
| Mean time between failures (MTBF) | 2000000 h |
| PCMARK Vantage HDD Suite Score | 150000 |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| TBW rating | 300 |
| Certification | FCC, VCI |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 4.95 W |
| Power consumption (write) | 7.4 W |
| Power consumption (average) | 0.99 W |
| Power consumption (idle) | 0.11 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.5 mm |
| Weight | 10 g |
Packaging data
| Specification | Value |
|---|---|

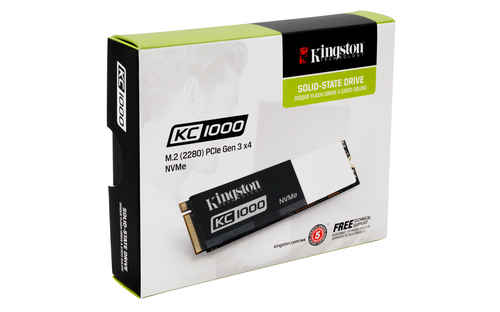

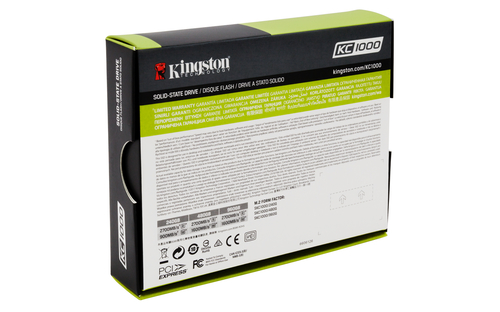

| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 20 G |
Other features
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Compliance certificates | RoHS |
