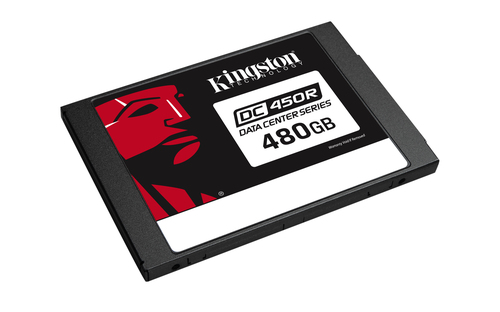

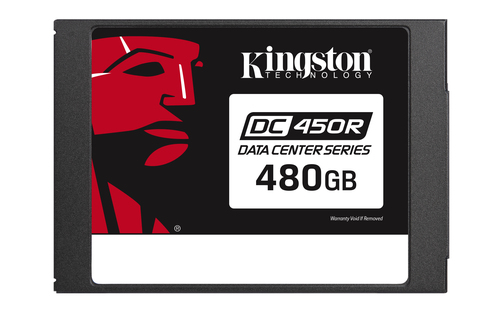

DC450R 480 GB 2.5" Serial ATA III 3D TLC
Model DC450RPart no. SEDC450R/7680GBKEAN 740617307252
32 specifications
- Storage480 GB
- ConnectivitySerial ATA III
- Weight92.34 g
- Power consumption (read)1.25 W
- Width69.9 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 480 GB
- Connectivity
- Serial ATA III
- Weight
- 92.34 g
- Power consumption (read)
- 1.25 W
- Width
- 69.9 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Kingston Technology
- Category
- Internal Solid State Drive
- Model
- DC450R
- Part numbers
- SEDC450R/7680GBK, SEDC450R/480G, SEDC450R/960G, SEDC450R/1920G, SEDC450R/3840G, SEDC450R/7680G +4 more
- EAN / UPC
- 740617307252, 740617299731, 740617299670, 740617299694 +6 more
- Also known as
- Kingston Technology DC450R 480 GB 2.5" Serial ATA III 3D TLC
Specifications
32 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 480 GB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| Memory type | 3D TLC |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 510 MB/s |
| Random read (4KB) | 99000 IOPS |
| Random write (4KB) | 17000 IOPS |
| Read latency | 500 µs |
| Write latency | 2000 µs |
| S.M.A.R.T. support | Yes |
| Power loss protection | No |
| Mean time between failures (MTBF) | 2000000 h |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 1.25 W |
| Power consumption (max) | 4 W |
| Average power consumption (read) | 1.25 W |
| Average power consumption (write) | 3.03 W |
| Power consumption (idle) | 1.05 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69.9 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 92.34 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 20 G |
Other features
| Specification | Value |
|---|---|
| SSD endurance rating | 285TB |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
