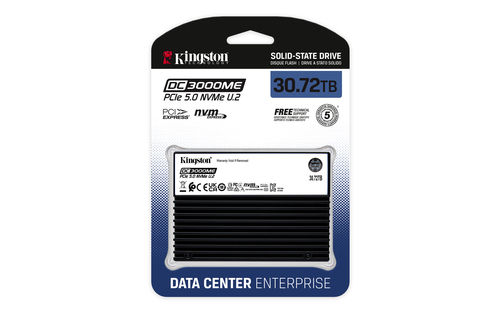

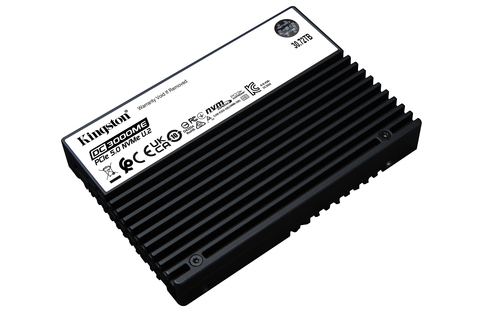

30.7TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD
Model DC3000MEPart no. SEDC3000ME/15T3EAN 740617347838
38 specifications
- Storage30 TB
- ConnectivityPCI Express 5.0
- Weight160.5 g
- Power consumption (read)9.5 W
- Width69.8 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 30 TB
- Connectivity
- PCI Express 5.0
- Weight
- 160.5 g
- Power consumption (read)
- 9.5 W
- Width
- 69.8 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Kingston Technology
- Category
- Internal Solid State Drive
- Model
- DC3000ME
- Part numbers
- SEDC3000ME/15T3, SEDC3000ME/30T7, SEDC3000ME/3T8, SEDC3000ME/7T6
- EAN / UPC
- 740617347838, 740617354843, 740617347876, 740617347852
- Also known as
- Kingston Technology 30.7TB DC3000ME U.2 PCIe 5.0 NVMe TCG Opal Enterprise SSD
Specifications
38 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 30 TB |
| SSD form factor | U.2 |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| Memory type | 3D eTLC |
| Component for | Server |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES, TCG Opal 2.0 |
| Read speed | 14000 MB/s |
| Write speed | 9700 MB/s |
| Random read (4KB) | 2600000 IOPS |
| Random write (4KB) | 350000 IOPS |
| Read latency | 175 µs |
| Write latency | 12 µs |
| Power loss protection | Yes |
| Drive writes per day (DWPD) | 1 |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 56064 |
| Market segment | Server |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 9.5 W |
| Power consumption (write) | 24 W |
| Power consumption (idle) | 9 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69.8 mm |
| Depth | 100.5 mm |
| Height | 14.8 mm |
| Weight | 160.5 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 129.5 mm |
| Package depth | 16.8 mm |
| Package height | 184.2 mm |
| Package weight | 189.14 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Non-operating vibration | 10 G |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 135.9 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case height | 69.8 mm |
| Master (outer) case gross weight | 1.21 kg |
| Products per master (outer) case | 6 pc(s) |
