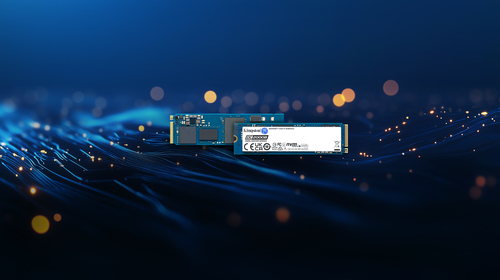

240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD (Non-Heatsink)
Model DC2000BPart no. SEDC2000BM8/960GEAN 740617345186
40 specifications
- Storage240 GB
- ConnectivityPCI Express 4.0
- Weight9 g
- Power consumption (read)3.01 W
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 240 GB
- Connectivity
- PCI Express 4.0
- Weight
- 9 g
- Power consumption (read)
- 3.01 W
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Kingston Technology
- Category
- Internal Solid State Drive
- Model
- DC2000B
- Part numbers
- SEDC2000BM8/960G, SEDC2000BYM8/240G, SEDC2000BM8/240G, SEDC2000BM8/480G
- EAN / UPC
- 740617345186, 740617350364, 740617345223, 740617345209
- Also known as
- Kingston Technology 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD (Non-Heatsink)
Specifications
40 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 240 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | 3D TLC |
| Component for | Server |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 4500 MB/s |
| Write speed | 400 MB/s |
| Random read (4KB) | 260000 IOPS |
| Random write (4KB) | 18000 IOPS |
| Read latency | 70 µs |
| Write latency | 53 µs |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| H/W PLP function | Yes |
| Drive writes per day (DWPD) | 0.4 |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 175 |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 3.01 W |
| Power consumption (write) | 4.09 W |
| Average power consumption (read) | 2.97 W |
| Average power consumption (write) | 4.02 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.5 mm |
| Weight | 9 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 129.5 mm |
| Package depth | 8.38 mm |
| Package height | 184.2 mm |
| Package weight | 32.51 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Non-operating vibration | 20 G |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 135.9 mm |
| Master (outer) case length | 203.2 mm |
| Master (outer) case height | 69.8 mm |
| Master (outer) case gross weight | 403.12 g |
| Products per master (outer) case | 10 pc(s) |
