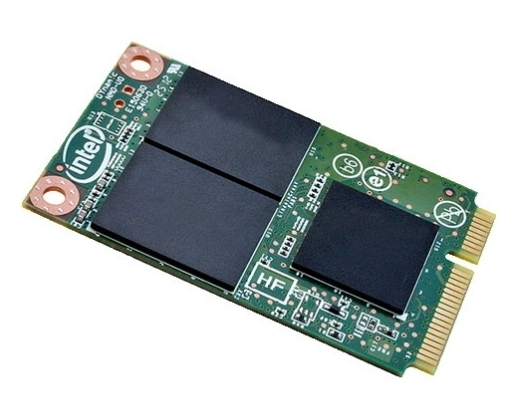

-NUC_SSD_MSATA_480
480 GB mSATA Serial ATA MLC
Model -NUC_SSD_MSATA_480Part no. ISY-NUC_SSD_MSATA_480EAN 8055681881853
26 specifications
- Storage480 GB
- ConnectivitySerial ATA
- Operating voltage5 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 480 GB
- Connectivity
- Serial ATA
- Operating voltage
- 5 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- ISY
- Category
- Internal Solid State Drive
- Model
- -NUC_SSD_MSATA_480
- Part number
- ISY-NUC_SSD_MSATA_480
- EAN / UPC
- 8055681881853
- Also known as
- ISY -NUC_SSD_MSATA_480 480 GB mSATA Serial ATA MLC
Specifications
26 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 480 GB |
| SSD form factor | mSATA |
| Interface | Serial ATA |
| Memory type | MLC |
| Security algorithms | 256-bit AES |
| Data transfer rate | 6 Gbit/s |
| Read speed | 540 MB/s |
| Write speed | 490 MB/s |
| Random read (4KB) | 41000 IOPS |
| Random write (4KB) | 80000 IOPS |
| Lithography | 20 nm |
| RAID support | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1200000 h |
| Windows operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
Packaging data
| Specification | Value |
|---|---|
| Package width | 140 mm |
| Package depth | 180 mm |
| Package height | 10 mm |
| Package weight | 250 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
Other features
| Specification | Value |
|---|---|
| Internal | Yes |
| Compliance certificates | RoHS |
