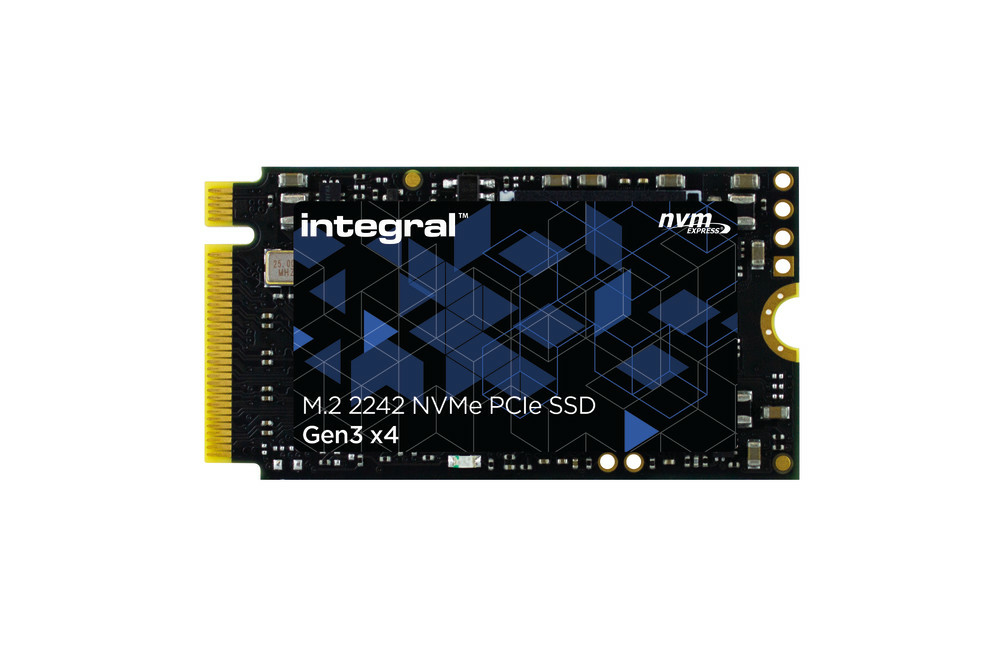

256 GB M.2 2242 NVMe Gen3 x 4PCIe SSD for WESTERN DIGITAL SDBPMPZ-256G and INSSD256GM2242G3
Model SDBPMPZ-256G-INEAN 5056103881843
29 specifications
- Storage256 GB
- ConnectivityPCI Express 3.0
- Weight3 g
- Operating voltage3.3 V
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 256 GB
- Connectivity
- PCI Express 3.0
- Weight
- 3 g
- Operating voltage
- 3.3 V
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Integral
- Category
- Internal Solid State Drive
- Model
- SDBPMPZ-256G-IN
- Part number
- SDBPMPZ-256G-IN
- EAN / UPC
- 5056103881843
- Also known as
- Integral 256 GB M.2 2242 NVMe Gen3 x 4PCIe SSD for WESTERN DIGITAL SDBPMPZ-256G and INSSD256GM2242G3
Specifications
29 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| Memory type | TLC |
| Component for | PC/Laptop |
| Hardware encryption | No |
| Read speed | 3000 MB/s |
| Write speed | 1200 MB/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1000000 h |
| Protection features | Shock resistant |
| TBW rating | 185 |
| Certification | CE, UKCA, FCC, RoHs |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (read) | 2.7 W |
| Power consumption (write) | 2.28 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 0.8 mm |
| Height | 42 mm |
| Weight | 3 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 102 mm |
| Package depth | 23 mm |
| Package height | 127 mm |
| Package weight | 43 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
