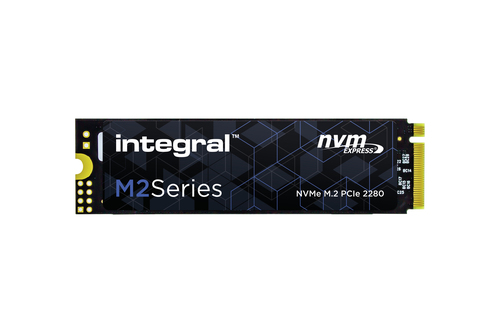

M2 Series M.2 2280 PCIe NVMe SSD
Model NSSD2TM280NM2XEAN 5055288449688
28 specifications
- Storage2 GB
- ConnectivityPCI Express 3.1
- Weight10 g
- Operating voltage3.3 V
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 2 GB
- Connectivity
- PCI Express 3.1
- Weight
- 10 g
- Operating voltage
- 3.3 V
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Integral
- Category
- Internal Solid State Drive
- Model
- NSSD2TM280NM2X
- Part number
- NSSD2TM280NM2X
- EAN / UPC
- 5055288449688
- Also known as
- Integral M2 Series M.2 2280 PCIe NVMe SSD
Specifications
28 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 2 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.1 |
| NVMe | Yes |
| Component for | PC/Laptop |
| Data transfer rate | 8 Gbit/s |
| Read speed | 3450 MB/s |
| Write speed | 3200 MB/s |
| Random read (4KB) | 290000 IOPS |
| Random write (4KB) | 280000 IOPS |
| Controller type | Phison PS3111-S11 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Certification | CE, FCC, UKCA |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (read) | 2.87 W |
| Power consumption (write) | 2.36 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.25 mm |
| Weight | 10 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 13.2 mm |
| Package depth | 5.7 mm |
| Package height | 11.5 mm |
| Package weight | 58 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating vibration | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
