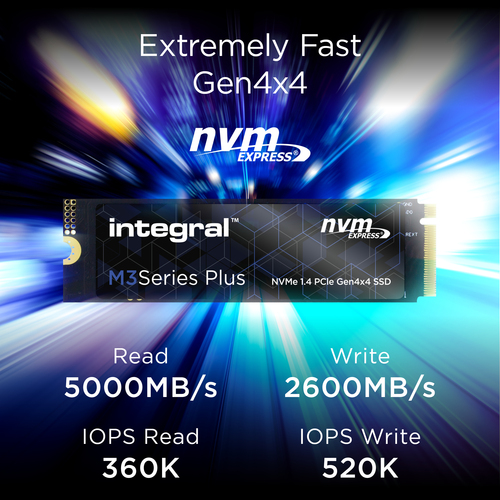

500GB SSD M.2 2280 NVME 1.4 PCIe Gen4 x4 R-5000MB/s W-2600MB/s IOPS R-360K W-520K TBW 220 M3 PLUS
Model INSSD500GM280NM3PEAN 5055288449381
27 specifications
- Storage500 GB
- ConnectivityPCI Express 4.0
- Operating voltage3.3 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 500 GB
- Connectivity
- PCI Express 4.0
- Operating voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Integral
- Category
- Internal Solid State Drive
- Model
- INSSD500GM280NM3P
- Part number
- INSSD500GM280NM3P
- EAN / UPC
- 5055288449381
- Also known as
- Integral 500GB SSD M.2 2280 NVME 1.4 PCIe Gen4 x4 R-5000MB/s W-2600MB/s IOPS R-360K W-520K TBW 220 M3 PLUS
Specifications
27 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | TLC |
| Component for | PC |
| Hardware encryption | No |
| Read speed | 5000 MB/s |
| Write speed | 2600 MB/s |
| Random read (4KB) | 360000 IOPS |
| Random write (4KB) | 520000 IOPS |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| Protection features | Shock resistant |
| TBW rating | 512 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (read) | 3.4 W |
| Power consumption (write) | 3.1 W |
Packaging data
| Specification | Value |
|---|---|
| Package width | 80 mm |
| Package depth | 22 mm |
| Package height | 2 mm |
| Package weight | 16 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
