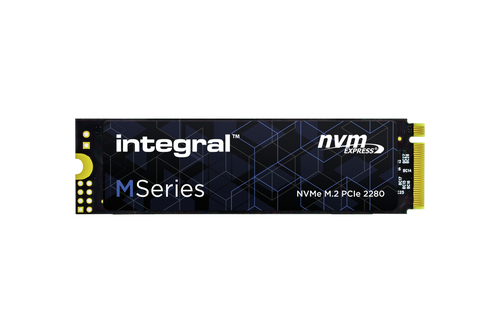

256GB SSD M.2 2280 NVME 1.2 PCIe Gen3x4 R-2000MB/s W-1200MB/s TLC TBW 128 M1
Model INSSD256GM280NM1EAN 5055288443365
35 specifications
- Storage256 GB
- ConnectivityPCI Express 3.1
- Weight10 g
- Operating voltage3.3 V
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 256 GB
- Connectivity
- PCI Express 3.1
- Weight
- 10 g
- Operating voltage
- 3.3 V
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Integral
- Category
- Internal Solid State Drive
- Model
- INSSD256GM280NM1
- Part number
- INSSD256GM280NM1
- EAN / UPC
- 5055288443365
- Also known as
- Integral 256GB SSD M.2 2280 NVME 1.2 PCIe Gen3x4 R-2000MB/s W-1200MB/s TLC TBW 128 M1
Specifications
35 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 256 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.1 |
| NVMe | Yes |
| NVMe version | 1.2 |
| Memory type | TLC |
| Component for | PC |
| Hardware encryption | No |
| Read speed | 2000 MB/s |
| Write speed | 1200 MB/s |
| Random read (4KB) | 179000 IOPS |
| Random write (4KB) | 140000 IOPS |
| Controller type | Phison E12 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 128 |
| Certification | CE, FCC |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (read) | 3.04 W |
| Power consumption (write) | 2.94 W |
| Power consumption (idle) | 0.69 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.25 mm |
| Weight | 10 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 57 mm |
| Package depth | 154 mm |
| Package height | 11 mm |
| Package weight | 16 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating vibration | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
