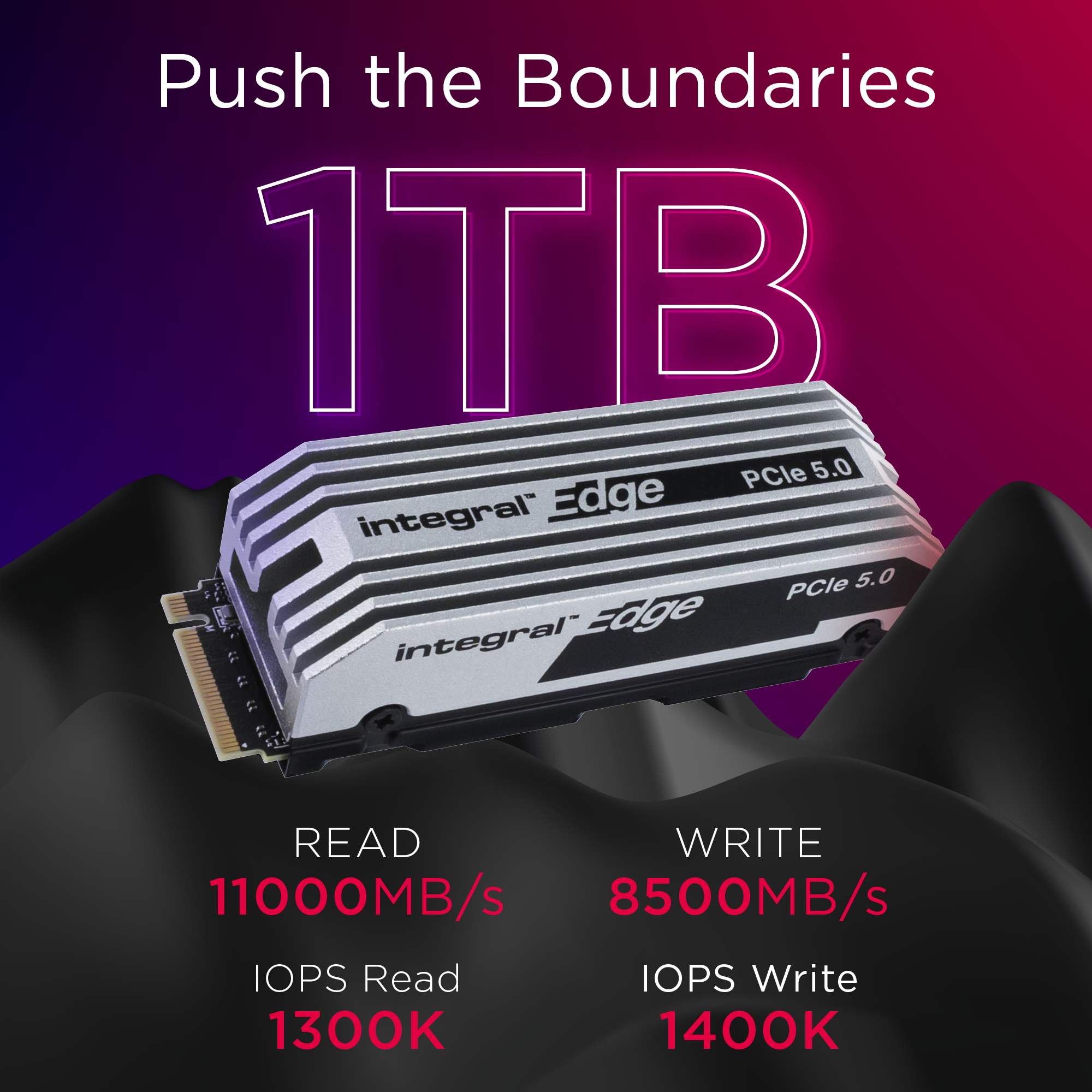

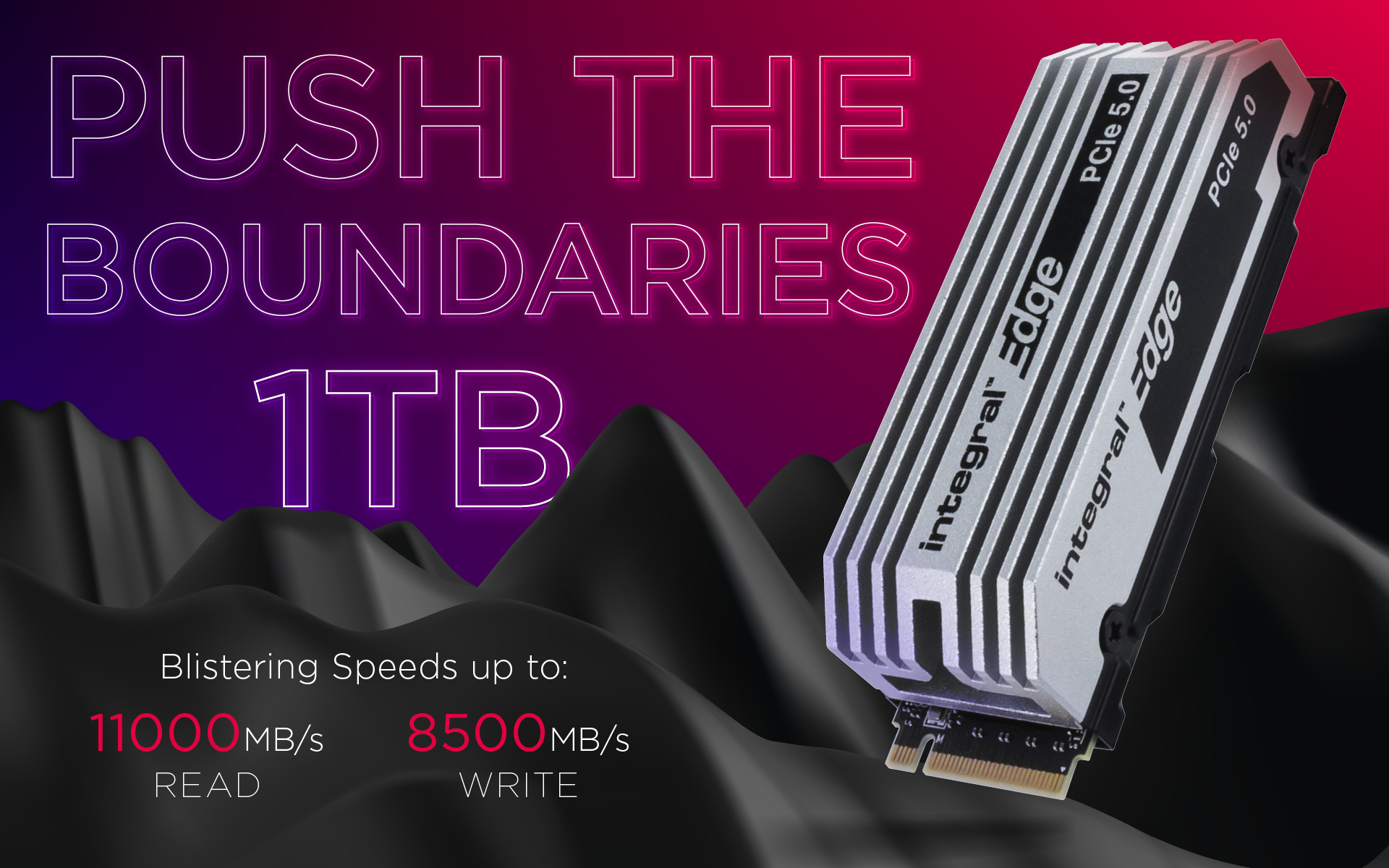

1TB - 1000GB SSD M.2 2280 NVME 2.0 PCIe Gen5 x4 R-11000MB/s W-8500MB/s IOPS R-1300K W-1400K TLC TBW 700 WITH HEATSINK EDGE
Model INSSD1TM2280G5EDGEHSXEAN 5055288449893
25 specifications
- Storage1 TB
- ConnectivityPCI Express 5.0
- Operating voltage3.47 V
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express 5.0
- Operating voltage
- 3.47 V
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Integral
- Category
- Internal Solid State Drive
- Model
- INSSD1TM2280G5EDGEHSX
- Part number
- INSSD1TM2280G5EDGEHSX
- EAN / UPC
- 5055288449893
- Also known as
- Integral 1TB - 1000GB SSD M.2 2280 NVME 2.0 PCIe Gen5 x4 R-11000MB/s W-8500MB/s IOPS R-1300K W-1400K TLC TBW 700 WITH HEATSINK EDGE
Specifications
25 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| Memory type | TLC |
| Component for | PC |
| Read speed | 11000 MB/s |
| Write speed | 8500 MB/s |
| Random read (4KB) | 1300000 IOPS |
| Random write (4KB) | 1400000 IOPS |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1600000 h |
| TBW rating | 700 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.47 V |
| Power consumption (read) | 11 W |
| Power consumption (write) | 11 W |
Packaging data
| Specification | Value |
|---|---|
| Package width | 22 mm |
| Package depth | 80 mm |
| Package height | 10 mm |
| Package weight | 130 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, UKCA |
