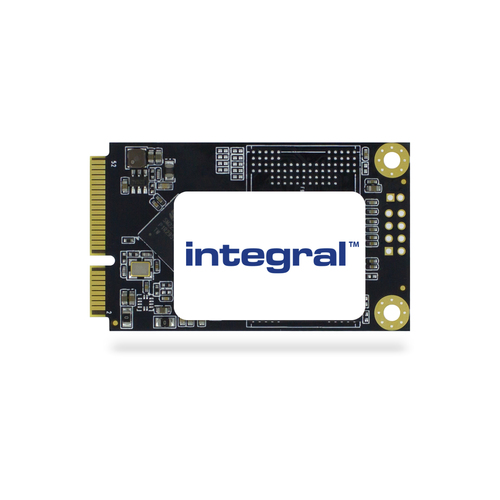

128GB SSD MSATA MO-300 SATA 3 R-480MB/s W-400MB/s TBW 35
Model INSSD128GMSAEAN 5055288444904
26 specifications
- Storage128 GB
- ConnectivitySerial ATA III
- Weight8 g
- Width29.9 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 128 GB
- Connectivity
- Serial ATA III
- Weight
- 8 g
- Width
- 29.9 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Integral
- Category
- Internal Solid State Drive
- Model
- INSSD128GMSA
- Part number
- INSSD128GMSA
- EAN / UPC
- 5055288444904, 5715328167568
- Also known as
- Integral 128GB SSD MSATA MO-300 SATA 3 R-480MB/s W-400MB/s TBW 35
Specifications
26 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 128 GB |
| SSD form factor | mSATA |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | TLC |
| Hardware encryption | No |
| Read speed | 480 MB/s |
| Write speed | 400 MB/s |
| Controller type | SMI SM2258XT |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 50 |
| Certification | CE, FCC, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 29.9 mm |
| Depth | 50.8 mm |
| Height | 3.45 mm |
| Weight | 8 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 51 mm |
| Package depth | 30 mm |
| Package height | 3 mm |
| Package weight | 15 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
