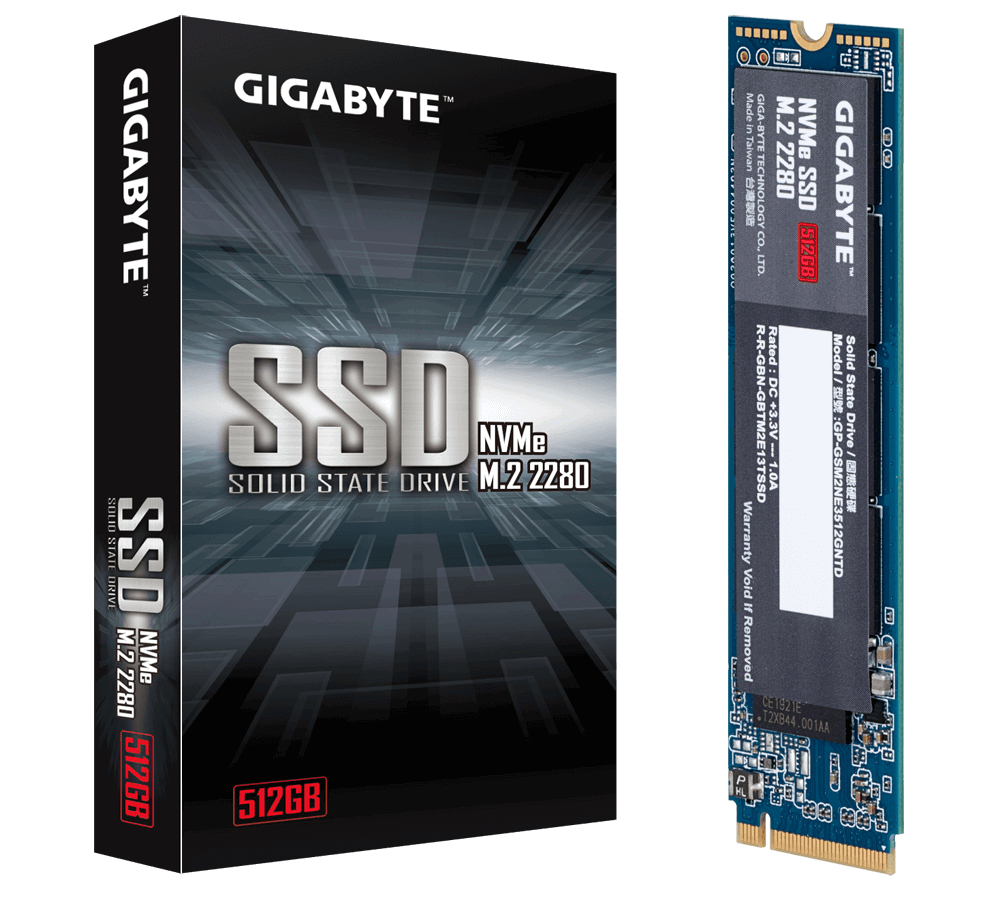

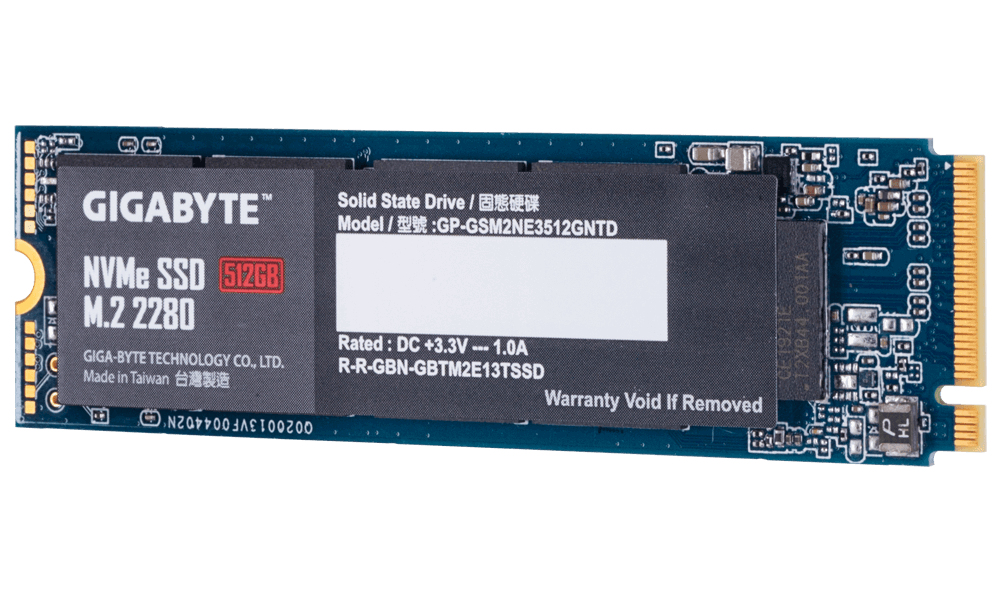

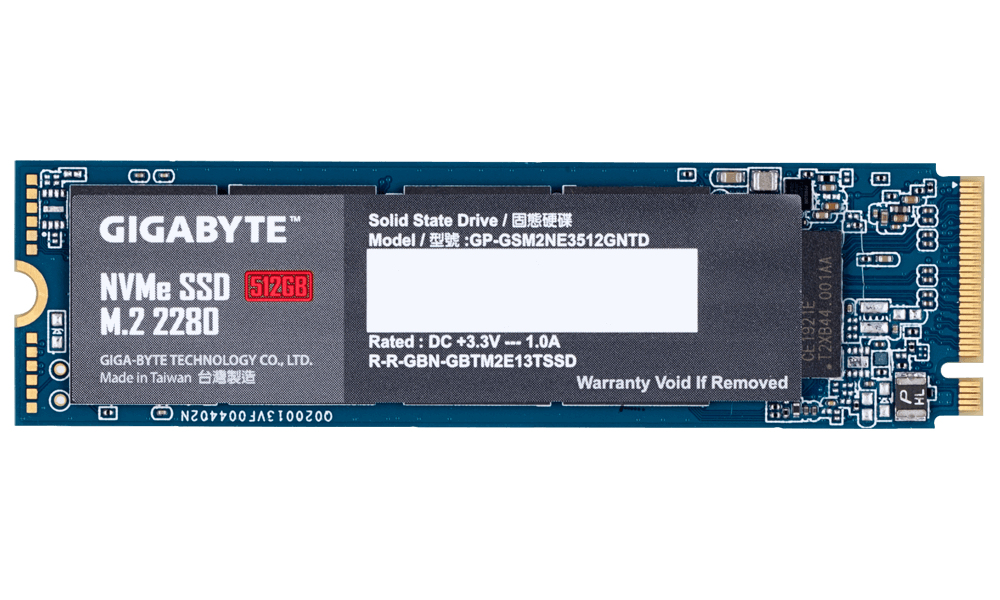

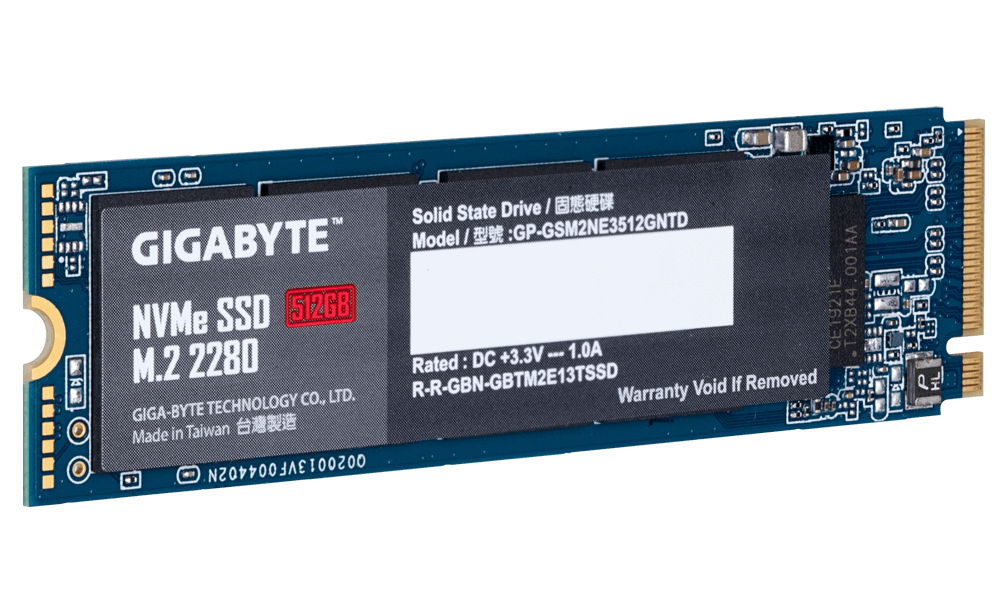

GP-GSM2NE3512GNTD internal solid state drive
512 GB M.2 PCI Express 3.0 NVMe
Model GP-GSM2NE3512GNTDEAN 889523019368
24 specifications
- Storage512 GB
- ConnectivityPCI Express 3.0
- Power consumption (read)3.3 W
- Width80 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 512 GB
- Connectivity
- PCI Express 3.0
- Power consumption (read)
- 3.3 W
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- GIGABYTE
- Category
- Internal Solid State Drive
- Model
- GP-GSM2NE3512GNTD
- Part number
- GP-GSM2NE3512GNTD
- EAN / UPC
- 889523019368, 4719331806880
- Also known as
- GIGABYTE GP-GSM2NE3512GNTD internal solid state drive 512 GB M.2 PCI Express 3.0 NVMe
Specifications
24 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| NVMe version | 1.3 |
| Component for | PC/Laptop |
| Read speed | 1700 MB/s |
| Write speed | 1550 MB/s |
| Random read (4KB) | 27000 IOPS |
| Random write (4KB) | 34000 IOPS |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 800 |
Power
| Specification | Value |
|---|---|
| Power consumption (read) | 3.3 W |
| Power consumption (write) | 2.8 W |
| Power consumption (idle) | 0.0018 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 22 mm |
| Height | 2.3 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
