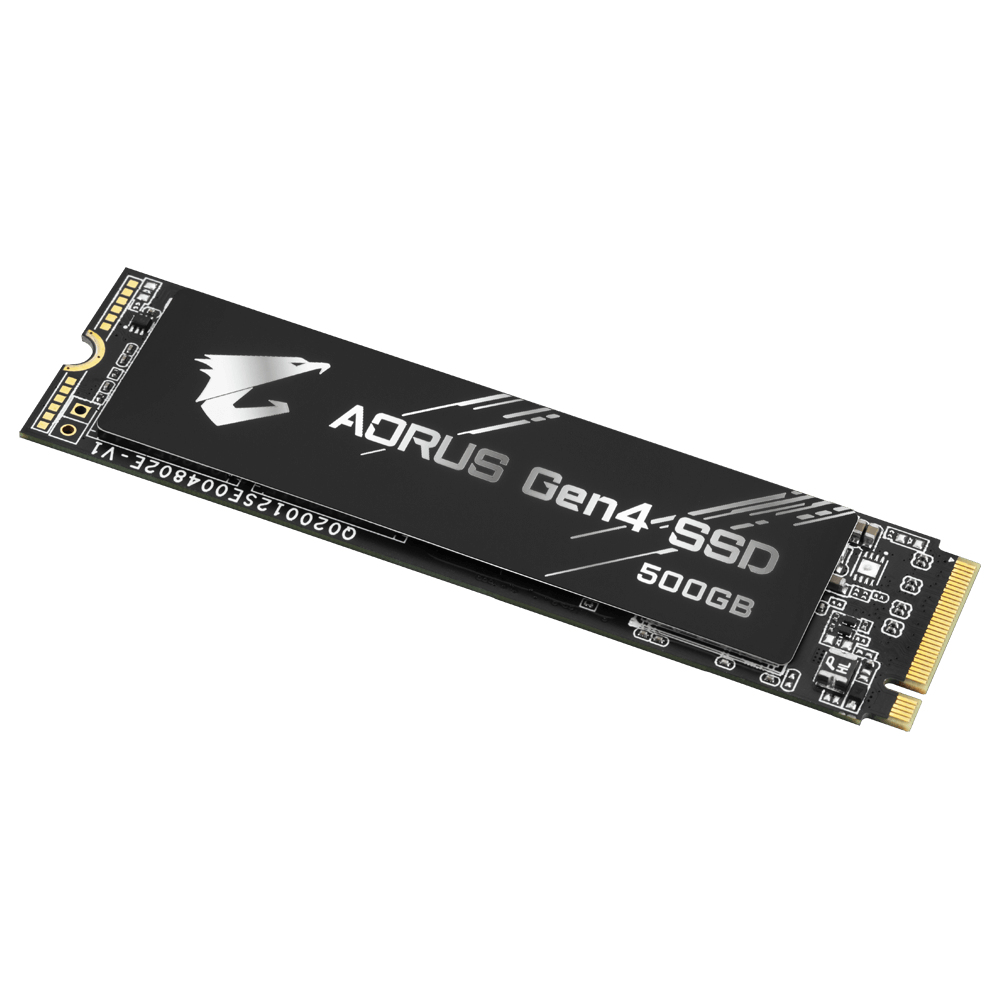

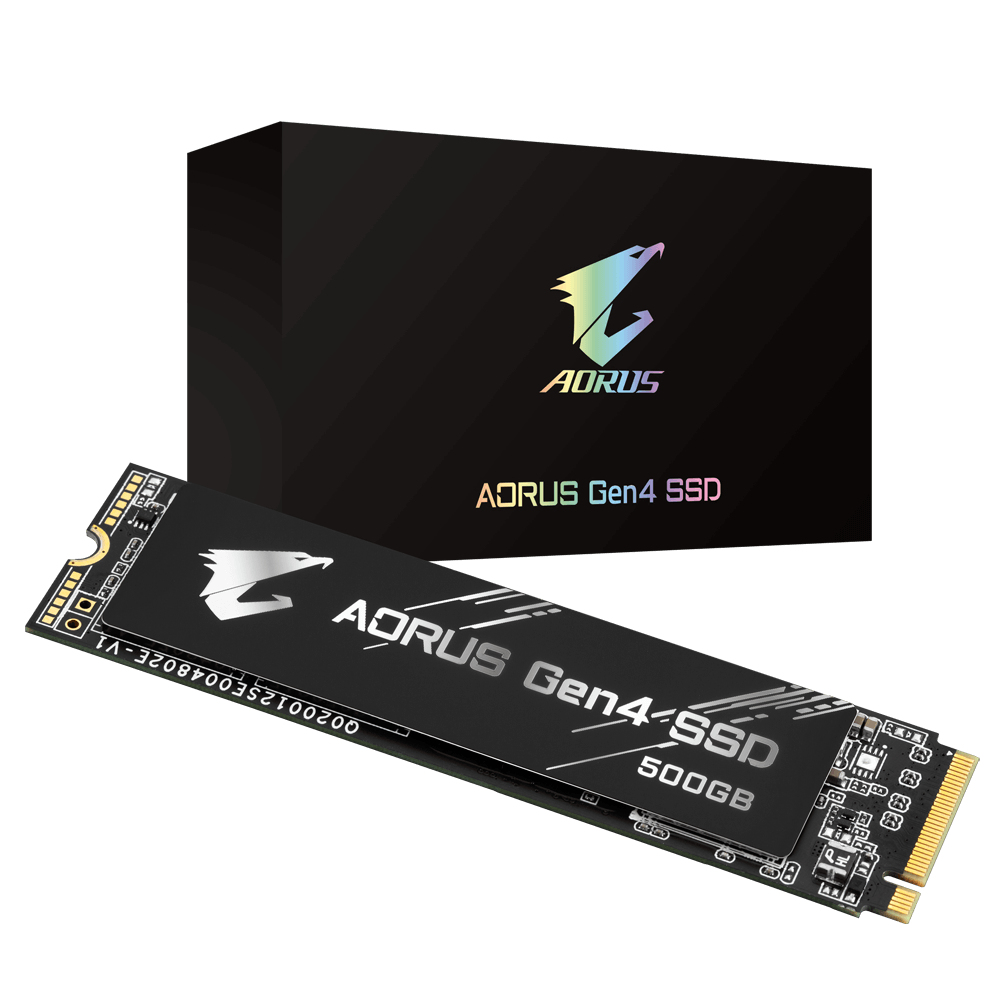

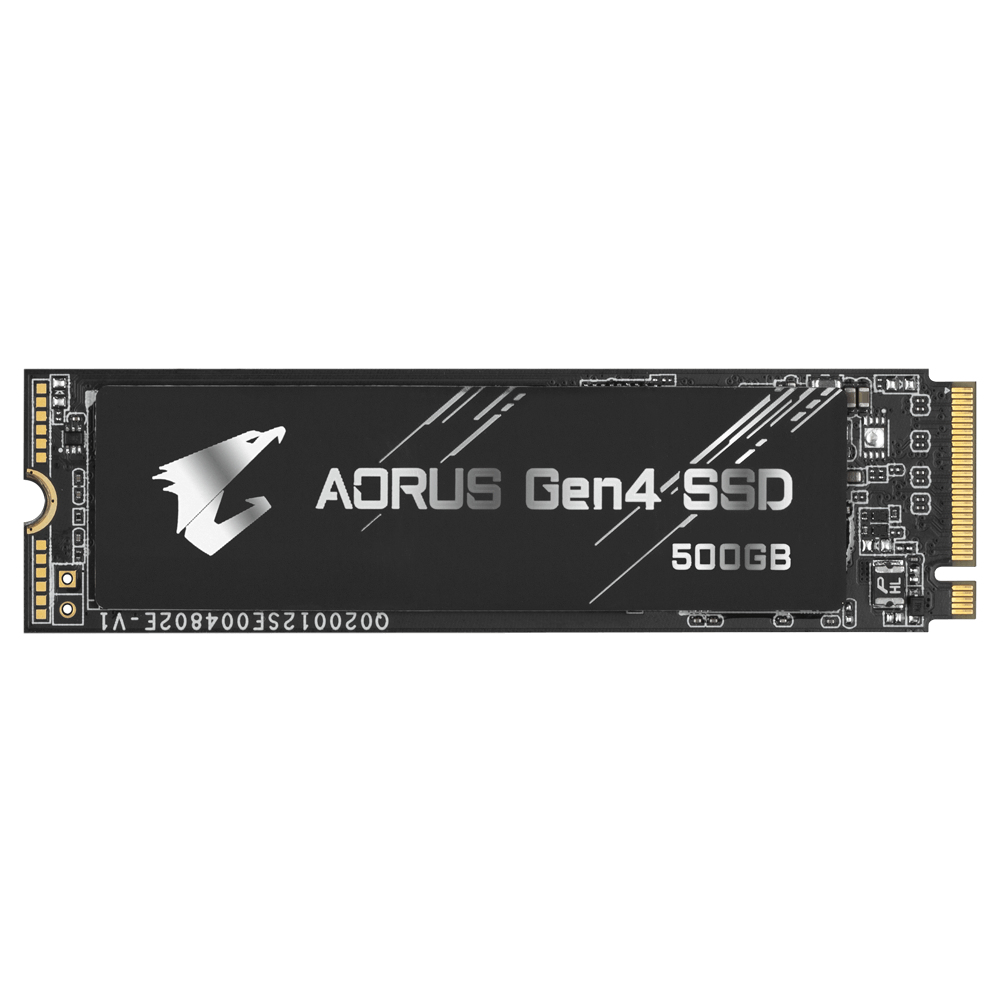

GP-AG4500G internal solid state drive
500 GB M.2 PCI Express 4.0 NVMe 3D TLC NAND
Model GP-AG4500GEAN 889523023754
26 specifications
- Storage500 GB
- ConnectivityPCI Express 4.0
- Average power consumption (read)5.9 W
- Width80.5 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 500 GB
- Connectivity
- PCI Express 4.0
- Average power consumption (read)
- 5.9 W
- Width
- 80.5 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- GIGABYTE
- Category
- Internal Solid State Drive
- Model
- GP-AG4500G
- Part number
- GP-AG4500G
- EAN / UPC
- 889523023754, 4719331809355
- Also known as
- GIGABYTE GP-AG4500G internal solid state drive 500 GB M.2 PCI Express 4.0 NVMe 3D TLC NAND
Specifications
26 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.3 |
| Memory type | 3D TLC NAND |
| Component for | PC |
| Hardware encryption | No |
| Read speed | 5000 MB/s |
| Write speed | 2500 MB/s |
| Random read (4KB) | 400000 IOPS |
| Random write (4KB) | 550000 IOPS |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1770000 h |
| TBW rating | 850 |
Power
| Specification | Value |
|---|---|
| Average power consumption (read) | 5.9 W |
| Average power consumption (write) | 4.5 W |
| Power consumption (idle) | 0.01321 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80.5 mm |
| Depth | 23.5 mm |
| Height | 11.4 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
