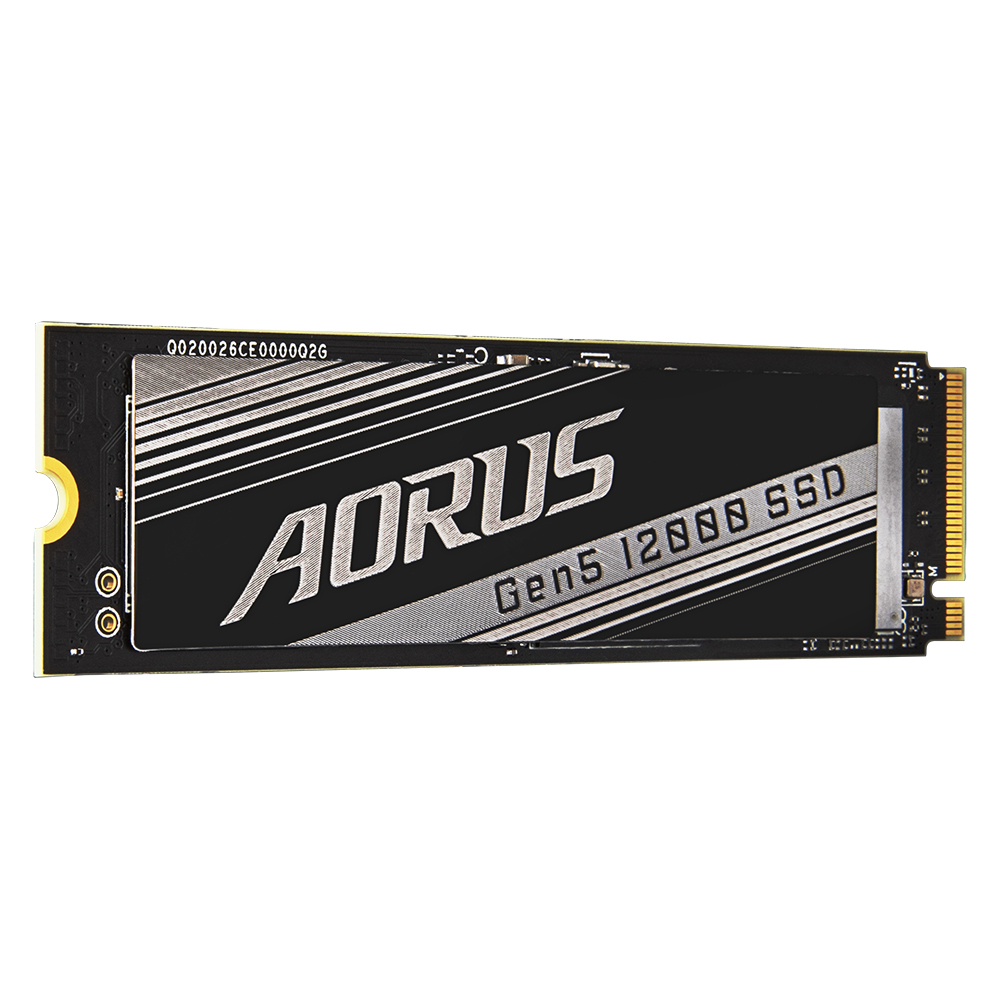

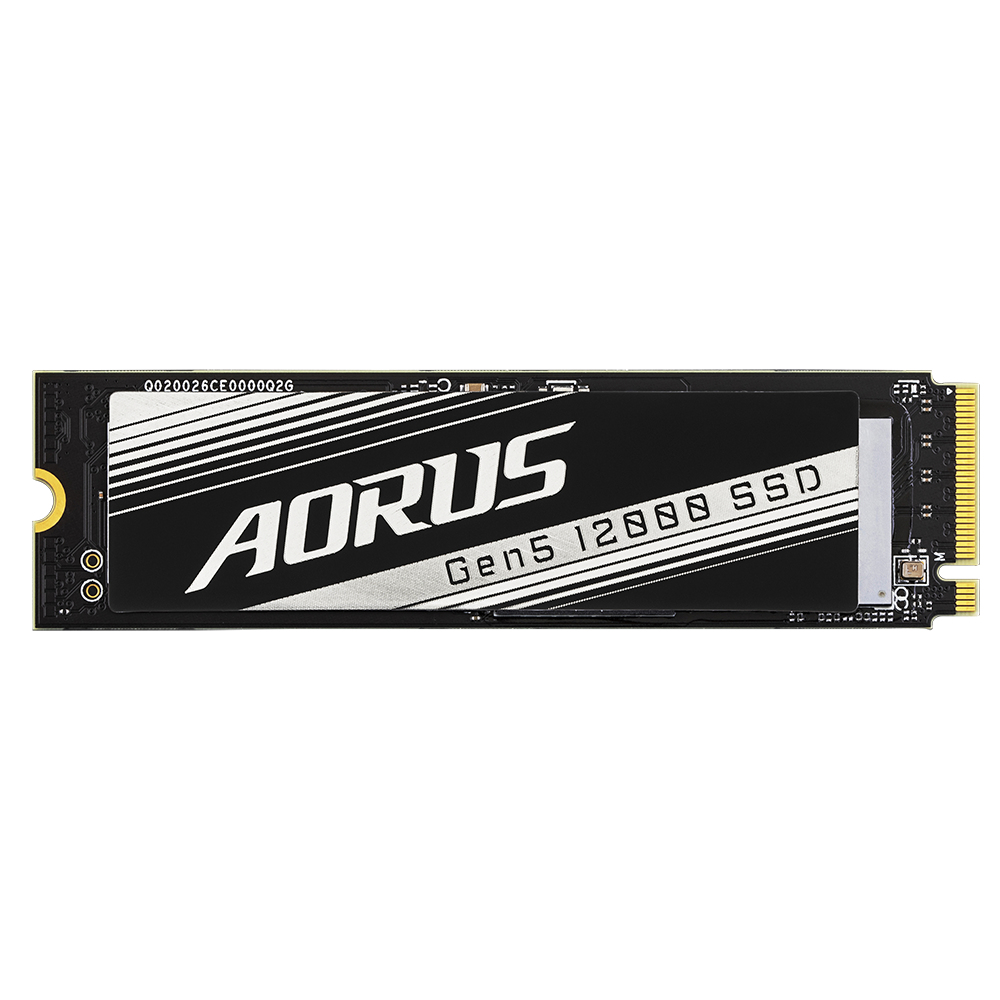

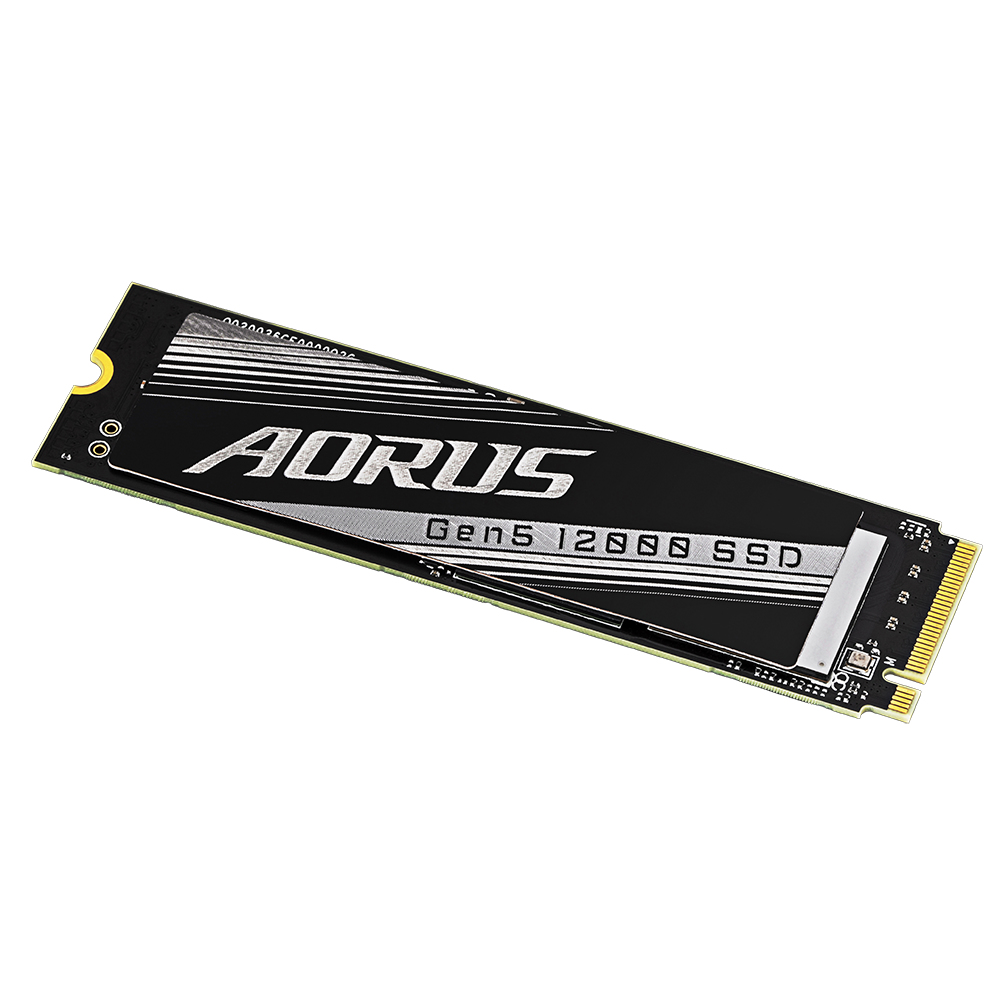

AORUS Gen5 12000
Model AORUS Gen5 12000Part no. AG512K2TBEAN 889523038680
28 specifications
- Storage1 TB
- ConnectivityPCI Express 5.0
- Power consumption (max)11 W
- Width23.5 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express 5.0
- Power consumption (max)
- 11 W
- Width
- 23.5 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- GIGABYTE
- Category
- Internal Solid State Drive
- Model
- AORUS Gen5 12000
- Part numbers
- AG512K2TB, AG512K1TB
- EAN / UPC
- 889523038680, 889523038673, 4719331855949, 4719331855956
- Also known as
- GIGABYTE AORUS Gen5 12000 1 TB M.2 PCI Express 5.0 NVMe 3D TLC NAND
Specifications
28 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| NVMe version | 2.0 |
| Memory type | 3D TLC NAND |
| Component for | PC |
| Hardware encryption | No |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 11700 MB/s |
| Write speed | 9500 MB/s |
| Controller type | Phison PS5026-E26 |
| Lithography | 12 nm |
| PCI Express interface data lanes | x4 |
| External DDR cache | Yes |
| External DDR cache quantity | 2048 MB |
| Mean time between failures (MTBF) | 1600000 h |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| TBW rating | 700 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 11 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 23.5 mm |
| Depth | 92 mm |
| Height | 44.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Quick start guide | Yes |

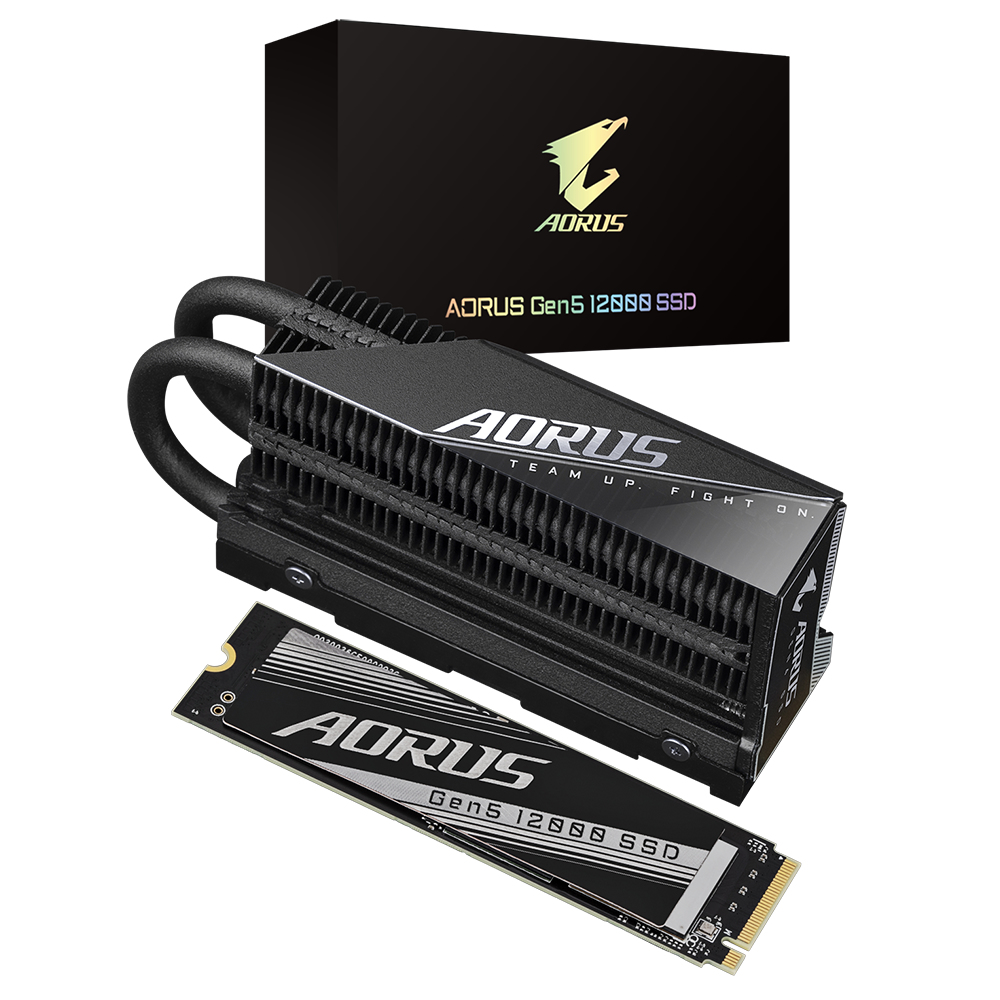

| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Other features
| Specification | Value |
|---|---|

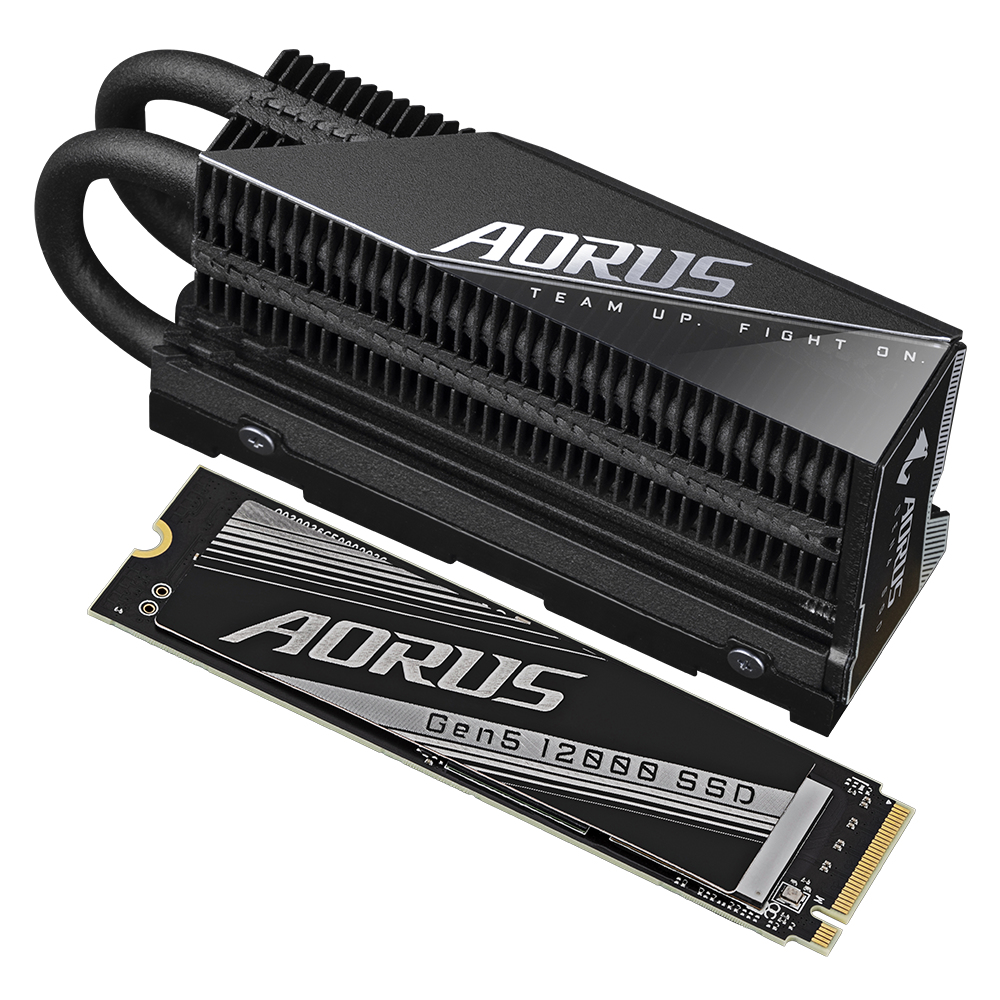

| Cooling type | Heatsink |
