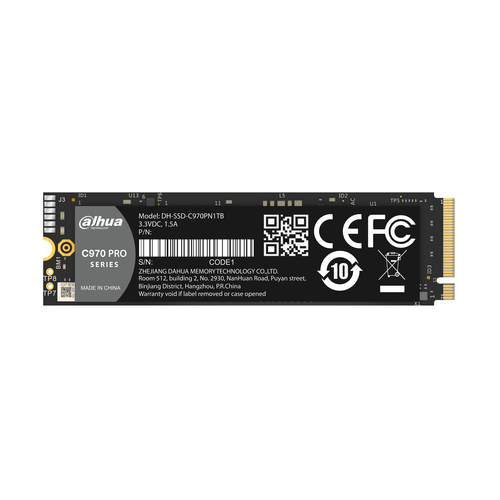

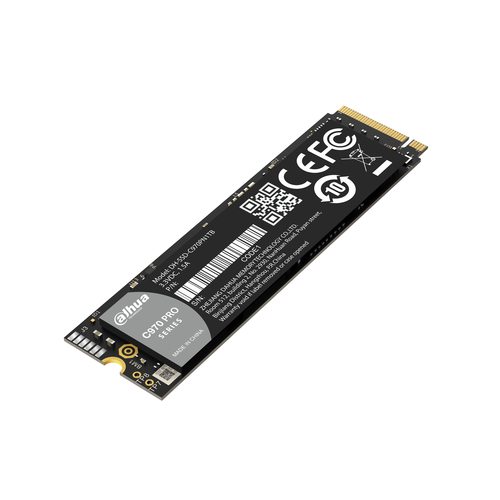

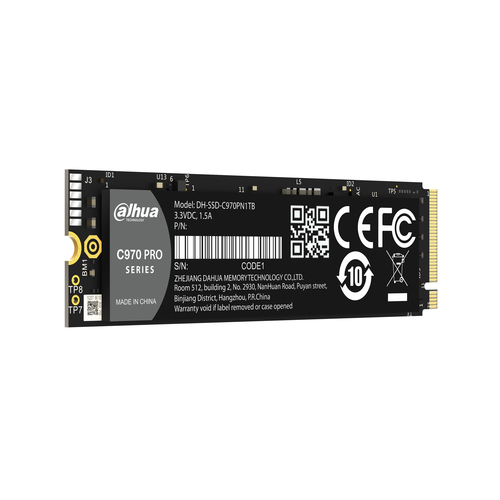

SSD-C970PN1TB
1 TB M.2 PCI Express 4.0 NVMe 3D TLC
Model SSD-C970PN1TBPart no. DHI-SSD-C970PN1TB
30 specifications
- Storage1 TB
- ConnectivityPCI Express 4.0
- Weight8 g
- Power consumption (max)5.97 W
- Width80 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express 4.0
- Weight
- 8 g
- Power consumption (max)
- 5.97 W
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Dahua Technology
- Category
- Internal Solid State Drive
- Model
- SSD-C970PN1TB
- Part number
- DHI-SSD-C970PN1TB
- Also known as
- Dahua Technology SSD-C970PN1TB 1 TB M.2 PCI Express 4.0 NVMe 3D TLC
Specifications
30 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Memory type | 3D TLC |
| Component for | PC |
| Hardware encryption | No |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Random read (4KB) | 844000 IOPS |
| Random write (4KB) | 940000 IOPS |
| Sequential read speed (ATTO) | 7400 MB/s |
| Sequential write speed (ATTO) | 5200 MB/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 500 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 5.97 W |
| Power consumption (average) | 1.88 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 220 mm |
| Height | 3.6 mm |
| Weight | 8 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 140.5 mm |
| Package depth | 105.5 mm |
| Package height | 15.5 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Vibration resistance | 2.4 G |
