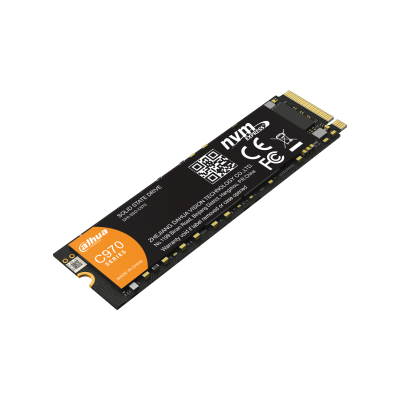

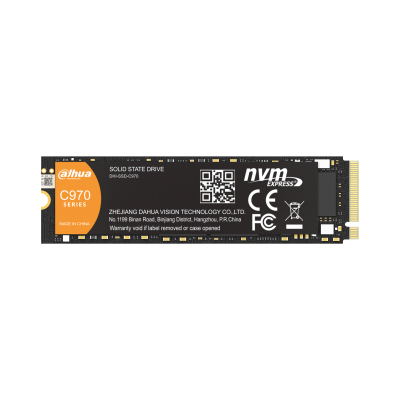

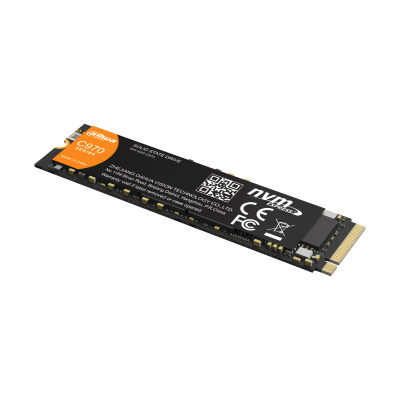

Dahua Technology DHI-SSD-C970N256G internal solid state drive

Dahua Technology

DHI-SSD-C970N256G internal solid state drive

256 GB M.2 PCI Express 4.0 NVMe 3D NAND

Model DHI-SSD-C970N256GEAN 6923172545060

35 specifications

Storage256 GB
ConnectivityPCI Express 4.0
Weight8 g
Power consumption (max)3.25 W
Width80 mm
Operating temperature (T-T)0 - 70 °C

See all specifications

Overview

Storage: 256 GB
Connectivity: PCI Express 4.0
Weight: 8 g
Power consumption (max): 3.25 W
Width: 80 mm
Operating temperature (T-T): 0 - 70 °C

Brand: Dahua Technology
Category: Internal Solid State Drive
Model: DHI-SSD-C970N256G
Part number: DHI-SSD-C970N256G
EAN / UPC: 6923172545060
Also known as: Dahua Technology DHI-SSD-C970N256G internal solid state drive 256 GB M.2 PCI Express 4.0 NVMe 3D NAND

Specifications

35 specifications in 7 groups

Features

Specification	Value
SSD capacity	256 GB
SSD form factor	M.2
Interface	PCI Express 4.0
NVMe	Yes
NVMe version	1.4
Memory type	3D NAND
Component for	PC
Hardware encryption	No
Read speed	4600 MB/s
Write speed	1400 MB/s
Random read (4KB)	205000 IOPS
Random write (4KB)	310000 IOPS
S.M.A.R.T. support	Yes
TRIM support	Yes
Mean time between failures (MTBF)	1500000 h
TBW rating	500

Power

Specification	Value
Power consumption (max)	3.25 W
Power consumption (idle)	1.45 W

Weight & dimensions

Specification	Value
Width	80 mm
Depth	22 mm
Height	2.25 mm
Weight	8 g

Packaging data

Specification	Value
Package width	140.5 mm
Package depth	105.5 mm
Package height	15.5 mm

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Maximum operating temperature	70 °C
Minimum operating temperature	0 °C
Operating relative humidity (H-H)	5 - 95%
Operating vibration	3.08 G
Operating shock	1500 G

Sustainability

Specification	Value
Sustainability compliance	Yes

Other features

Specification	Value
Compliance certificates	CE, Federal Communications Commission (FCC), WEEE
Warranty period	3 year(s)
