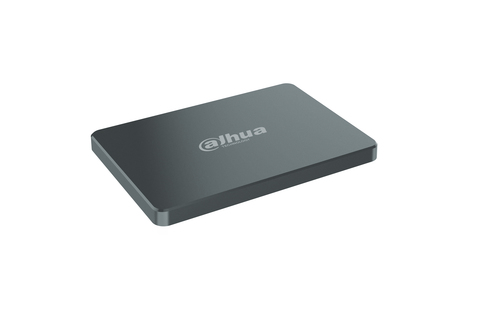

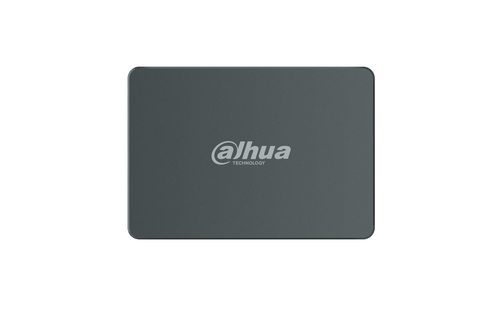

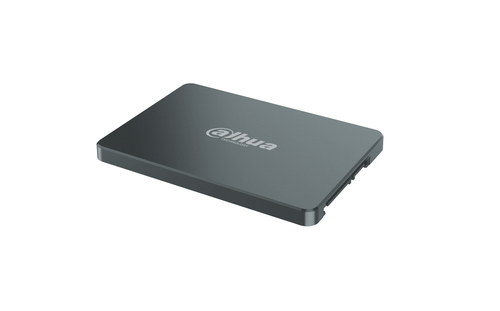

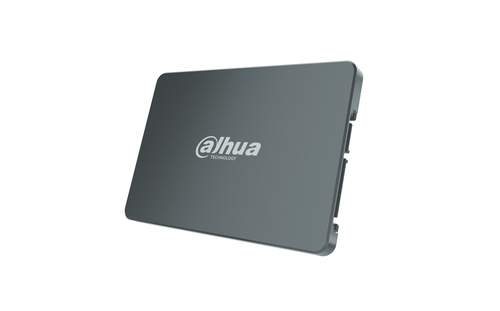

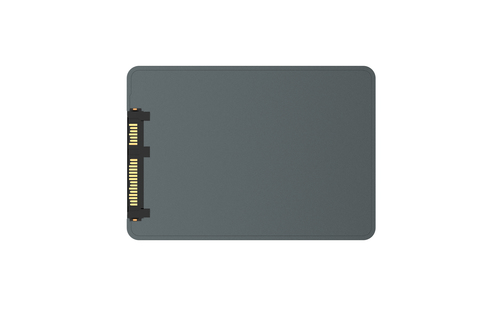

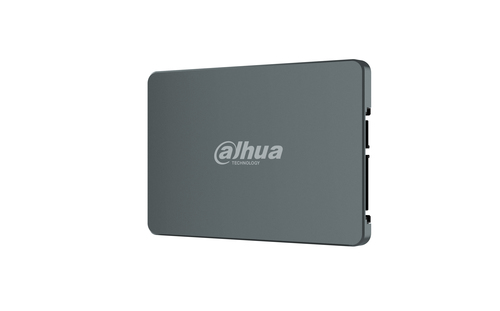

1TB 2.5 inch SATA SSD
Model DHI-SSD-C800APart no. DHI-SSD-C800AS1TBEAN 6923172586483
28 specifications
- Storage1 TB
- ConnectivitySerial ATA III
- Weight40 g
- Power consumption (max)1.96 W
- Width69.9 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- Serial ATA III
- Weight
- 40 g
- Power consumption (max)
- 1.96 W
- Width
- 69.9 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Dahua Technology
- Category
- Internal Solid State Drive
- Model
- DHI-SSD-C800A
- Part number
- DHI-SSD-C800AS1TB
- EAN / UPC
- 6923172586483
- Also known as
- Dahua Technology 1TB 2.5 inch SATA SSD
Specifications
28 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D NAND |
| Component for | PC |
| Hardware encryption | No |
| Data transfer rate | 6 Gbit/s |
| Sequential read speed (ATTO) | 550 MB/s |
| Sequential write speed (ATTO) | 500 MB/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Native Command Queuing (NCQ) | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 400 |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 1.96 W |
| Power consumption (idle) | 0.84 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69.9 mm |
| Depth | 100.2 mm |
| Height | 7 mm |
| Weight | 40 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 105.5 mm |
| Package depth | 140.5 mm |
| Package height | 15.5 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Vibration resistance | 0.5 G |
