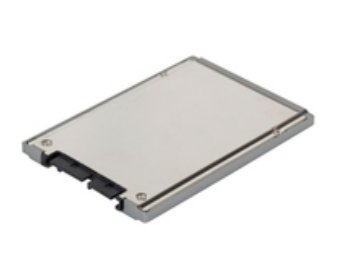

MSPK-SF12-M240 internal solid state drive
240 GB 1.8" micro SATA MLC
Model MSPK-SF12-M240EAN 5711045296055
24 specifications
- Storage240 GB
- Connectivitymicro SATA
- Weight37 g
- Operating voltage5 V
- Width54.4 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 240 GB
- Connectivity
- micro SATA
- Weight
- 37 g
- Operating voltage
- 5 V
- Width
- 54.4 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- CoreParts
- Category
- Internal Solid State Drive
- Model
- MSPK-SF12-M240
- Part number
- MSPK-SF12-M240
- EAN / UPC
- 5711045296055
- Also known as
- CoreParts MSPK-SF12-M240 internal solid state drive 240 GB 1.8" micro SATA MLC
Specifications
24 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 240 GB |
| SSD form factor | 1.8" |
| Interface | micro SATA |
| Memory type | MLC |
| Read speed | 275 MB/s |
| Write speed | 266 MB/s |
| Access time | 0.1 ms |
| TRIM support | Yes |
| ECC | Yes |
| Data retention | 10 year(s) |
| Mean time between failures (MTBF) | 2000000 h |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (read) | 2 W |
| Power consumption (write) | 2 W |
| Power consumption (idle) | 0.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 54.4 mm |
| Depth | 78.3 mm |
| Height | 5 mm |
| Weight | 37 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Other features
| Specification | Value |
|---|---|
| Internal | Yes |
| Compatible products | HP/Compaq Business Notebook 2530P, 2730P HP/Compaq EliteBook 2530P, 2730P IBM/Lenovo ThinkPad T510 4314-xxx, T510 4384-xxx, W510 4319-xxx, X300 6476, 6477, 6478-xxx, X301 2774, 2776, 2777-xxx Lenovo/IBM ThinkPad T410s 2912 |
