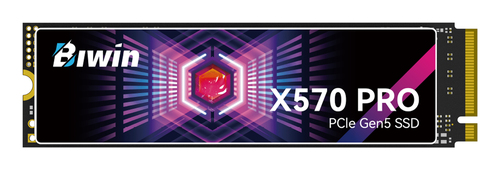

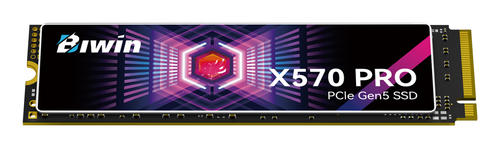

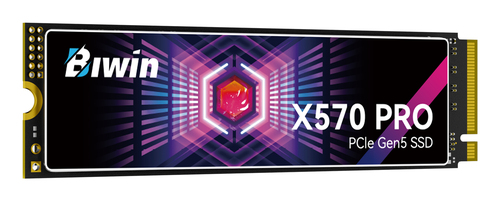

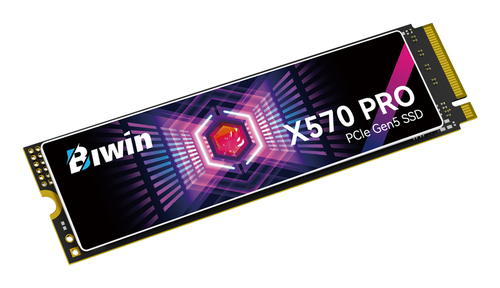

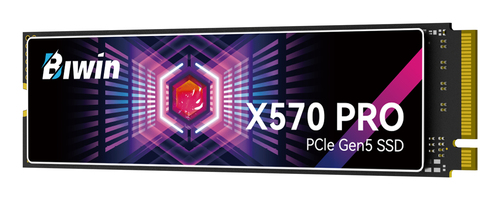

X570 Pro 2TB PCIe NVMe GEN5 14k MB/s
Model X570ProPart no. BX570DN04TB-RGXEAN 6955914627390
25 specifications
- Storage2 TB
- ConnectivityPCI Express 5.0
- Weight9 g
- Width80 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 2 TB
- Connectivity
- PCI Express 5.0
- Weight
- 9 g
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Biwin
- Category
- Internal Solid State Drive
- Model
- X570Pro
- Part numbers
- BX570DN04TB-RGX, BX570DN02TB-RGX, BX570DN01TB-RGX
- EAN / UPC
- 6955914627390, 887184025346, 6955914627383, 887184025339 +2 more
- Also known as
- Biwin X570 Pro 2TB PCIe NVMe GEN5 14k MB/s
Specifications
25 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| NVMe version | 2.0 |
| Component for | PC |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 14000 MB/s |
| Write speed | 13000 MB/s |
| Random read (4KB) | 2000000 IOPS |
| Random write (4KB) | 1600000 IOPS |
| PCI Express interface data lanes | x4 |
| External DDR cache | Yes |
| External DDR cache quantity | 2000 MB |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 1500 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 22 mm |
| Height | 2.5 mm |
| Weight | 9 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), KCC, RCM, RoHS, UKCA, VCCI |
| Warranty period | 5 year(s) |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
