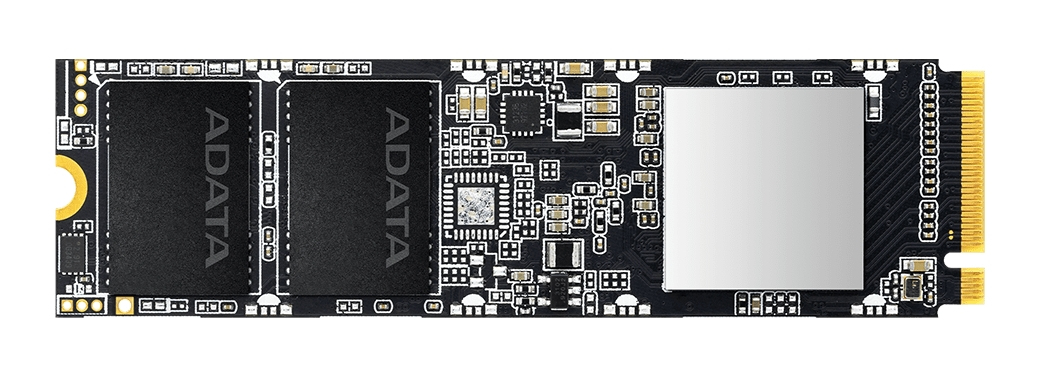

SX8100 512 GB M.2 PCI Express 3.0 NVMe 3D TLC NAND
Model SX8100Part no. ASX8100NP-512GT-CEAN 842243020533
34 specifications
- Storage512 GB
- ConnectivityPCI Express 3.0
- Weight8 g
- Power consumption (sleep)0.14 W
- Brand specific technologiesSLC Caching
- Width80 mm
Overview
- Storage
- 512 GB
- Connectivity
- PCI Express 3.0
- Weight
- 8 g
- Power consumption (sleep)
- 0.14 W
- Brand specific technologies
- SLC Caching
- Width
- 80 mm
- Brand
- ADATA
- Category
- Internal Solid State Drive
- Model
- SX8100
- Part number
- ASX8100NP-512GT-C
- EAN / UPC
- 842243020533, 4710273773698
- Also known as
- ADATA SX8100 512 GB M.2 PCI Express 3.0 NVMe 3D TLC NAND
Specifications
34 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| NVMe version | 1.3 |
| Memory type | 3D TLC NAND |
| NAND flash type | TLC (Triple Level Cell) |
| Component for | PC |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Random read (4KB) | 300000 IOPS |
| Random write (4KB) | 240000 IOPS |
| Sequential read speed (ATTO) | 3500 MB/s |
| Sequential write speed (ATTO) | 1900 MB/s |
| Sequential read speed (CDM) | 3500 MB/s |
| Sequential write speed (CDM) | 2400 MB/s |
| Sequential read speed (AS SSD) | 2950 MB/s |
| Sequential write speed (AS SSD) | 1600 MB/s |
| ECC | Yes |
| Low-density parity-check (LDPC) | Yes |
| TBW rating | 320 |
| Certification | CE, FCC, BSMI, RCM, KC, Morocco |
Power
| Specification | Value |
|---|---|
| Power consumption (sleep) | 0.14 W |
Brand-specific features
| Specification | Value |
|---|---|
| Brand specific technologies | SLC Caching |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 22 mm |
| Height | 3.5 mm |
| Weight | 8 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Power consumption | 0.33 W |
