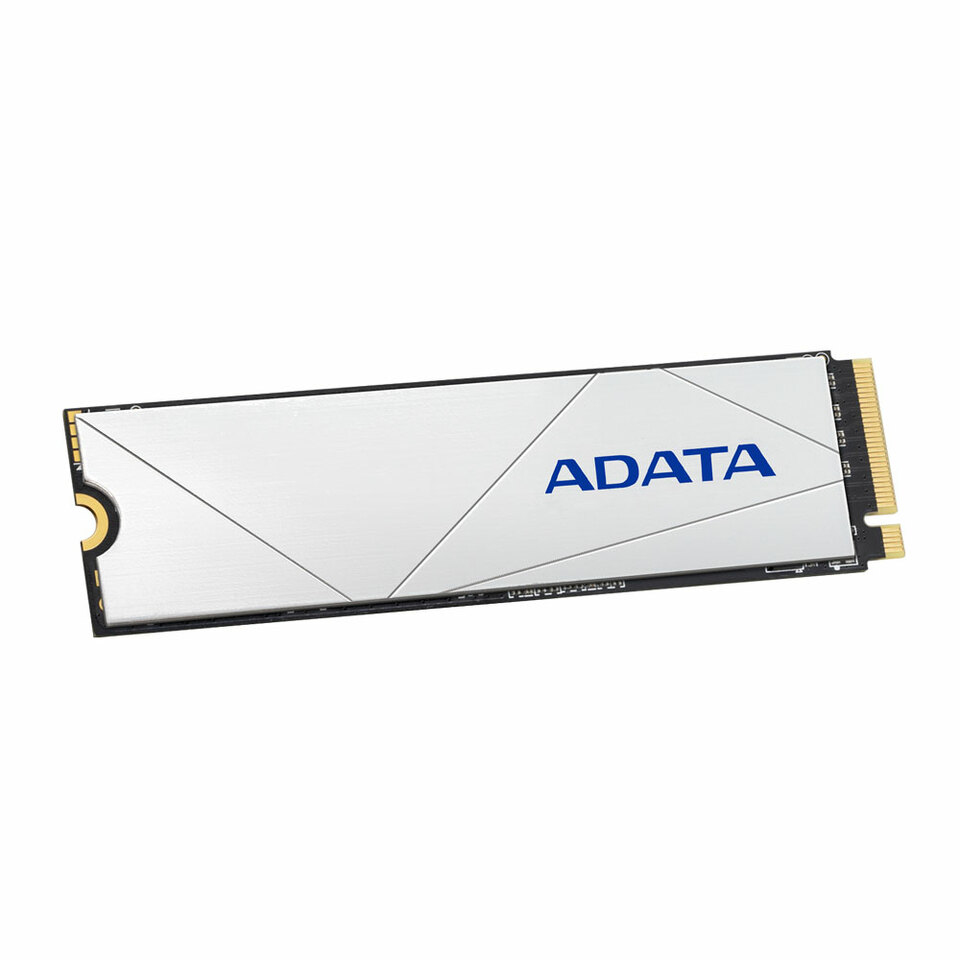

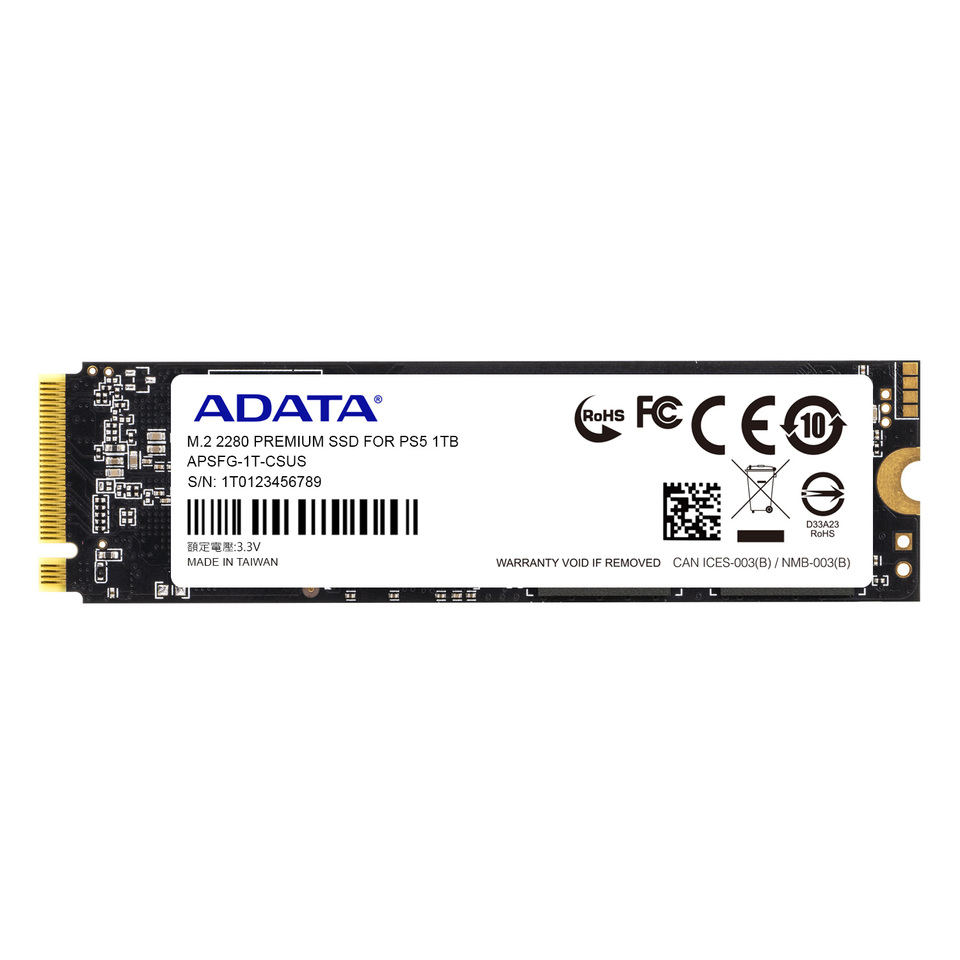

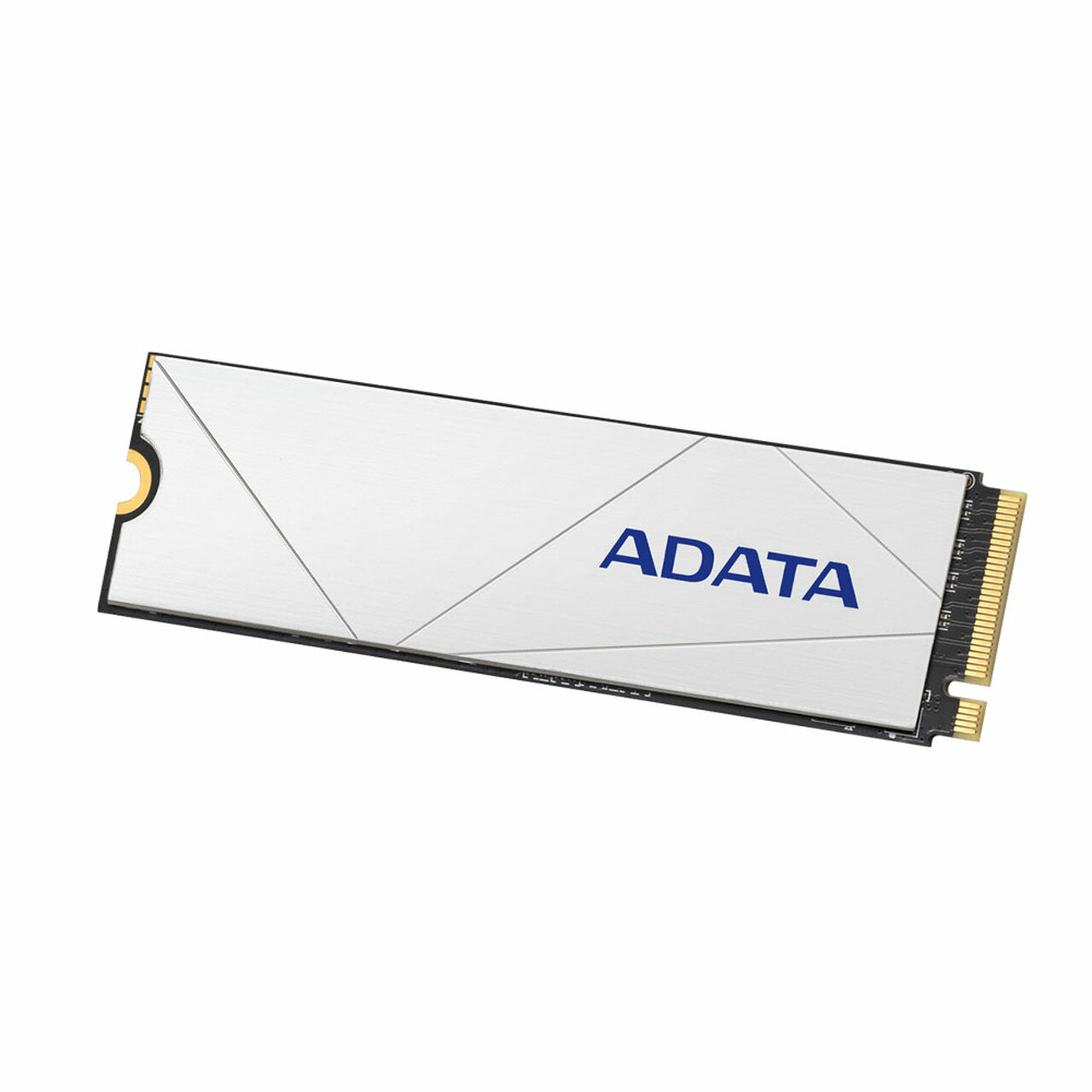

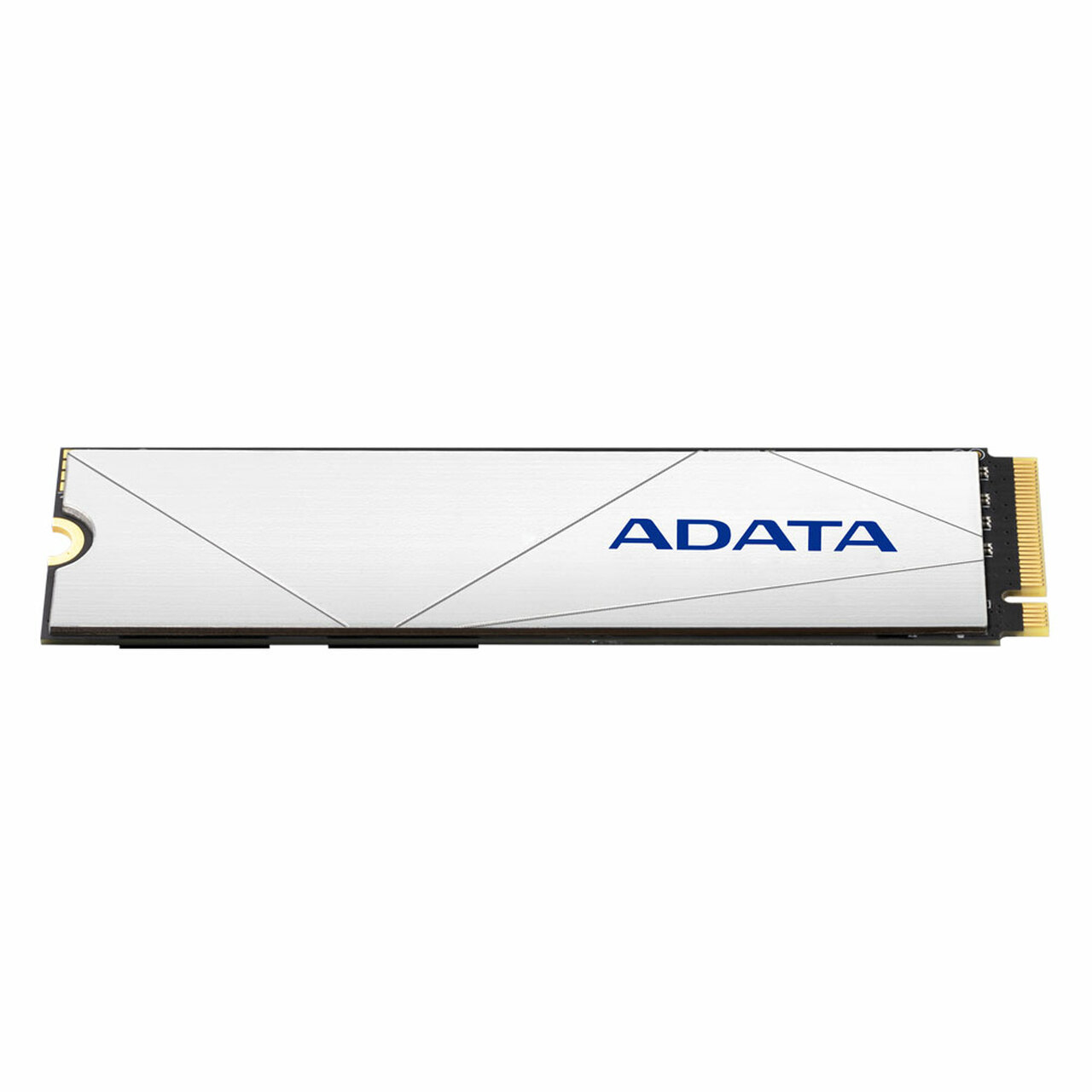

PREMIUM 1 TB M.2 PCI Express 4.0 NVMe 3D NAND
Model PREMIUMPart no. APSFG-1T-CSUSEAN 842243026481
34 specifications
- Storage1 TB
- ConnectivityPCI Express 4.0
- Weight10 g
- ColourWhite
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express 4.0
- Weight
- 10 g
- Colour
- White
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- ADATA
- Category
- Internal Solid State Drive
- Model
- PREMIUM
- Part numbers
- APSFG-1T-CSUS, APSFG-2T-CSUS
- EAN / UPC
- 842243026481, 842243026498
- Also known as
- ADATA PREMIUM 1 TB M.2 PCI Express 4.0 NVMe 3D NAND
Specifications
34 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Component for | Universal |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Data transfer rate | 7.4 Gbit/s |

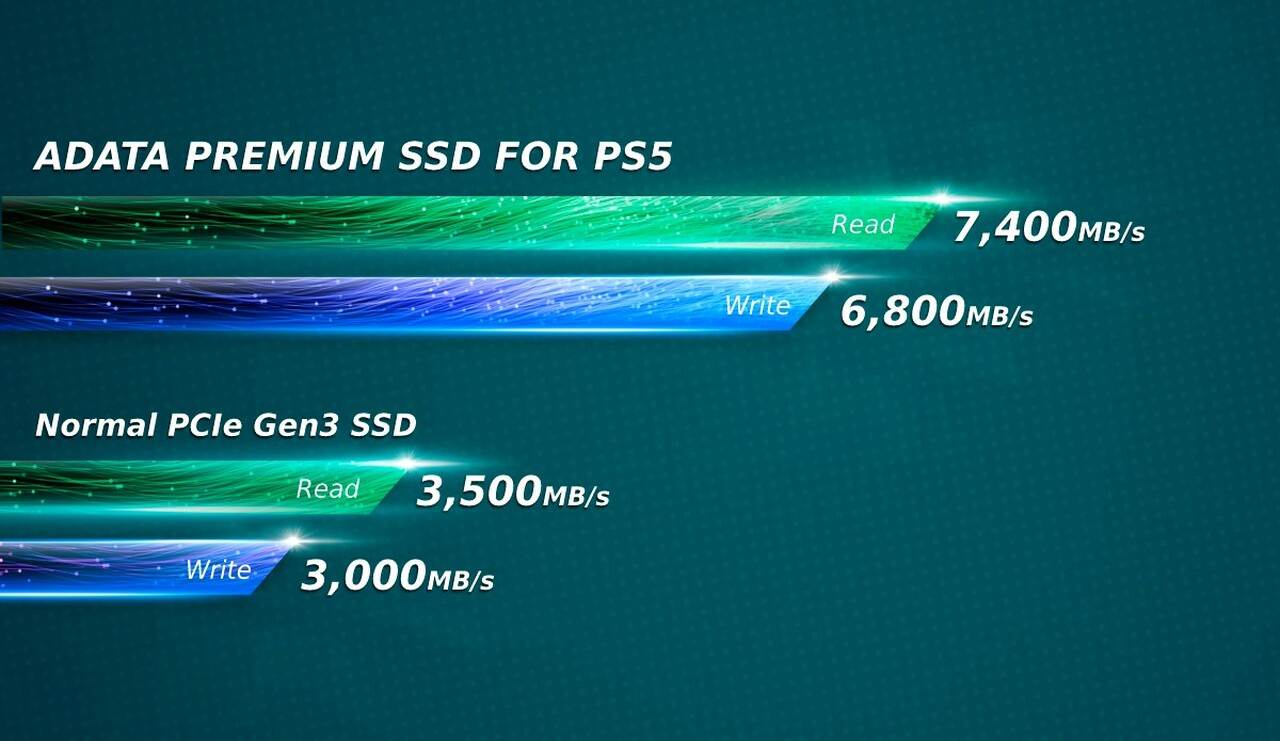

| Read speed | 7400 MB/s |
| Write speed | 6800 MB/s |
| Random read (4KB) | 750000 IOPS |
| Random write (4KB) | 750000 IOPS |
| Controller type | Innogrit IG5236 |
| PCI Express interface data lanes | x4 |
| ECC | Yes |
| End-to-End Data Protection | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 1480 |
| Certification | FCC, BSMI, CAN, Prop 65 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 4.3 mm |
| Weight | 10 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| Operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Product colour | White |

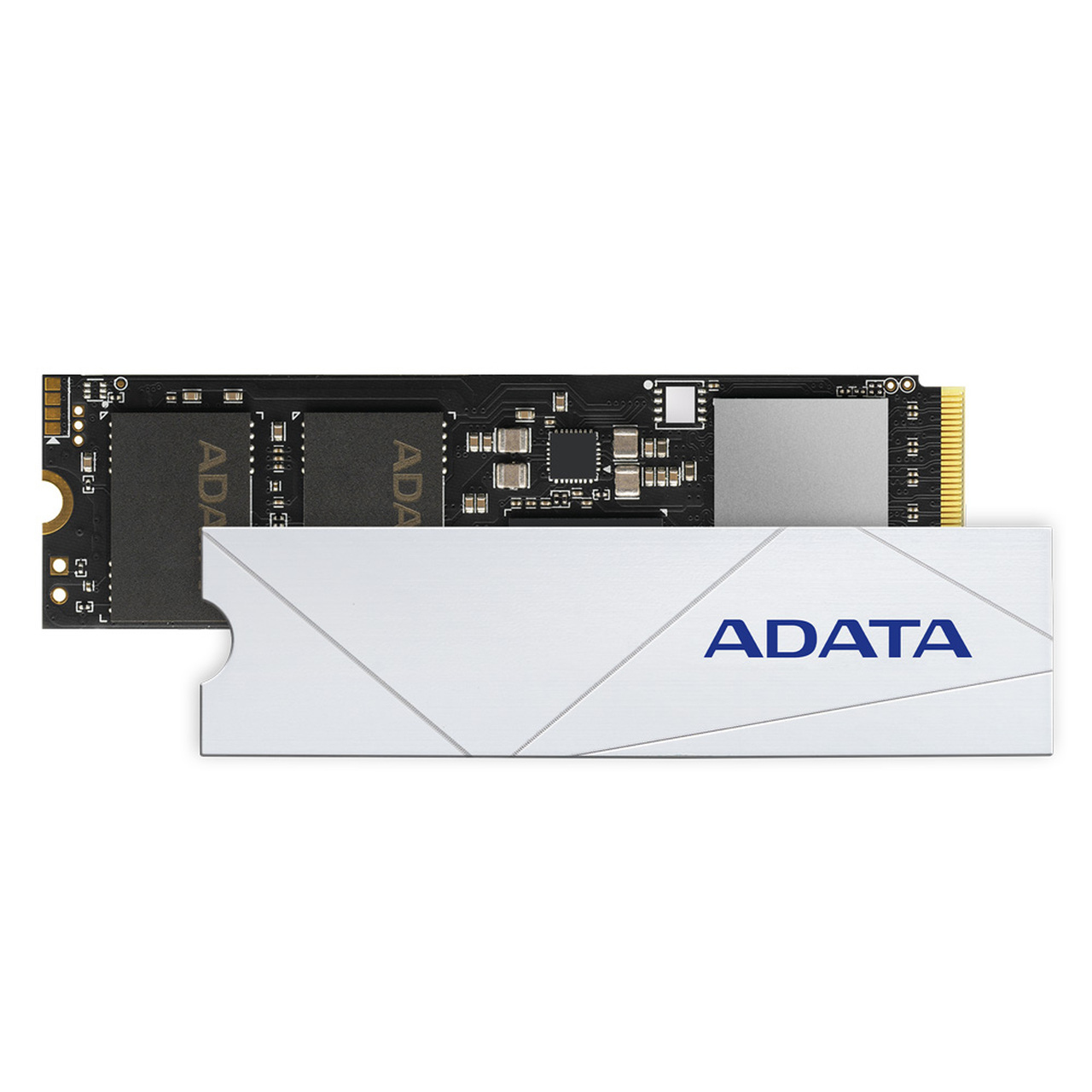

| Cooling type | Heatsink |
| Compliance certificates | CE, RoHS |
| NAND controller | InnoGrit IG5236A1 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
