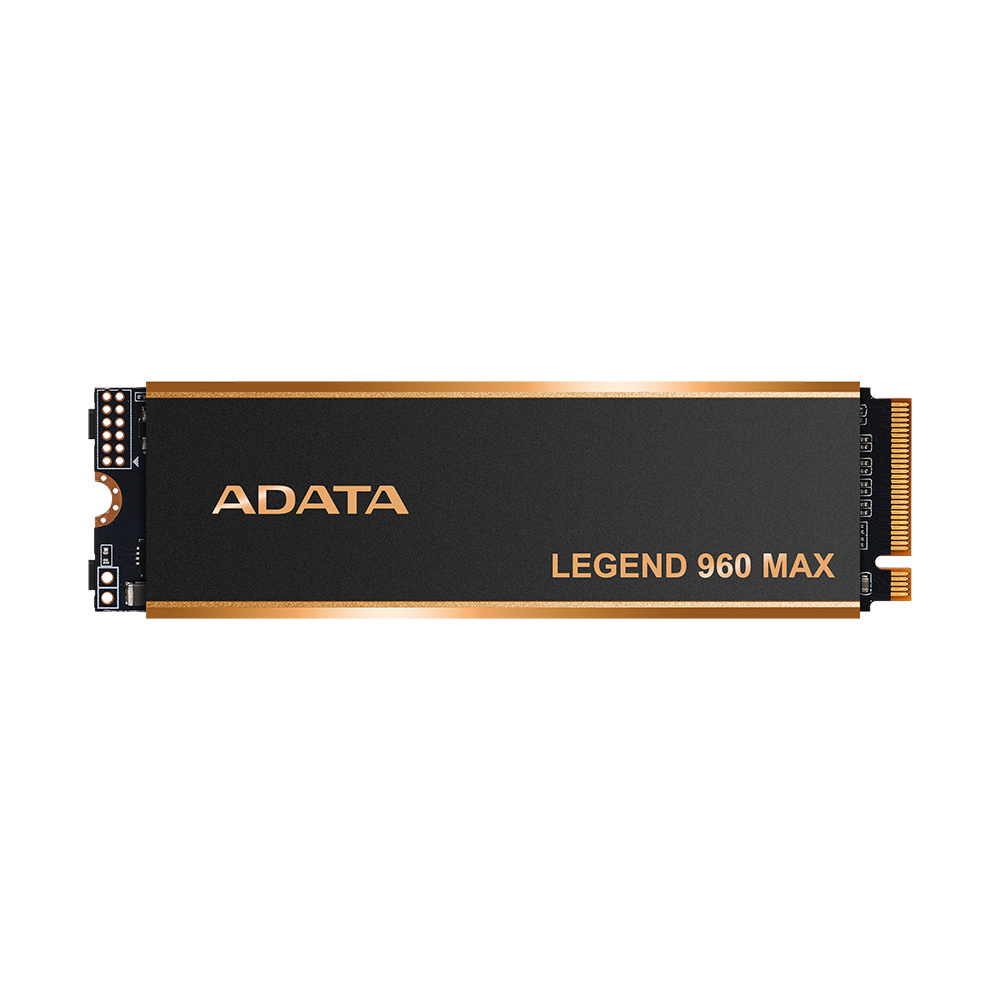

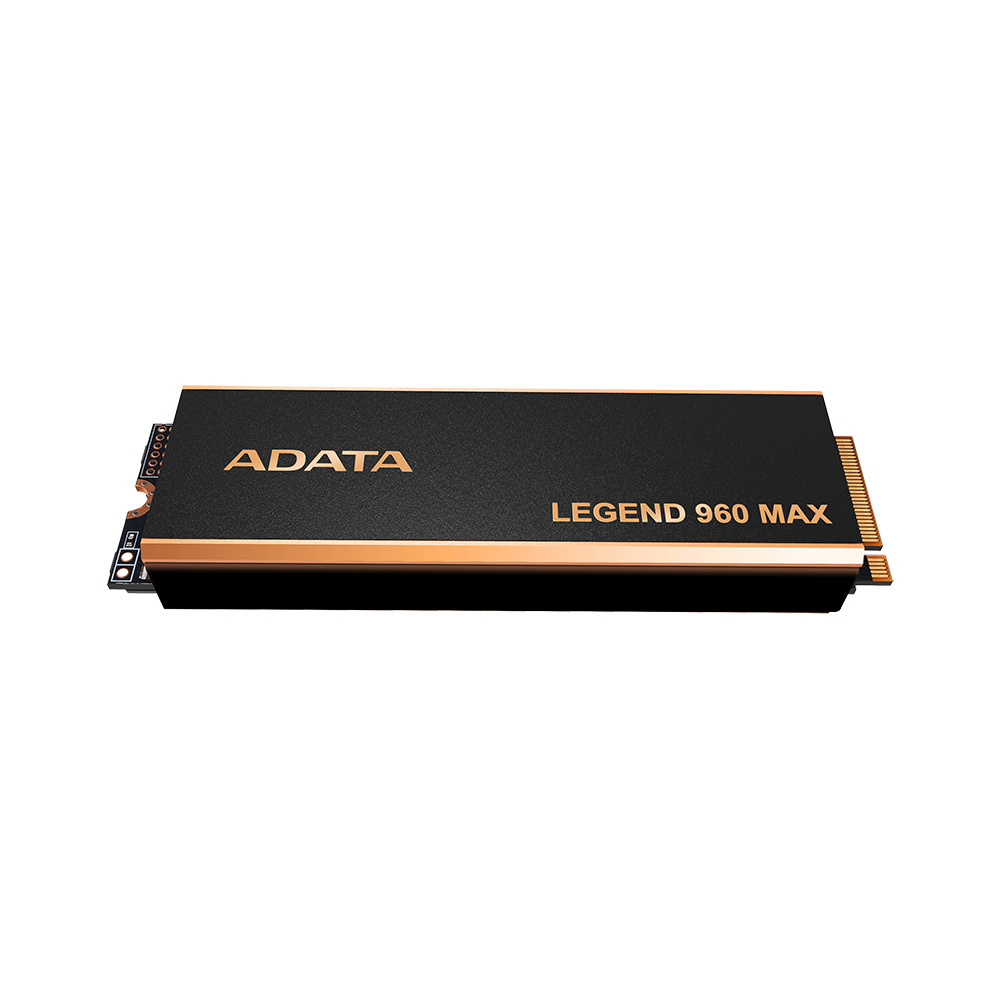

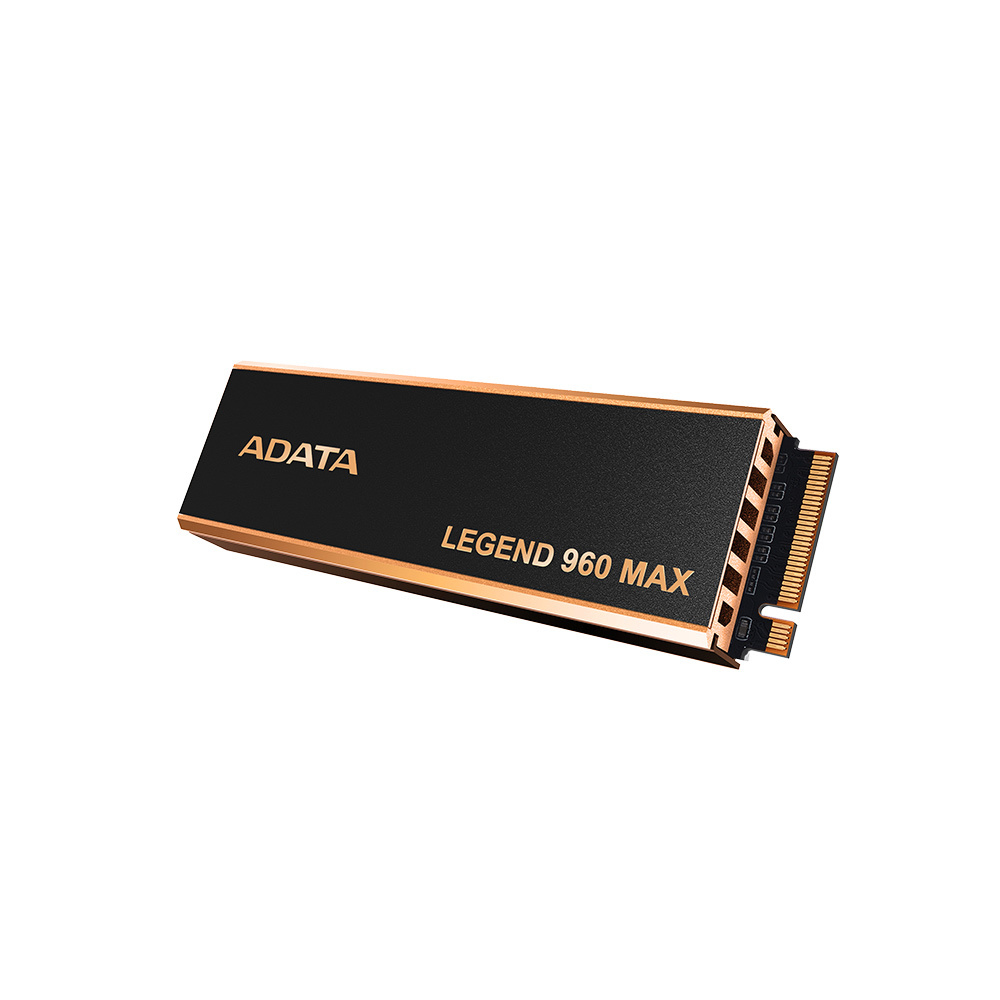

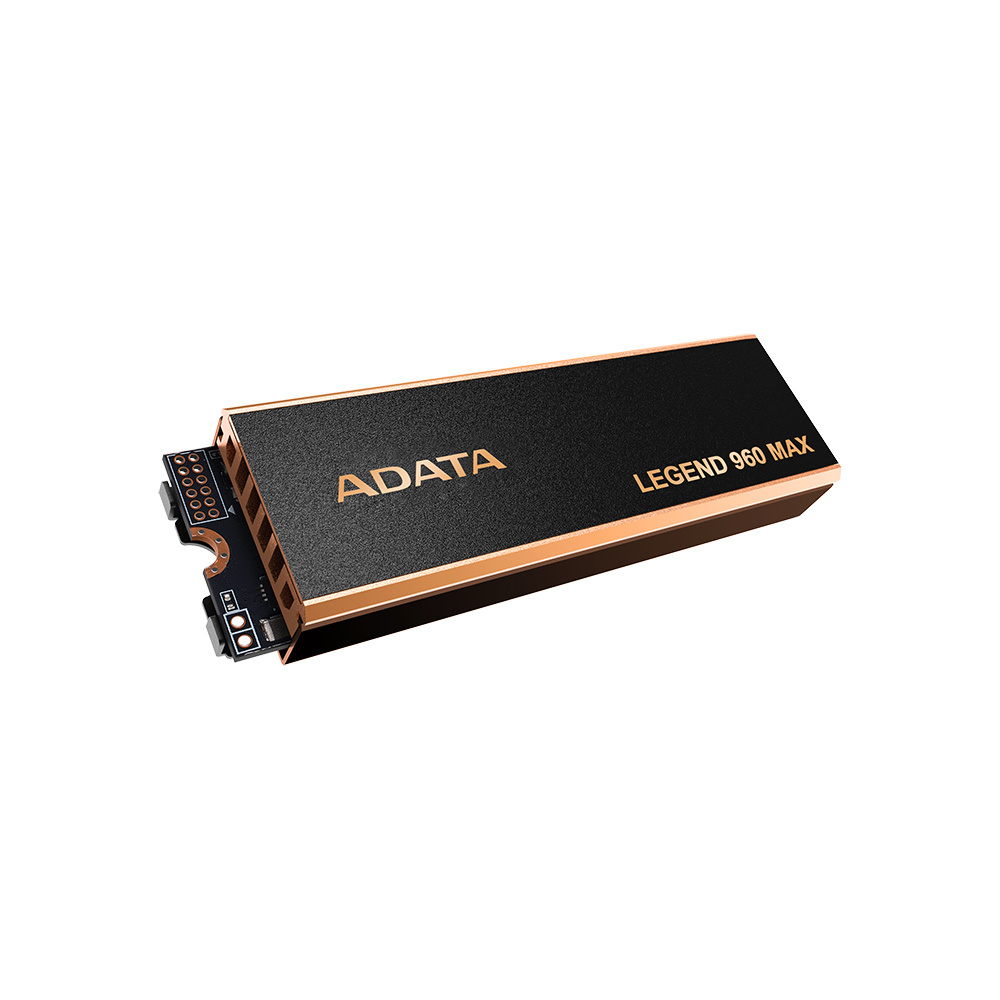

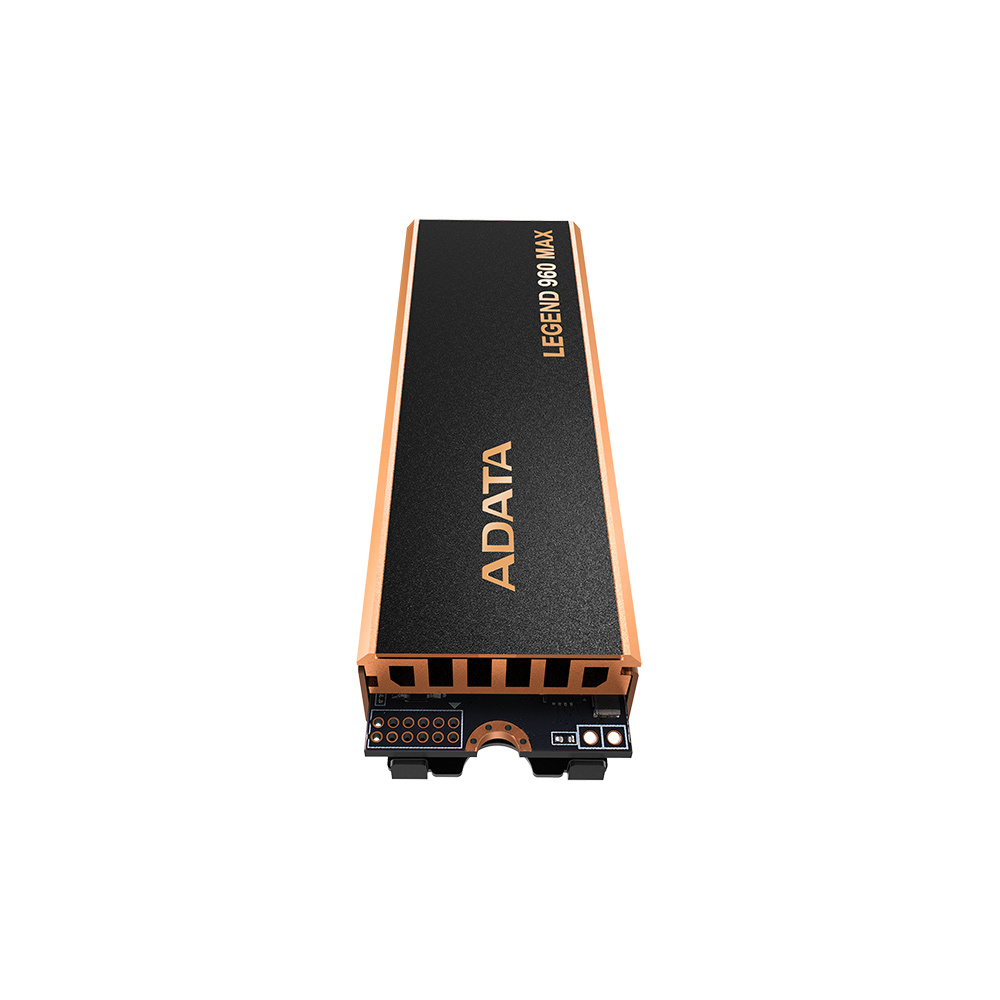

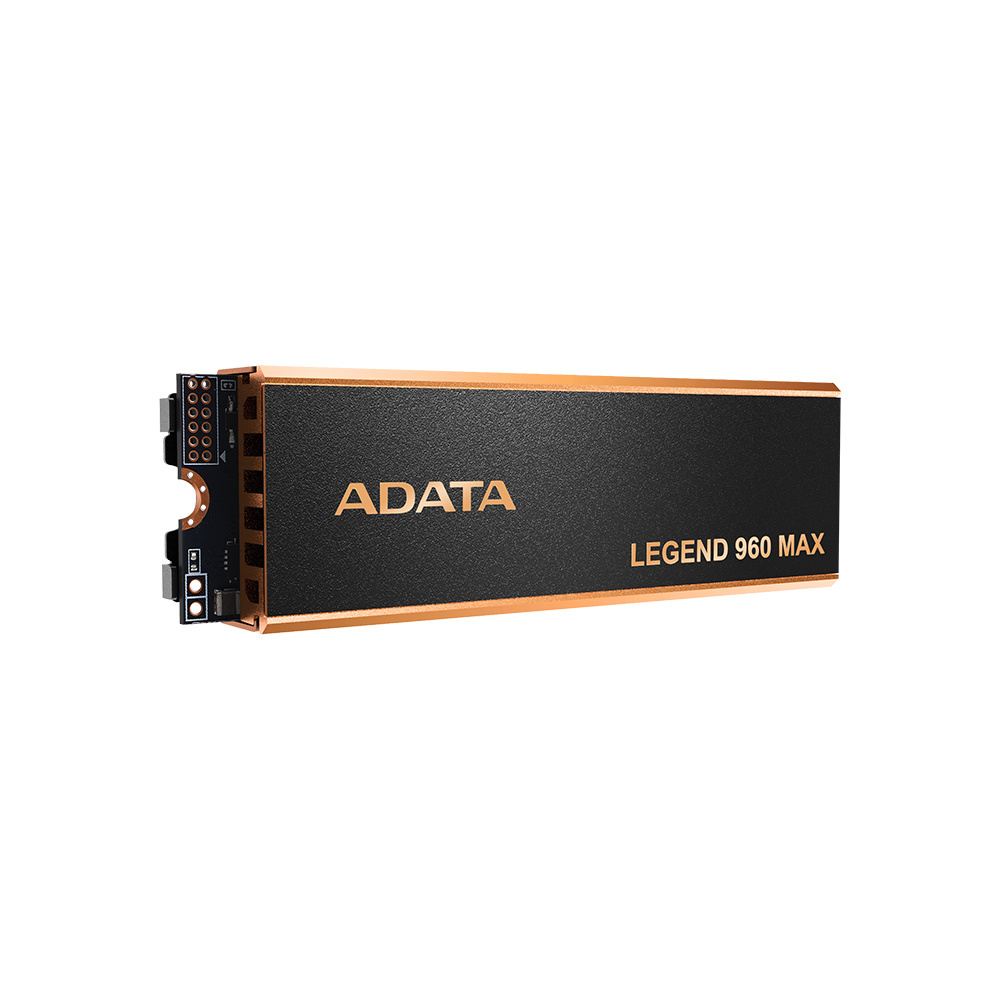

LEGEND 960 MAX
Model LEGEND 960 MAXPart no. ALEG-960M-4TCSEAN 4711085938879
33 specifications
- Storage1 TB
- ConnectivityPCI Express 4.0
- Weight36.6 g
- Brand specific technologiesSLC Caching
- Width23.2 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 1 TB
- Connectivity
- PCI Express 4.0
- Weight
- 36.6 g
- Brand specific technologies
- SLC Caching
- Width
- 23.2 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- ADATA
- Category
- Internal Solid State Drive
- Model
- LEGEND 960 MAX
- Part numbers
- ALEG-960M-4TCS, ALEG-960M-1TCS, ALEG-960M-2TCS
- EAN / UPC
- 4711085938879, 842243027532, 4711085938855, 842243027549 +2 more
- Also known as
- ADATA LEGEND 960 MAX 1 TB M.2 PCI Express 4.0 NVMe 3D NAND
Specifications
33 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Memory type | 3D NAND |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 7400 MB/s |
| Write speed | 6000 MB/s |
| Random read (4KB) | 730000 IOPS |
| Random write (4KB) | 610000 IOPS |
| Controller type | SMI SM2264 |
| PCI Express interface data lanes | x4 |
| ECC | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 780 |
| Certification | CE, FCC, BSMI, KC, EAC, RCM, morocco, UKCA, RoHS |
Brand-specific features
| Specification | Value |
|---|---|
| Brand specific technologies | SLC Caching |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 23.2 mm |
| Depth | 80.6 mm |
| Height | 10.7 mm |
| Weight | 36.6 g |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| Operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compatible products | PlayStation 5 |
