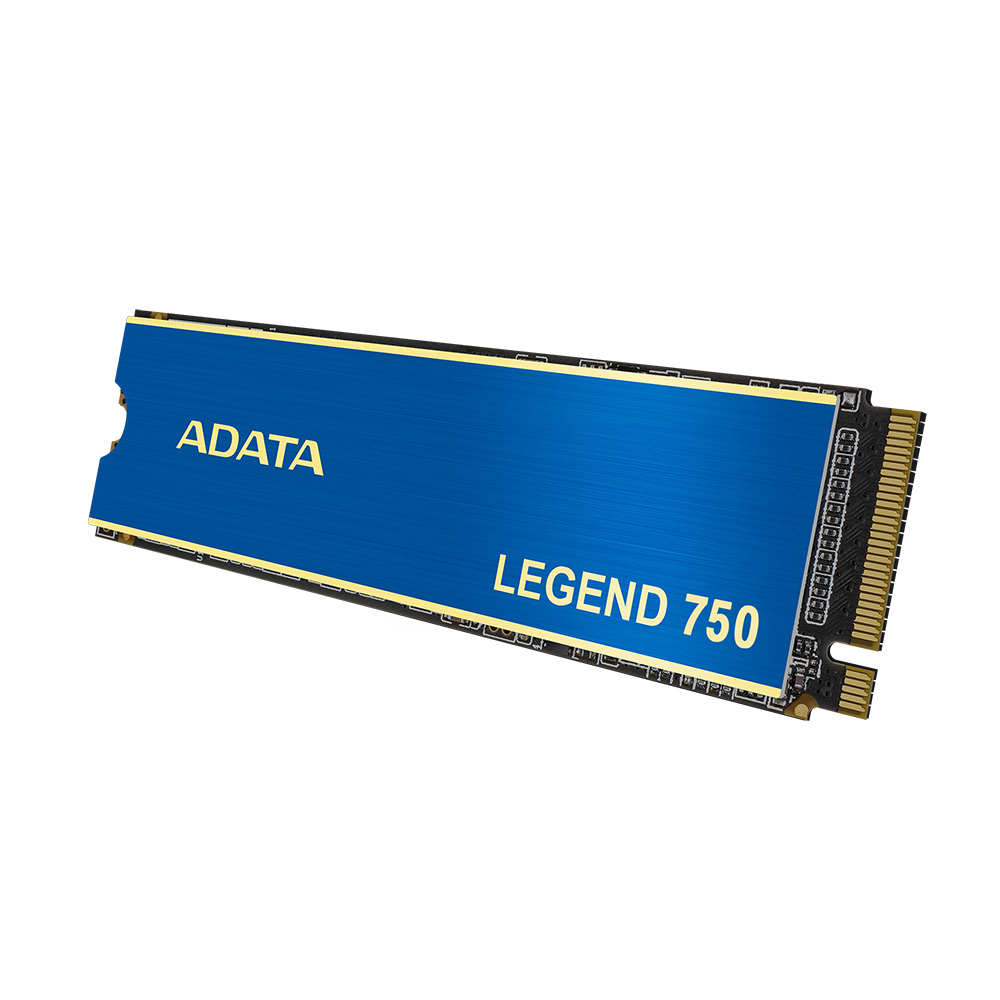

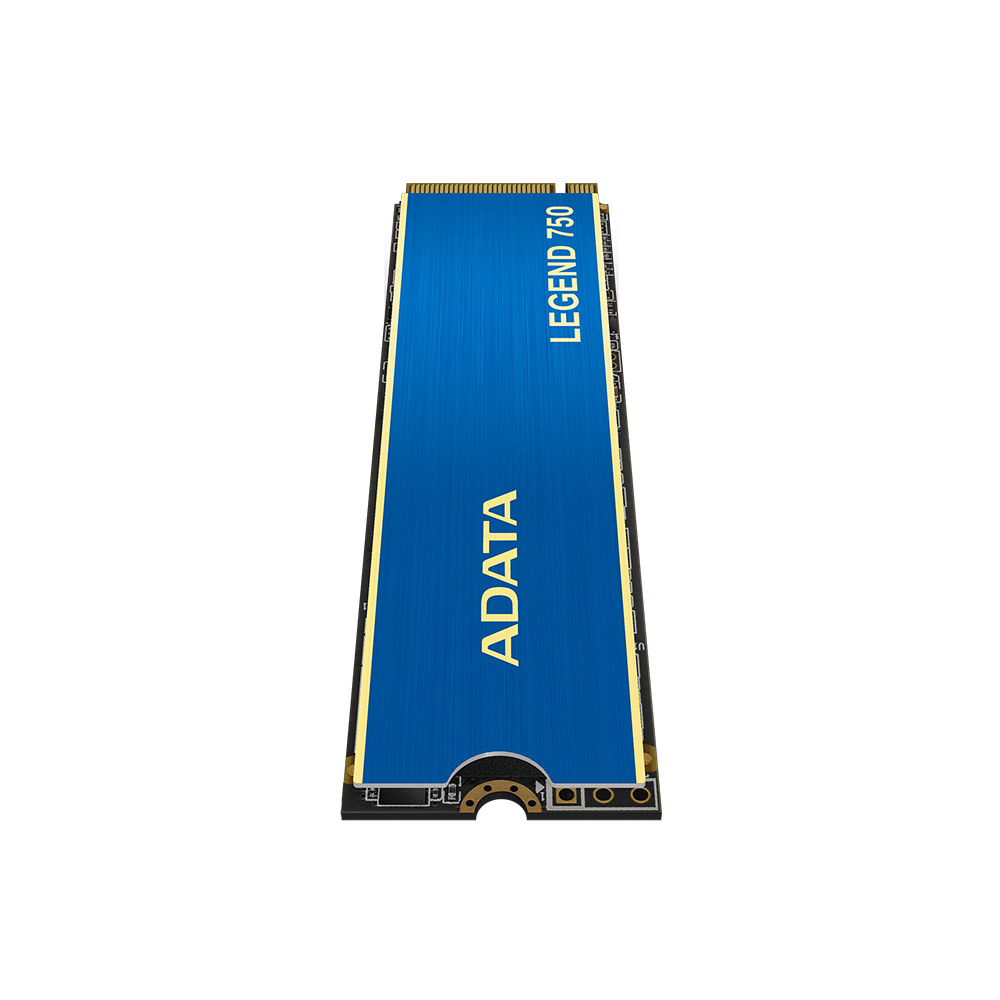

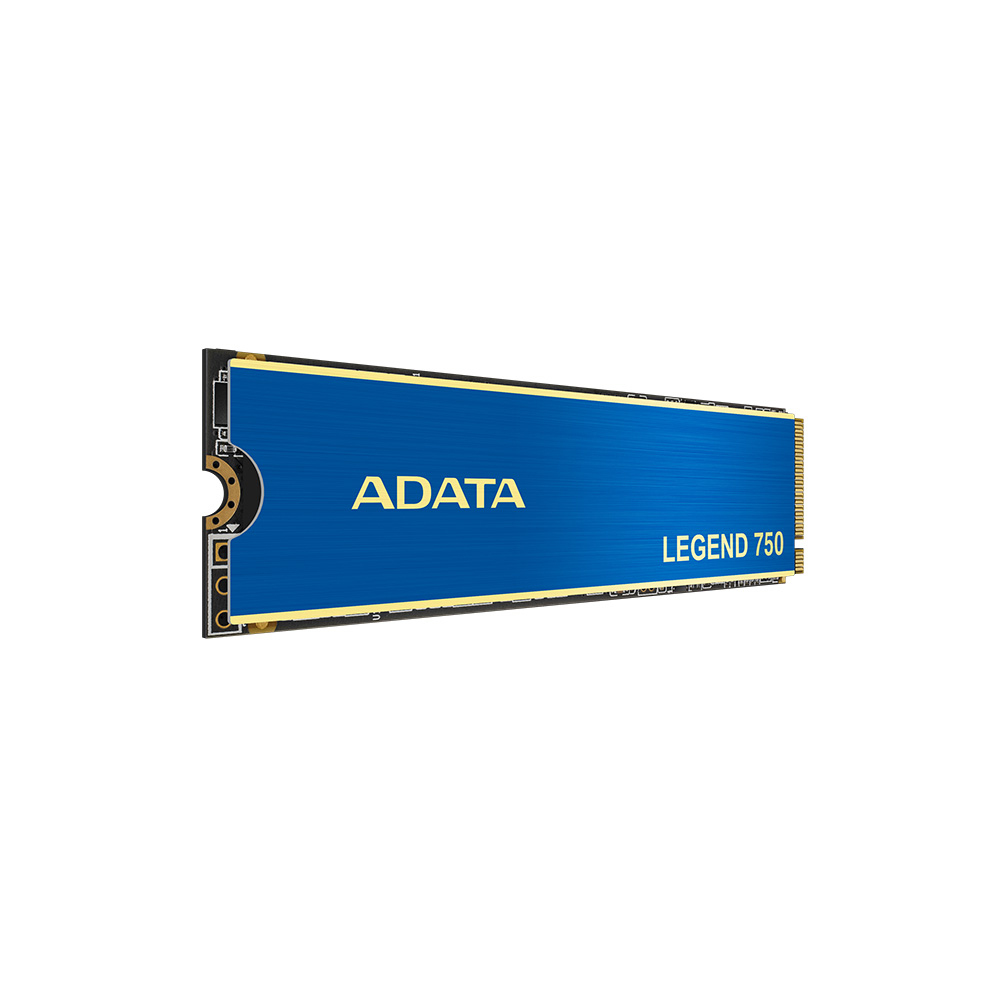

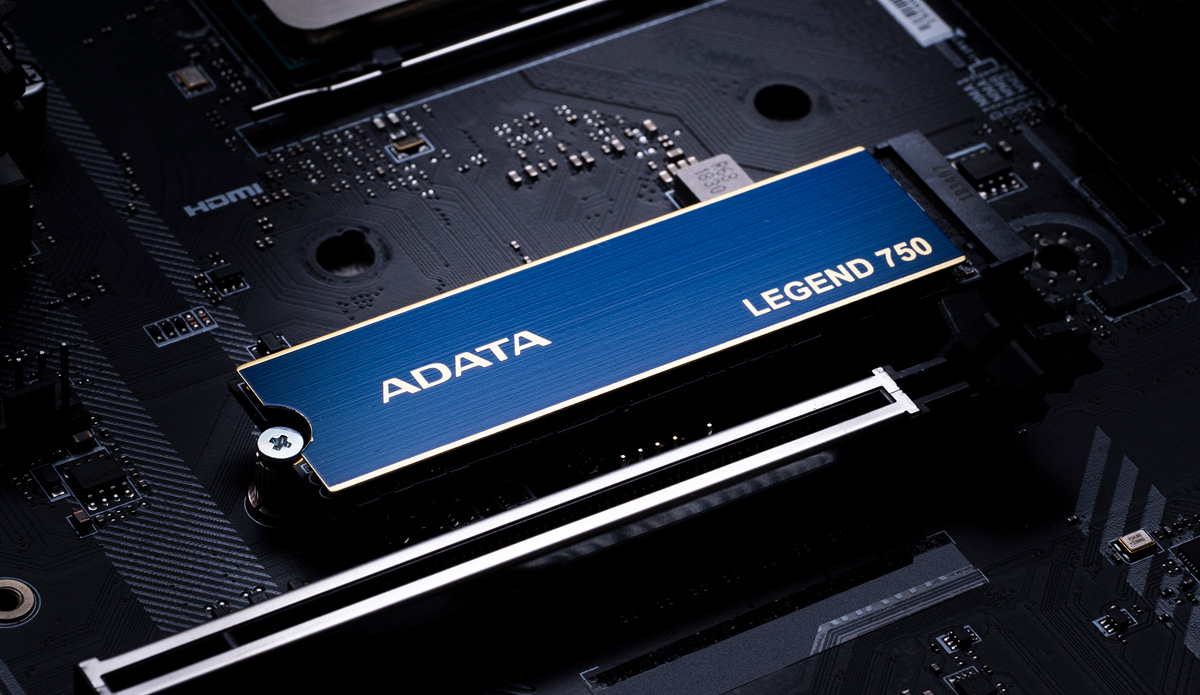

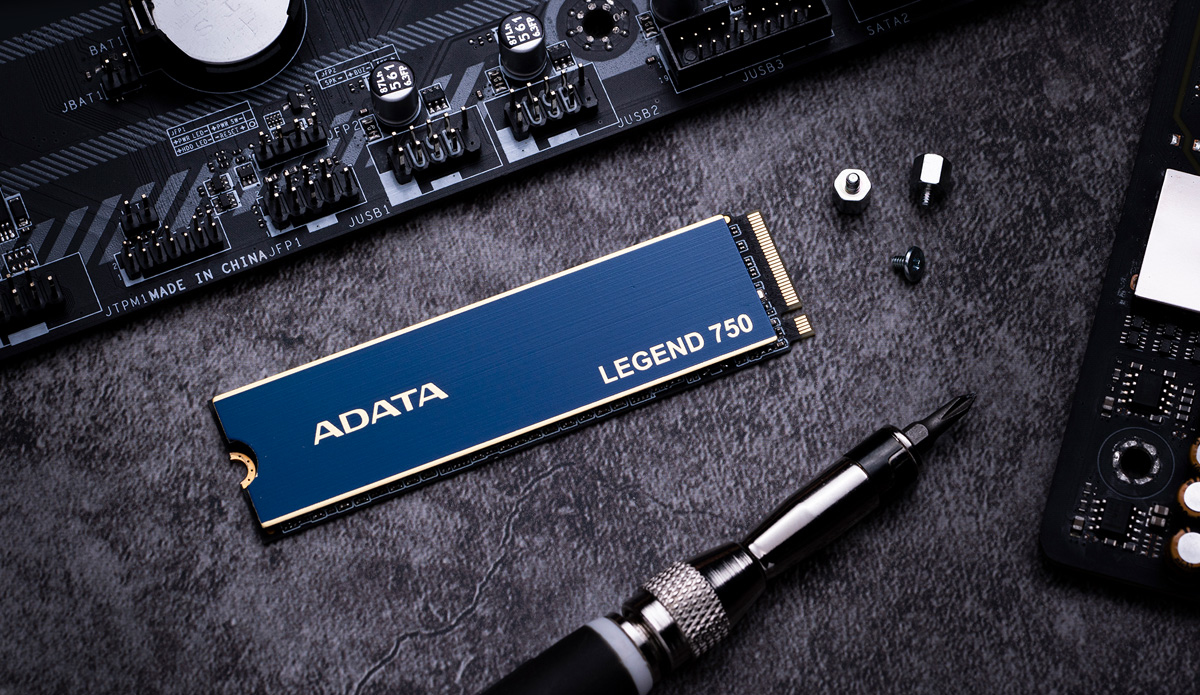

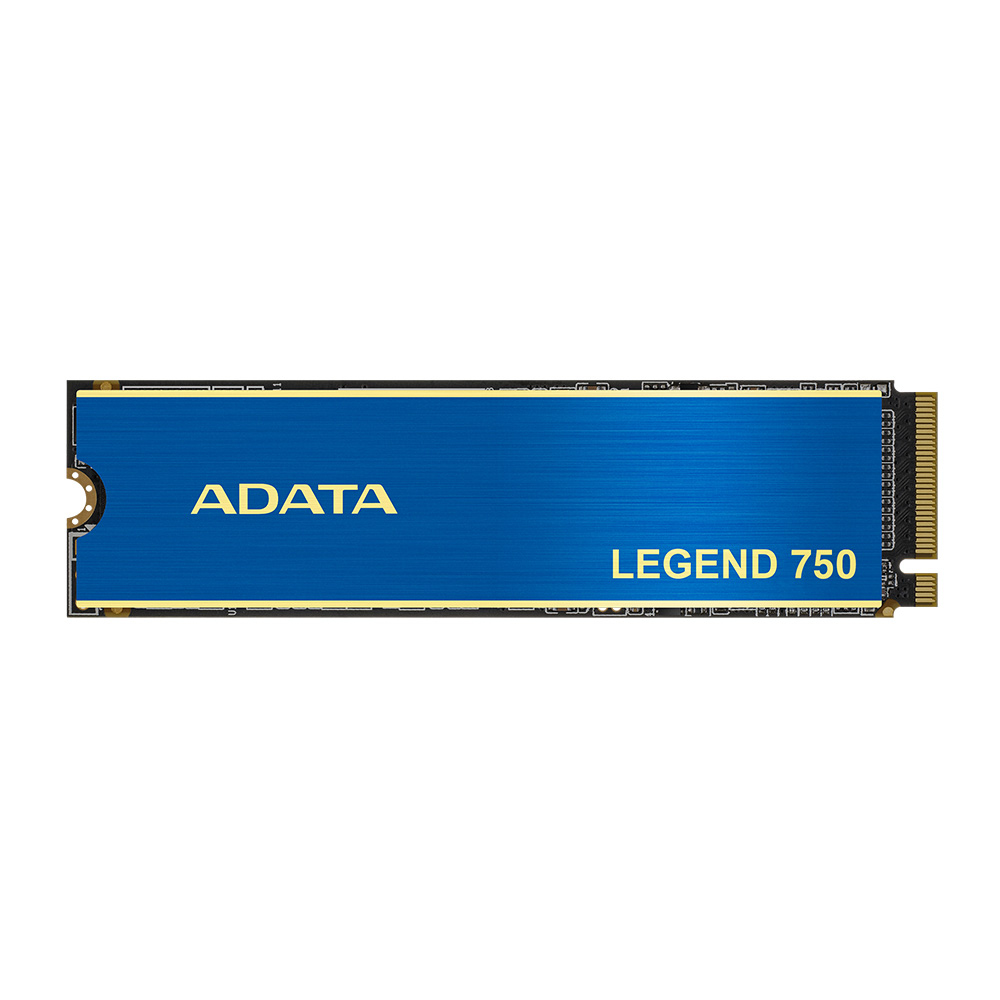

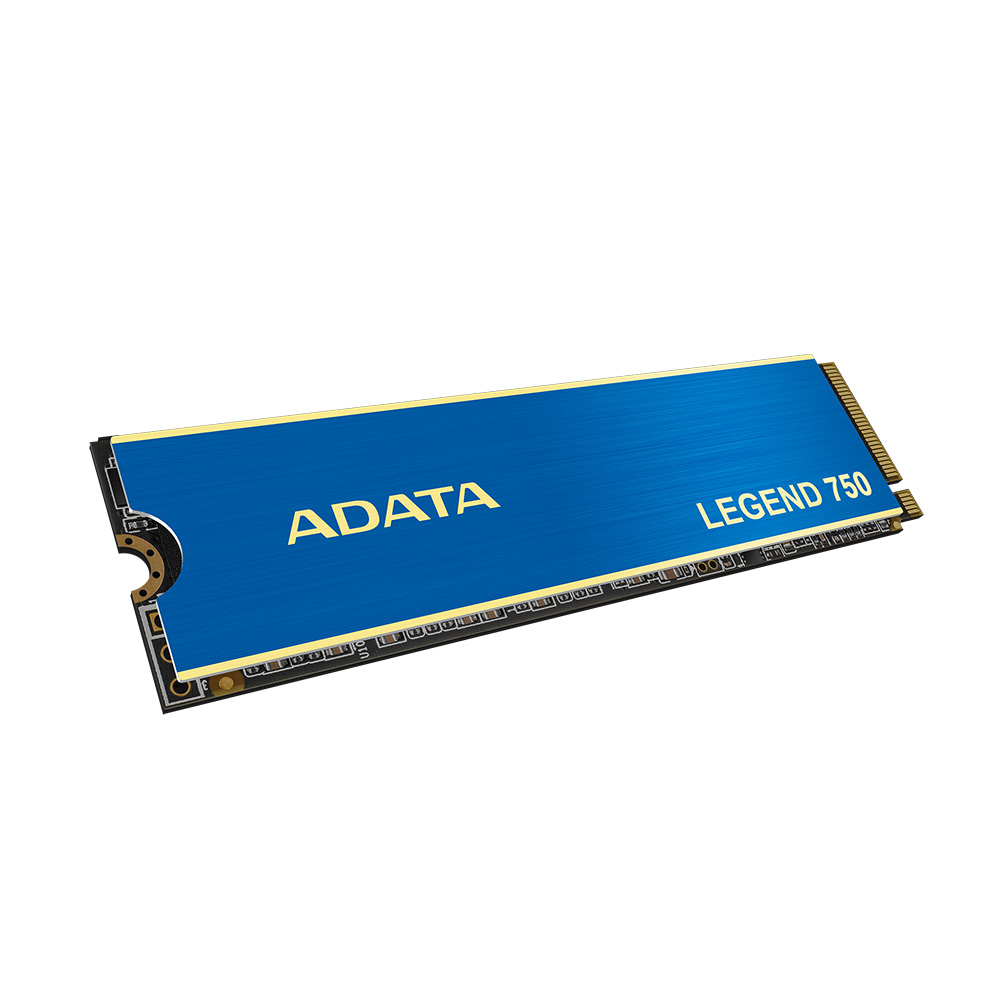

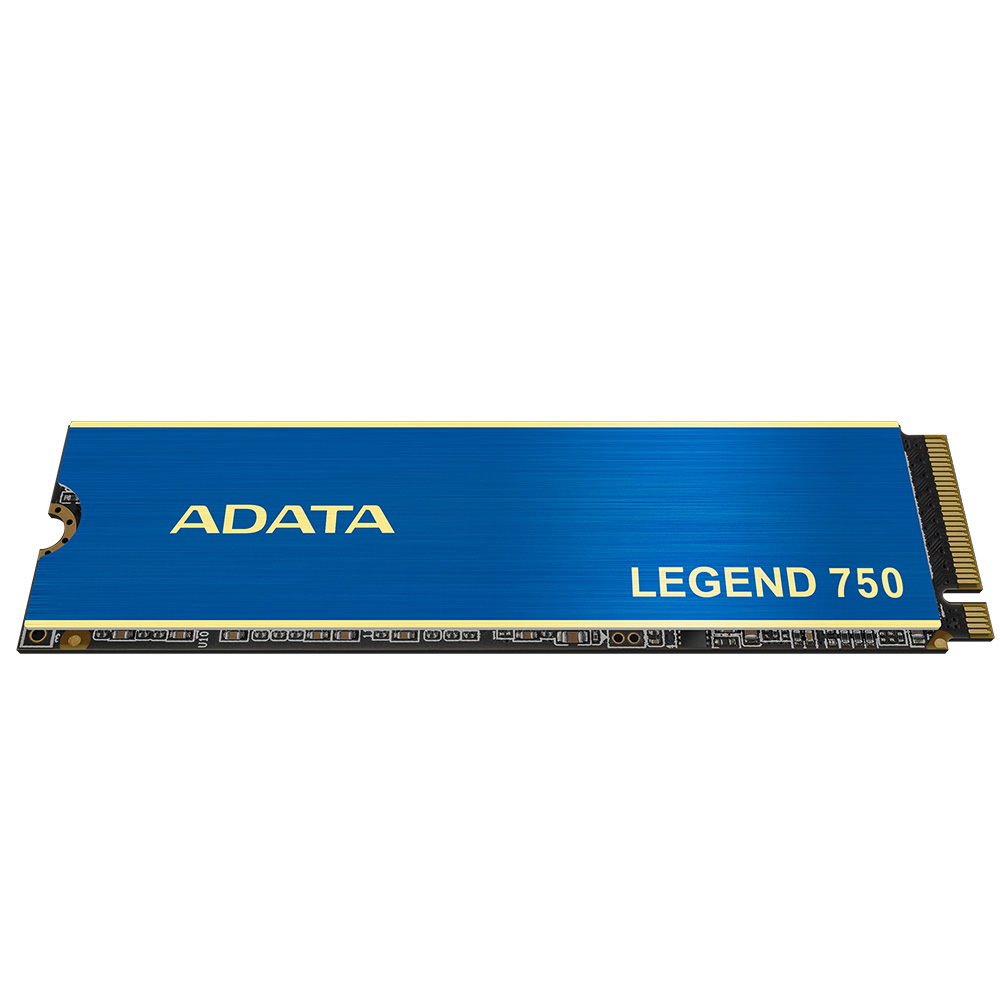

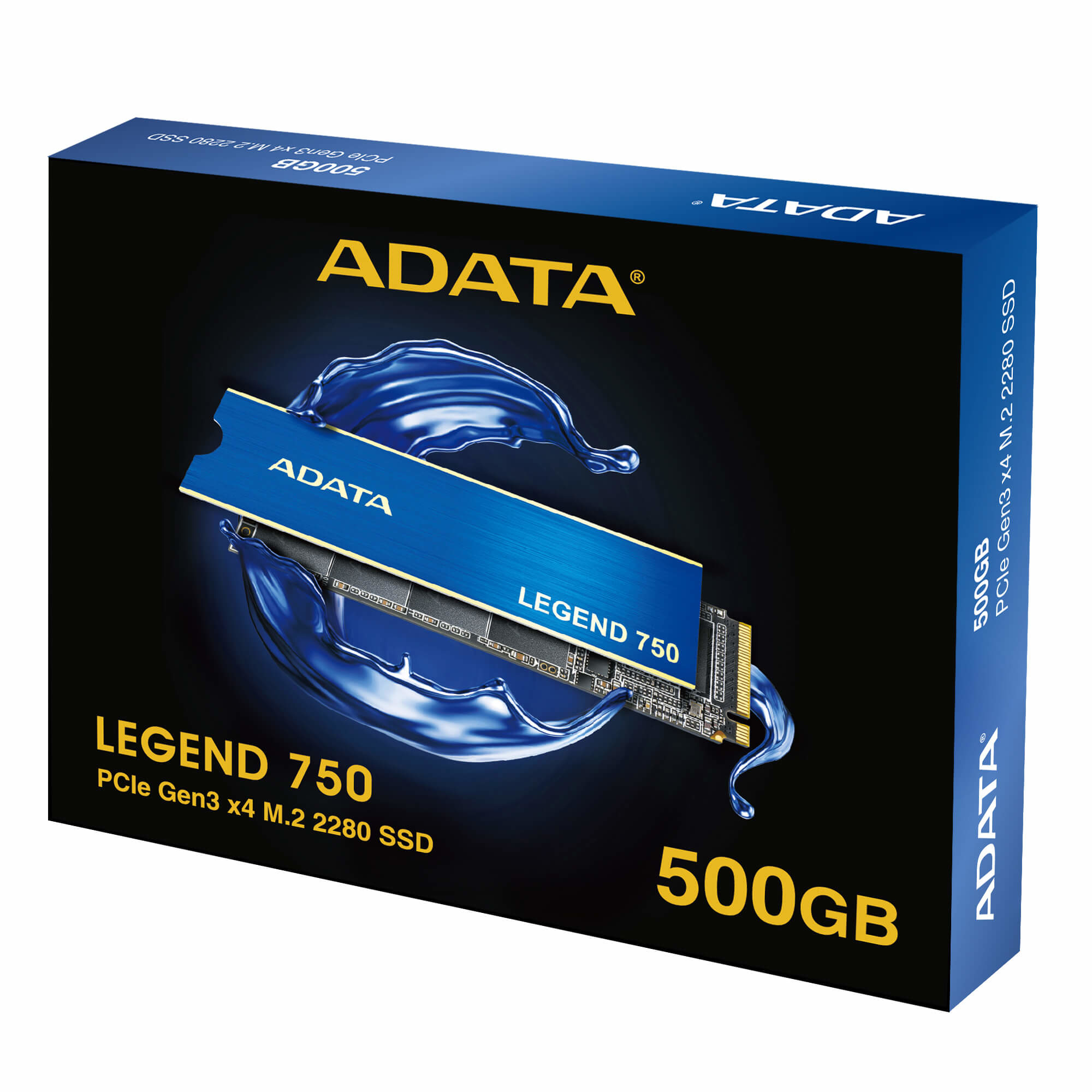

Legend 750
Model Legend 750Part no. ALEG-750-500GCSEAN 4711085935915
35 specifications
- Storage500 GB
- ConnectivityPCI Express 3.0
- Weight9 g
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 500 GB
- Connectivity
- PCI Express 3.0
- Weight
- 9 g
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- ADATA
- Category
- Internal Solid State Drive
- Model
- Legend 750
- Part numbers
- ALEG-750-500GCS, ALEG-750-1TCS
- EAN / UPC
- 4711085935915, 4711085935922
- Also known as
- ADATA Legend 750 500 GB M.2 PCI Express 3.0 NVMe 3D NAND
Specifications
35 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| NVMe version | 1.3 |
| Memory type | 3D NAND |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Read speed | 3350 MB/s |
| Write speed | 2450 MB/s |
| Random read (4KB) | 370000 IOPS |
| Random write (4KB) | 190000 IOPS |
| Sequential read speed (ATTO) | 3350 MB/s |
| Sequential write speed (ATTO) | 2450 MB/s |
| Sequential read speed (CDM) | 3400 MB/s |
| Sequential write speed (CDM) | 2400 MB/s |
| Sequential read speed (AS SSD) | 2900 MB/s |
| Sequential write speed (AS SSD) | 2100 MB/s |
| PCI Express interface data lanes | x4 |
| ECC | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 300 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.13 mm |
| Weight | 9 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| Operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
