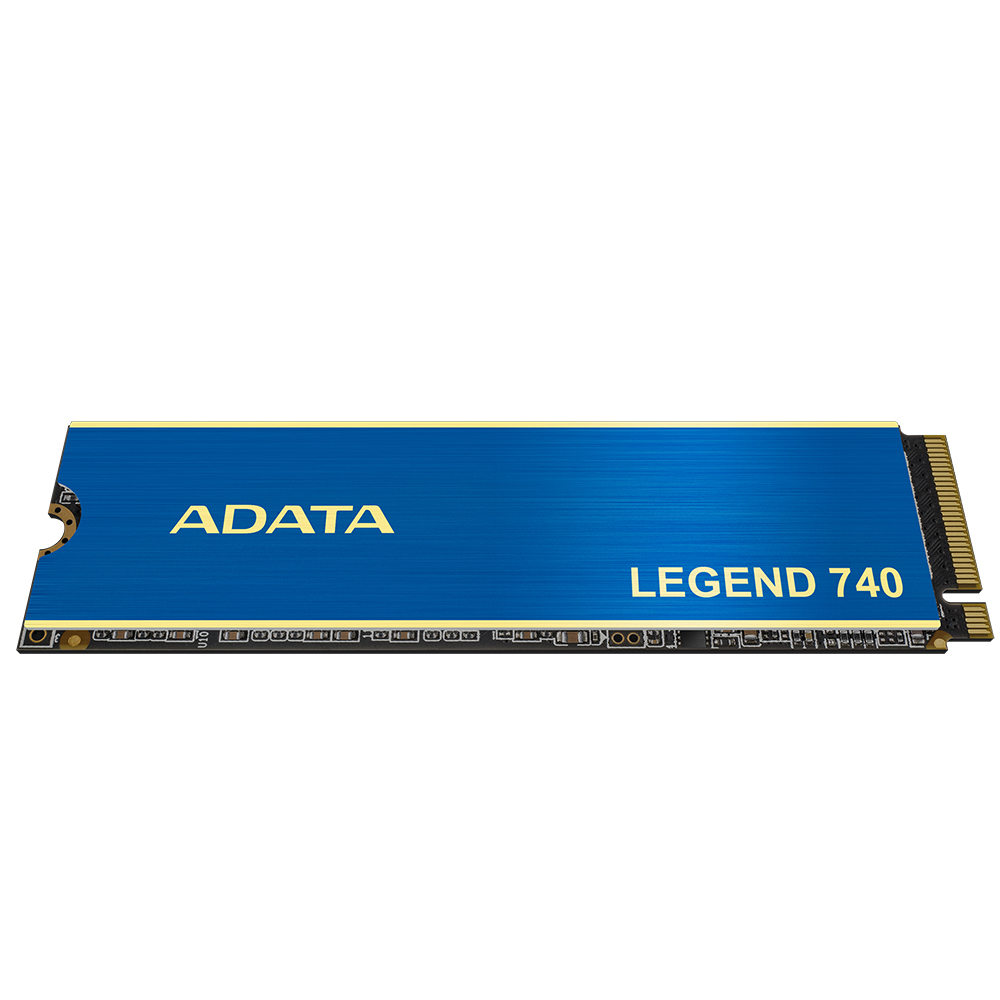

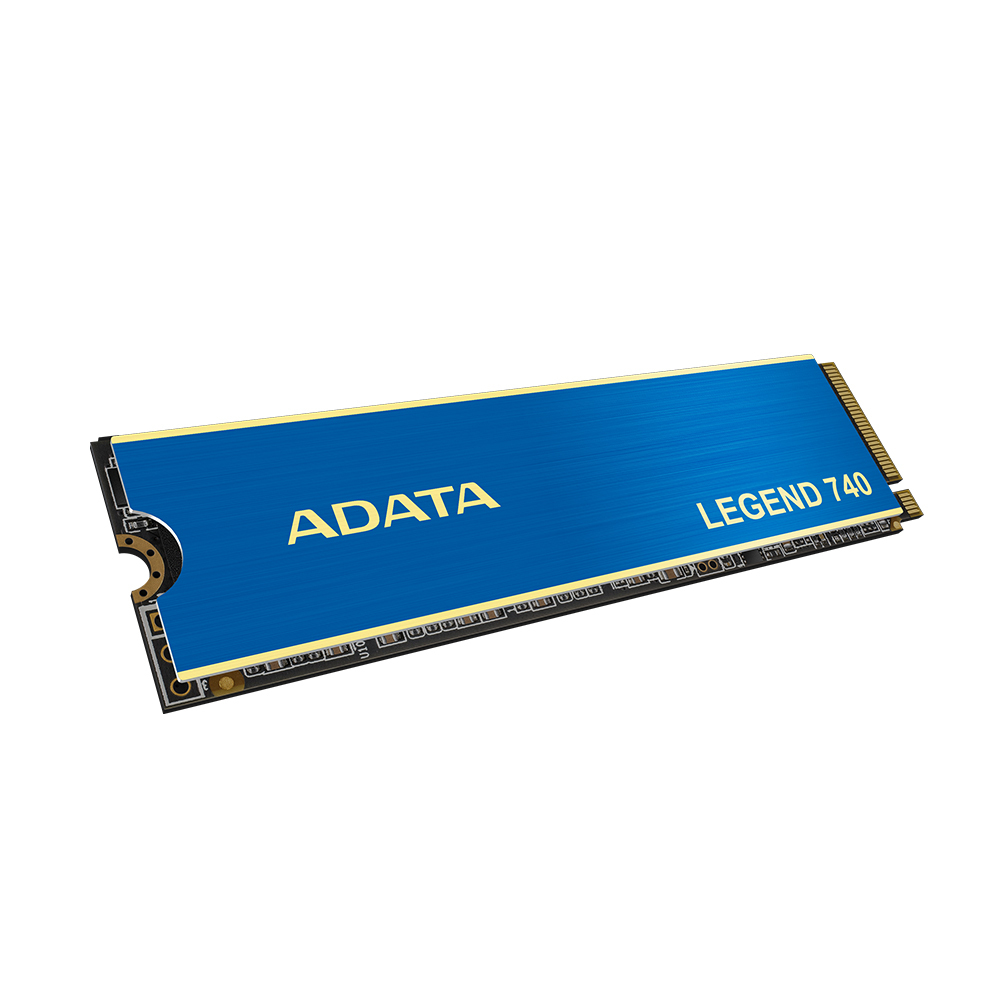

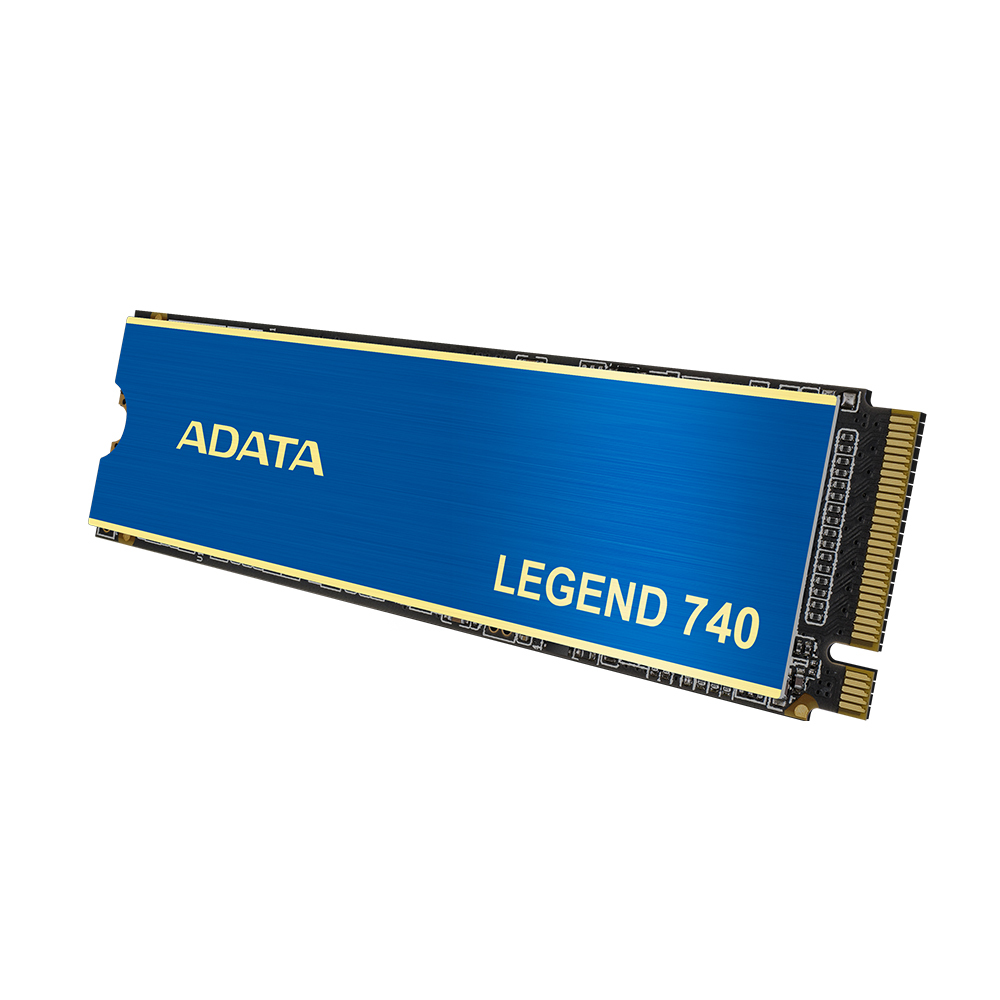

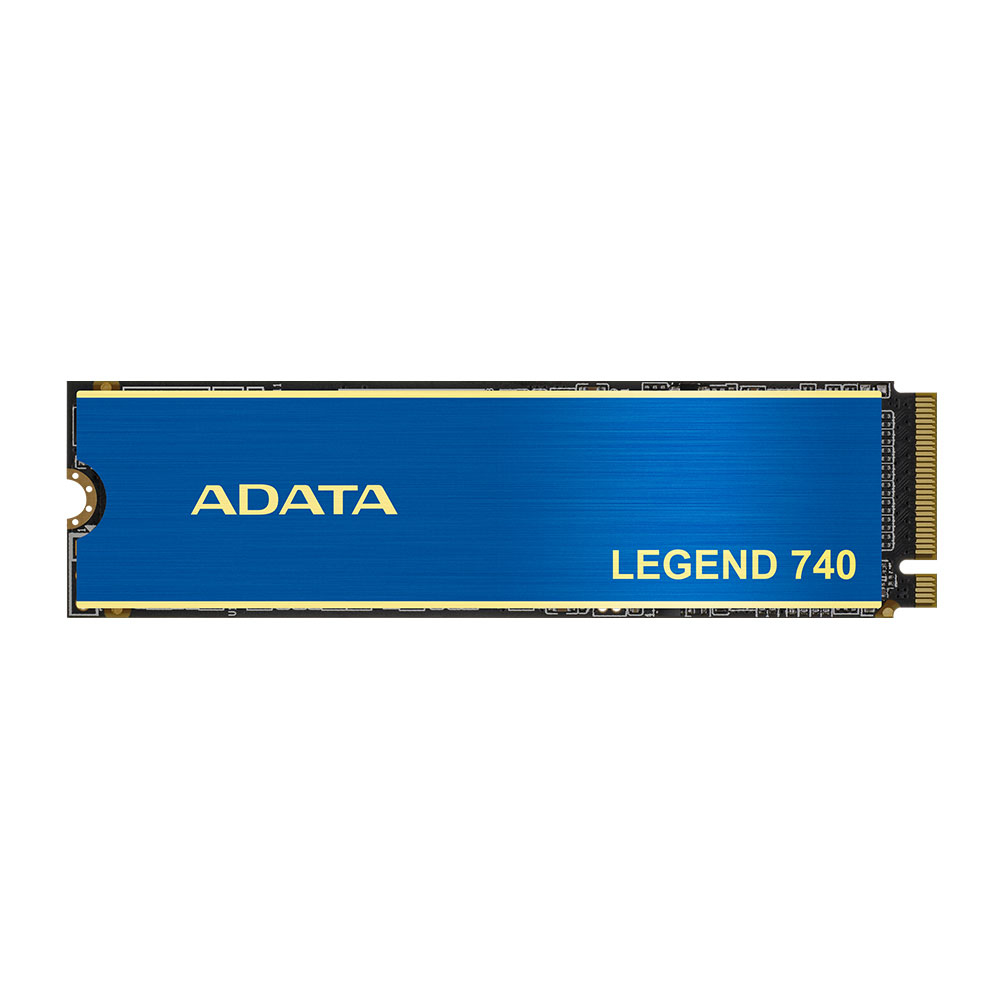

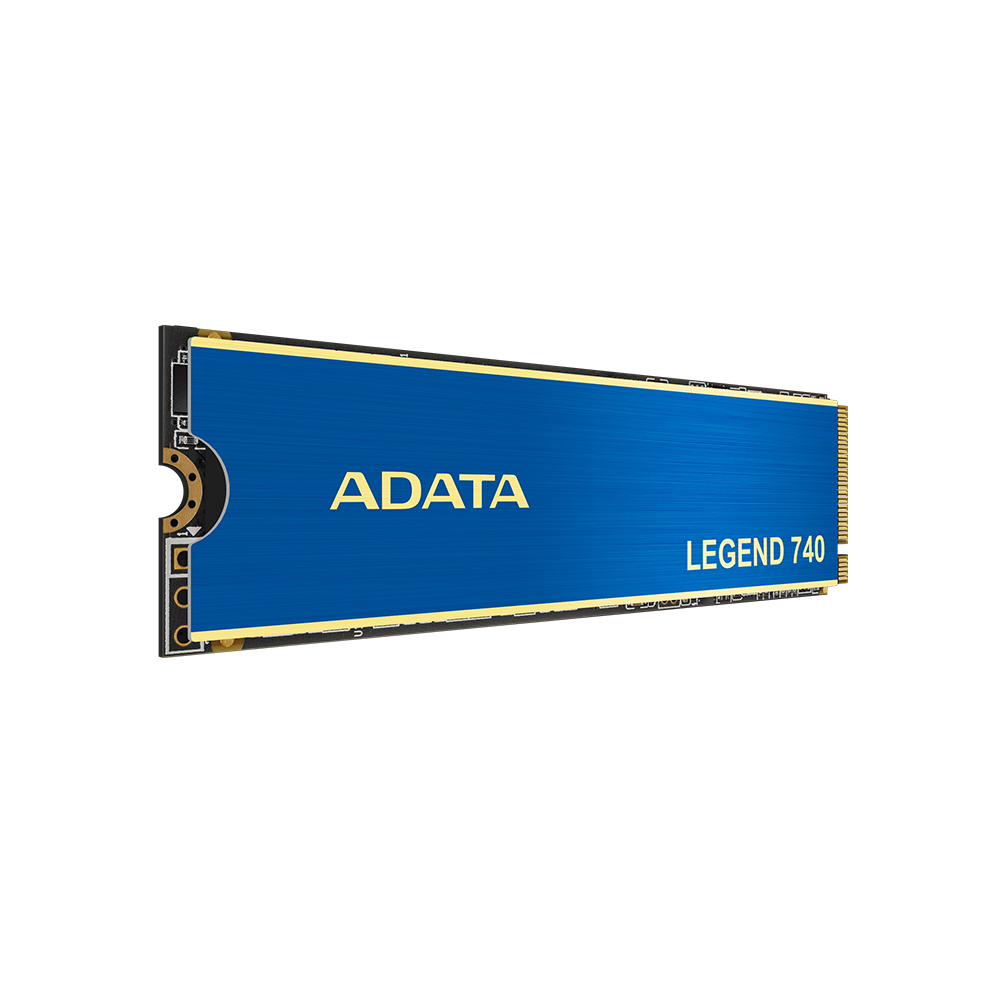

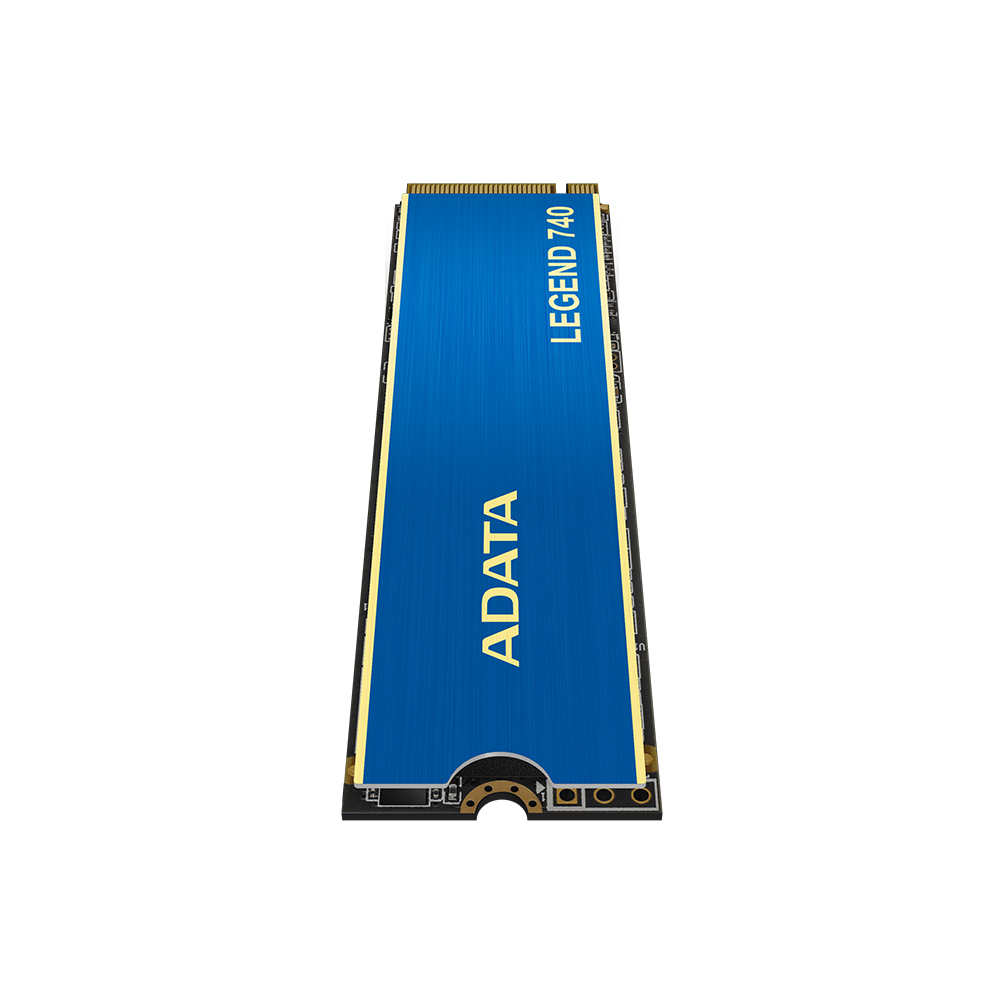

Legend 740
Model Legend 740Part no. ALEG-740-500GCSEAN 4711085935823
33 specifications
- Storage500 GB
- ConnectivityPCI Express 3.0
- Weight9 g
- Width80 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 500 GB
- Connectivity
- PCI Express 3.0
- Weight
- 9 g
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- ADATA
- Category
- Internal Solid State Drive
- Model
- Legend 740
- Part numbers
- ALEG-740-500GCS, ALEG-740-1TCS, ALEG-740-250GCS
- EAN / UPC
- 4711085935823, 4711085935830, 4711085935847
- Also known as
- ADATA Legend 740 500 GB M.2 PCI Express 3.0 NVMe 3D NAND
Specifications
33 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 500 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| NVMe version | 1.3 |
| Memory type | 3D NAND |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Read speed | 2500 MB/s |
| Write speed | 2000 MB/s |
| Random read (4KB) | 100 IOPS |
| Random write (4KB) | 200 IOPS |
| Sequential read speed (ATTO) | 2500 MB/s |
| Sequential write speed (ATTO) | 1700 MB/s |
| Sequential read speed (CDM) | 2500 MB/s |
| Sequential write speed (CDM) | 1700 MB/s |
| Sequential read speed (AS SSD) | 2400 MB/s |
| Sequential write speed (AS SSD) | 1500 MB/s |
| ECC | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| TBW rating | 300 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 3.1 mm |
| Height | 22 mm |
| Weight | 9 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| Operating vibration | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
