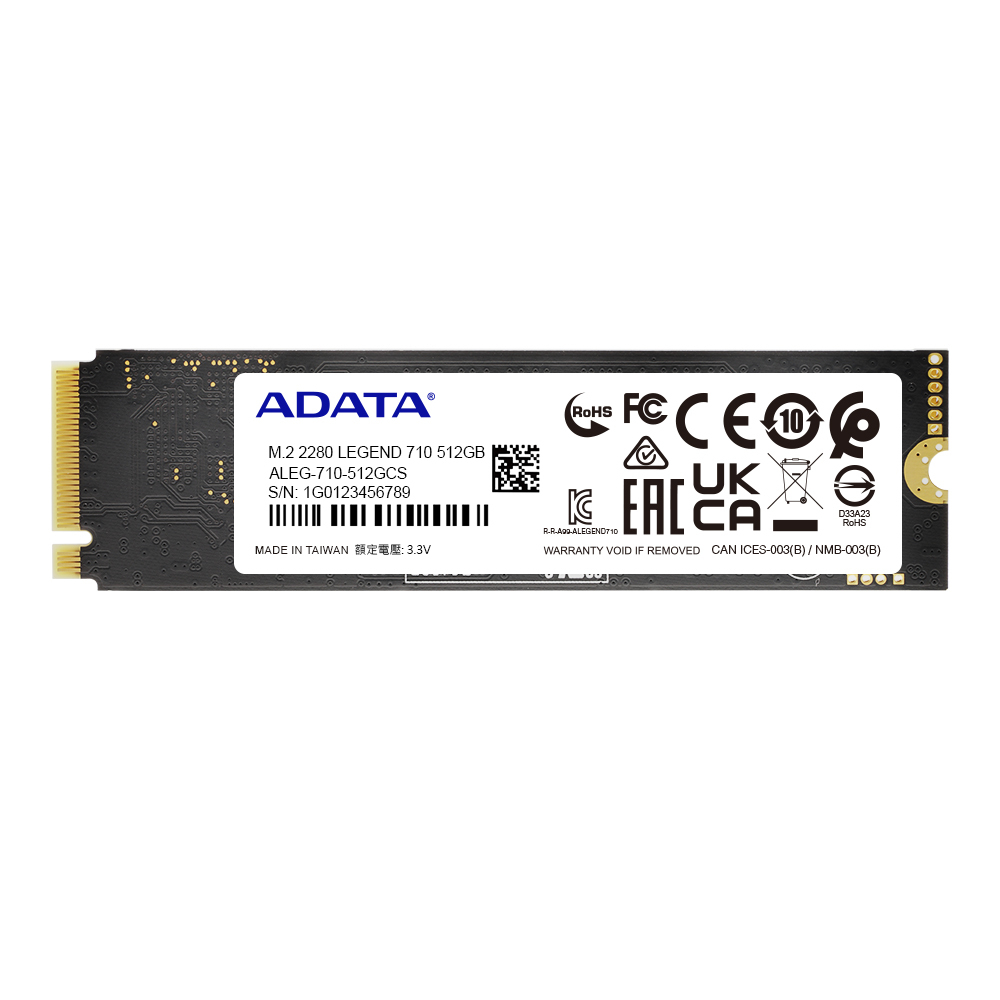

LEGEND 710
Model LEGEND 710Part no. ALEG-710-2TCSEAN 4711085939470
36 specifications
- Storage512 GB
- ConnectivityPCI Express 3.0
- Weight9 g
- Width22 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 512 GB
- Connectivity
- PCI Express 3.0
- Weight
- 9 g
- Width
- 22 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- ADATA
- Category
- Internal Solid State Drive
- Model
- LEGEND 710
- Part numbers
- ALEG-710-2TCS, ALEG-710-512GCS, ALEG-710-1TCS, ALEG-710-256GCS
- EAN / UPC
- 4711085939470, 842243027174, 4711085937834, 842243027181 +4 more
- Also known as
- ADATA LEGEND 710 512 GB M.2 PCI Express 3.0 NVMe 3D NAND
Specifications
36 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| Interface | PCI Express 3.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Memory type | 3D NAND |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 2400 MB/s |
| Write speed | 1000 MB/s |
| Random read (4KB) | 90000 IOPS |
| Random write (4KB) | 150000 IOPS |
| Sequential read speed (ATTO) | 2400 MB/s |
| Sequential write speed (ATTO) | 1000 MB/s |
| Sequential read speed (CDM) | 2400 MB/s |
| Sequential write speed (CDM) | 1000 MB/s |
| Sequential read speed (AS SSD) | 2400 MB/s |
| Sequential write speed (AS SSD) | 1000 MB/s |
| PCI Express interface data lanes | x4 |
| ECC | Yes |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 130 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 80 mm |
| Height | 3.13 mm |
| Weight | 9 g |
Packaging data
| Specification | Value |
|---|---|

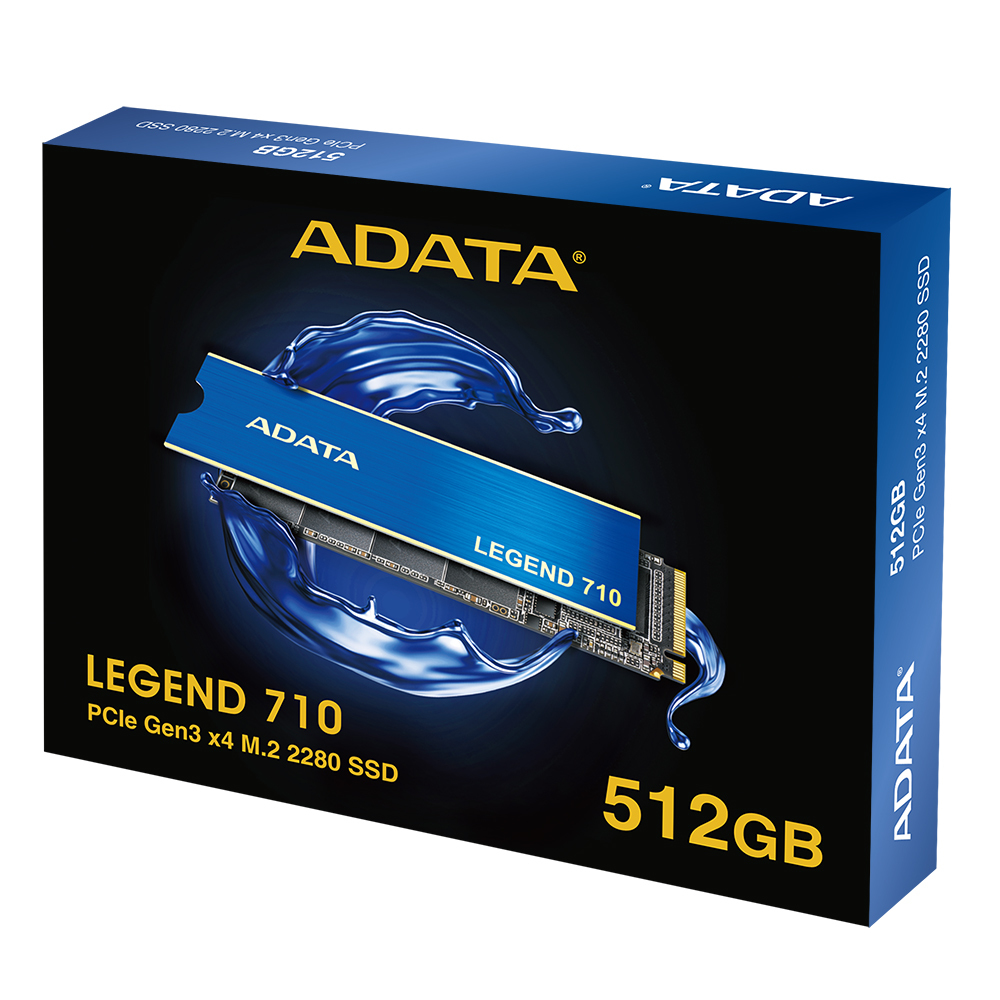

| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | 0 °C |
| Operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
