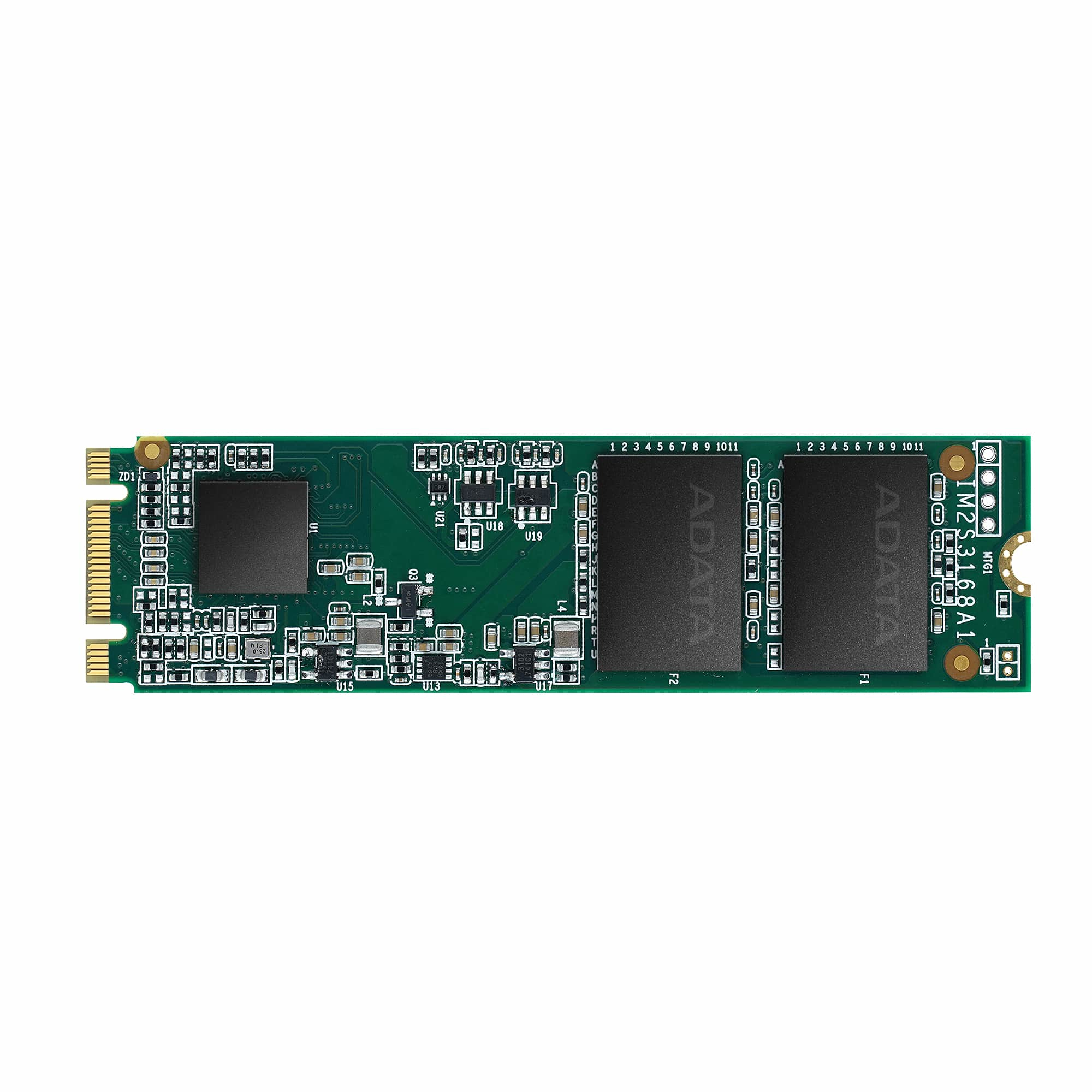

IM2S3168 3D TLC
Model IM2S3168 3D TLCPart no. IM2S3168-128GD
22 specifications
- Storage128 GB
- ConnectivitySerial ATA III
- Operating voltage3.3 V
- Width80 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 128 GB
- Connectivity
- Serial ATA III
- Operating voltage
- 3.3 V
- Width
- 80 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- ADATA
- Category
- Internal Solid State Drive
- Model
- IM2S3168 3D TLC
- Part number
- IM2S3168-128GD
- Also known as
- ADATA IM2S3168 3D TLC 128 GB M.2 Serial ATA III
Specifications
22 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 128 GB |
| SSD form factor | M.2 |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D TLC |
| Component for | PC |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Data transfer rate | 6 Gbit/s |
| Read speed | 540 MB/s |
| Write speed | 510 MB/s |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Windows operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 3.3 V |
| Power consumption (max) | 1.85 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 22 mm |
| Height | 3.5 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating vibration | 20 G |
| Operating shock | 1500 G |
