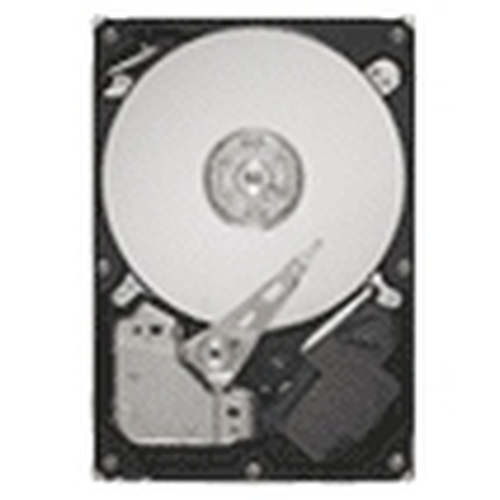

Seagate SV35 Series 7200.2 160GB SATA II 25pk
Model SV35 Series 7200.2 160GB SATA II 25pkPart no. ST3160815SV-25PK
26 specifications
- Storage160 GB
- ConnectivitySerial ATA II
- Weight345 g
- Operating voltage5 / 12 V
- Operating temperature (T-T)0 - 60 °C
- Width101.6 mm
Overview
- Storage
- 160 GB
- Connectivity
- Serial ATA II
- Weight
- 345 g
- Operating voltage
- 5 / 12 V
- Operating temperature (T-T)
- 0 - 60 °C
- Width
- 101.6 mm
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- SV35 Series 7200.2 160GB SATA II 25pk
- Part number
- ST3160815SV-25PK
- Also known as
- Seagate DB35 Series SV35 Series 7200.2 160GB SATA II 25pk internal hard drive 7200 RPM 8 MB 3.5" Serial ATA II
Specifications
26 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 160 GB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA II |
| Component for | Surveillance system |
| Storage drive buffer size | 8 MB |
| Read seek time | 17 ms |
| Write seek time | 14 ms |
| Track to track seek time | 1 ms |
| Bytes per sector | 512 |
| Start/stop cycles | 50000 |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating shock | 63 G |
| Non-operating shock | 300 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 20 mm |
| Weight | 345 g |
Other features
| Specification | Value |
|---|---|
| Power requirements | +5V; +12V |
| Data transfer rate | 3 Gbit/s |
| Drive ready time | 5 s |
| Internal | Yes |
