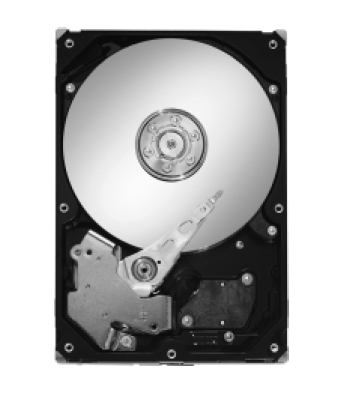

Seagate Barracuda ES 500GB, 7200rpm, SATA-II, 10pk
Model Barracuda ES 500GB, 7200rpm, SATA-II, 10pkPart no. ST3500630NS?10PK
26 specifications
- Storage500 GB
- Speed1030 Mbit/s
- ConnectivitySerial ATA II
- Weight720 g
- Power consumption (typical)15 W
- Operating temperature (T-T)5 - 55 °C
Overview
- Storage
- 500 GB
- Speed
- 1030 Mbit/s
- Connectivity
- Serial ATA II
- Weight
- 720 g
- Power consumption (typical)
- 15 W
- Operating temperature (T-T)
- 5 - 55 °C
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- Barracuda ES 500GB, 7200rpm, SATA-II, 10pk
- Part number
- ST3500630NS?10PK
- Also known as
- Seagate Desktop HDD Barracuda ES 500GB, 7200rpm, SATA-II, 10pk internal hard drive 16 MB 3.5" Serial ATA II
Specifications
26 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 500 GB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Serial ATA II |
| Storage drive buffer size | 16 MB |
| Read seek time | 9.5 ms |
| Write seek time | 8.5 ms |
| Track to track seek time | 0.8 ms |
| Average latency | 4.16 ms |
| Bytes per sector | 512 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 15 W |
| Operating voltage | 5 / 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating altitude | -60.96 - 3048 m |
| Non-operating altitude | -60.96 - 12192 m |
| Operating shock | 63 G |
| Non-operating shock | 225 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 720 g |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 3 Gbit/s |
| Internal | Yes |
| Maximum data transfer rate | 1030 Mbit/s |
| Sustained data rate | 72 MB/s |
