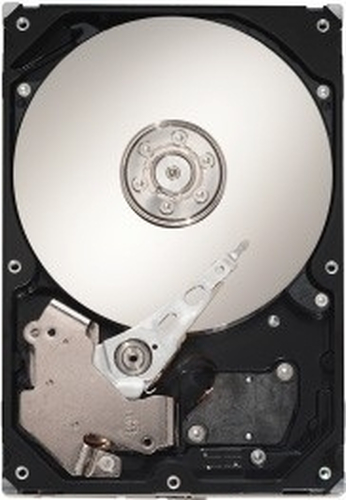

Seagate Barracuda 7200.10 80GB Ultra ATA/100
Model Barracuda 7200.10 80GB Ultra ATA/100Part no. ST380215A?20PK
23 specifications
- Storage80 GB
- ConnectivityUltra-ATA/100
- Weight356 g
- Power consumption (standby)0.8 W
- Operating temperature (T-T)0 - 60 °C
- Width101.6 mm
Overview
- Storage
- 80 GB
- Connectivity
- Ultra-ATA/100
- Weight
- 356 g
- Power consumption (standby)
- 0.8 W
- Operating temperature (T-T)
- 0 - 60 °C
- Width
- 101.6 mm
- Brand
- Seagate
- Category
- Internal Hard Drive
- Model
- Barracuda 7200.10 80GB Ultra ATA/100
- Part number
- ST380215A?20PK
- Also known as
- Seagate Desktop HDD Barracuda 7200.10 80GB Ultra ATA/100 internal hard drive 7200 RPM 2 MB 3.5" Ultra-ATA/100
Specifications
23 specifications in 5 groups
Features
| Specification | Value |
|---|---|
| HDD capacity | 80 GB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Interface | Ultra-ATA/100 |
| Storage drive buffer size | 2 MB |
| HDD number of heads | 2 |
| Track to track seek time | 8.5 ms |
| Average latency | 4.16 ms |
| Bytes per sector | 512 |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.8 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 2.8 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Non-operating shock | 300 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 356 g |
Other features
| Specification | Value |
|---|---|
| Drive device, transfer rate | 100 MB/s |
| Internal | Yes |
| Compatible products | PCs |
| Acoustic pressure emissions | 2.7 dB |
