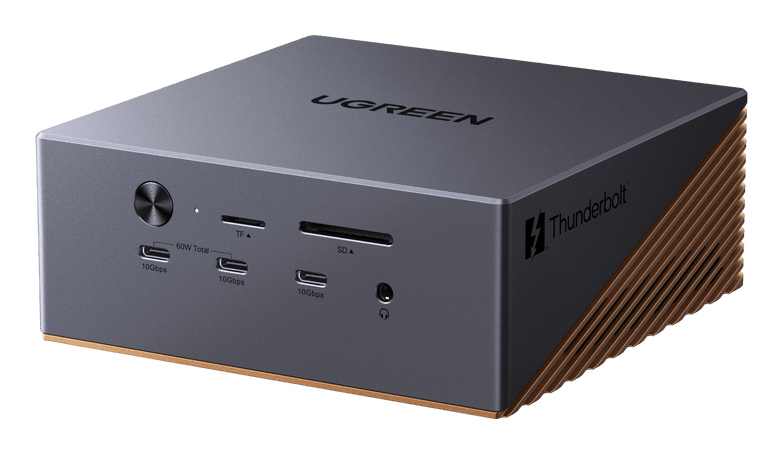

Revodok Maxidok 17-in-1
Model Revodok Maxidok 17-in-1Part no. 85590FEAN 850079546493
23 specifications
- ColourBrown, Grey
- Ports quantity17
- Data transfer rate120000 Mbit/s
- Ethernet interface type2.5 Gigabit Ethernet
- Power consumption (typical)240 W
- Windows operating systems supportedYes
Overview
- Colour
- Brown, Grey
- Ports quantity
- 17
- Data transfer rate
- 120000 Mbit/s
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Power consumption (typical)
- 240 W
- Windows operating systems supported
- Yes
- Brand
- Ugreen
- Category
- Interface Hub
- Model
- Revodok Maxidok 17-in-1
- Part number
- 85590F
- EAN / UPC
- 850079546493, 6941876283835
- Also known as
- Ugreen Revodok Maxidok 17-in-1 Thunderbolt 5 120000 Mbit/s Brown, Grey
Specifications
23 specifications in 6 groups

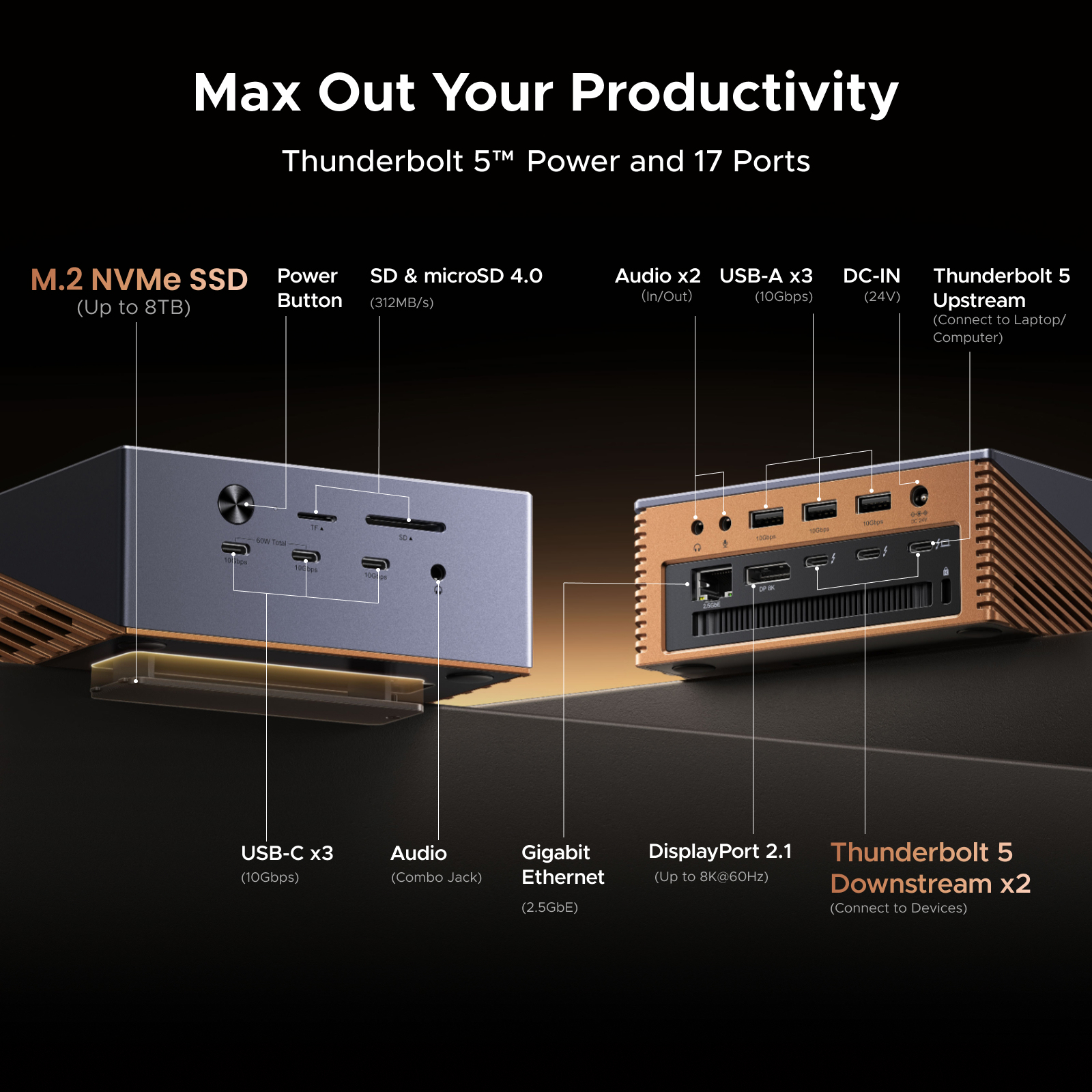

Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 17 |
| Host interface | Thunderbolt 5 |

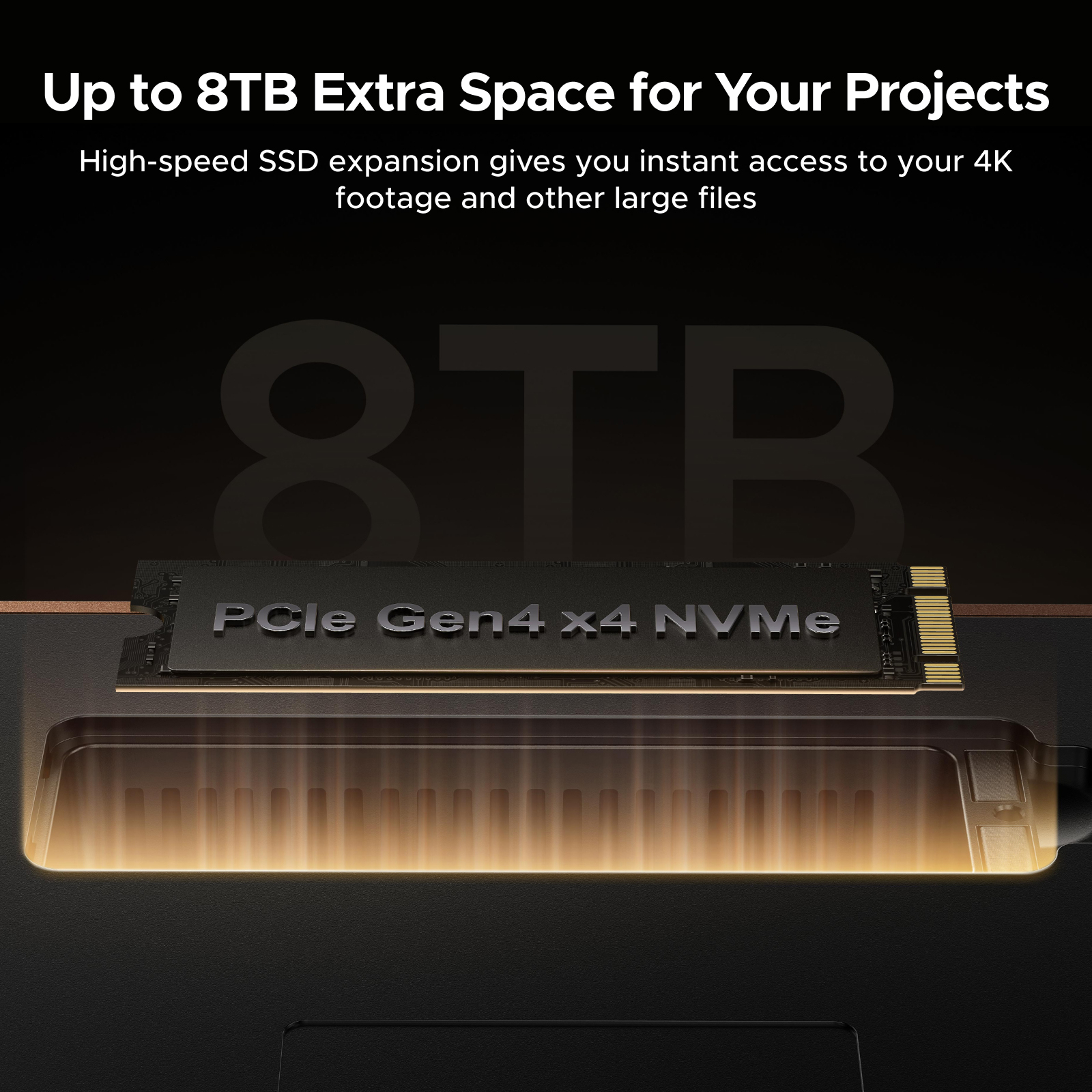

| Hub interfaces | DisplayPort, M.2, RJ-45, PCI Express, Thunderbolt 5, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 2.1 |
| Thunderbolt ports quantity | 3 |
| Combo headphone/mic port | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| DC-in jack | Yes |
Features
| Specification | Value |
|---|---|

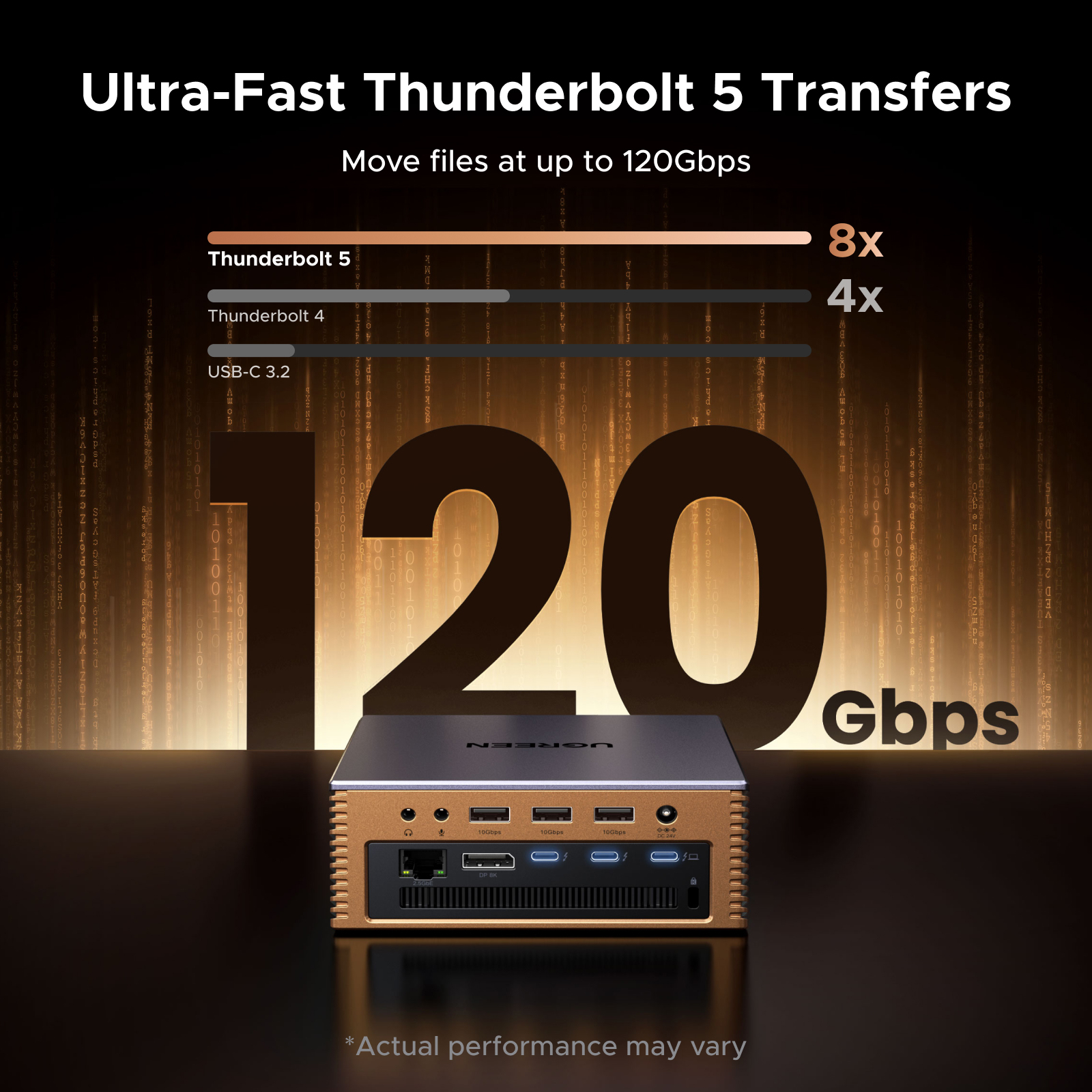

| Data transfer rate | 120000 Mbit/s |
| Product colour | Brown, Grey |
| USB Power Delivery (USB PD) | Yes |

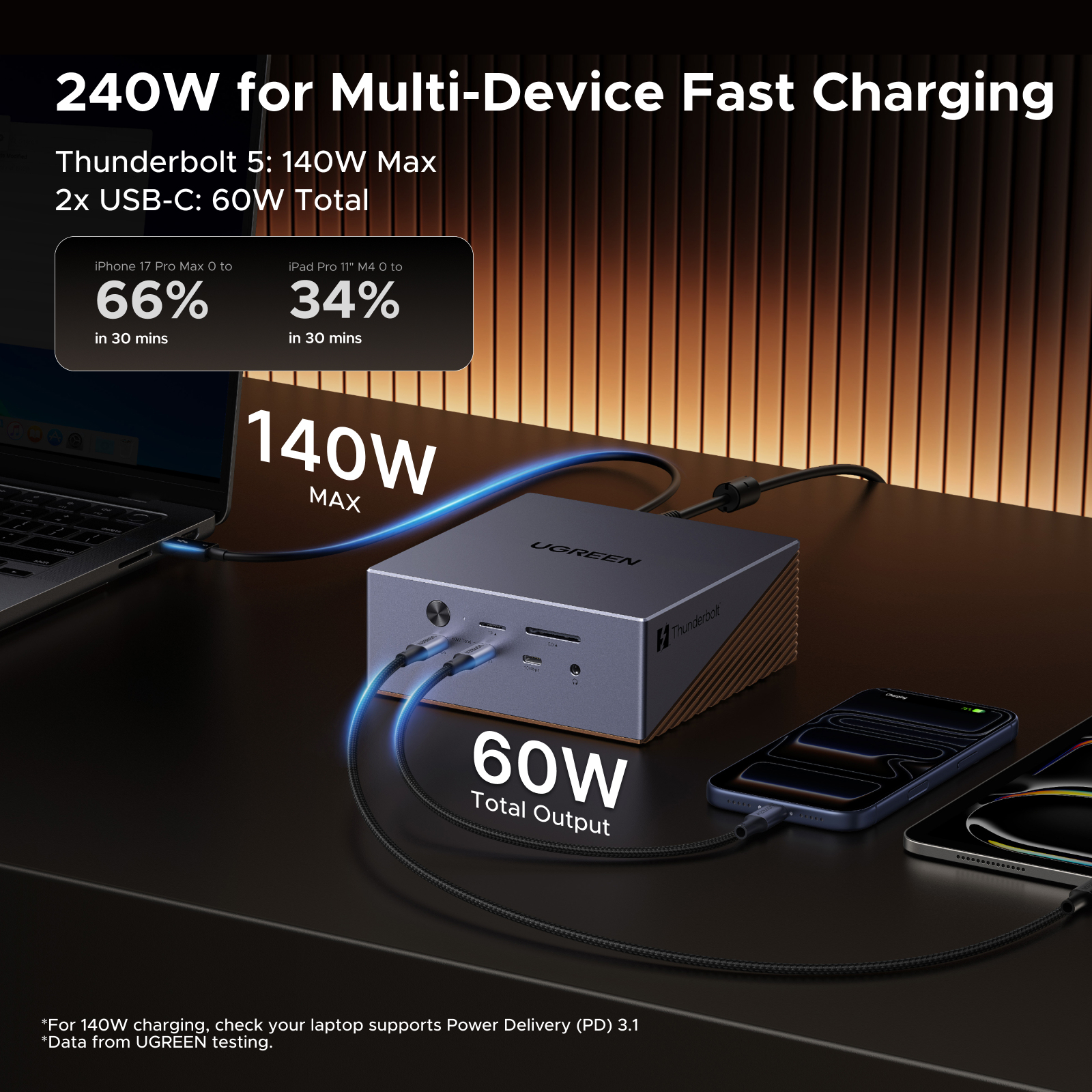

| USB Power Delivery up to | 140 W |

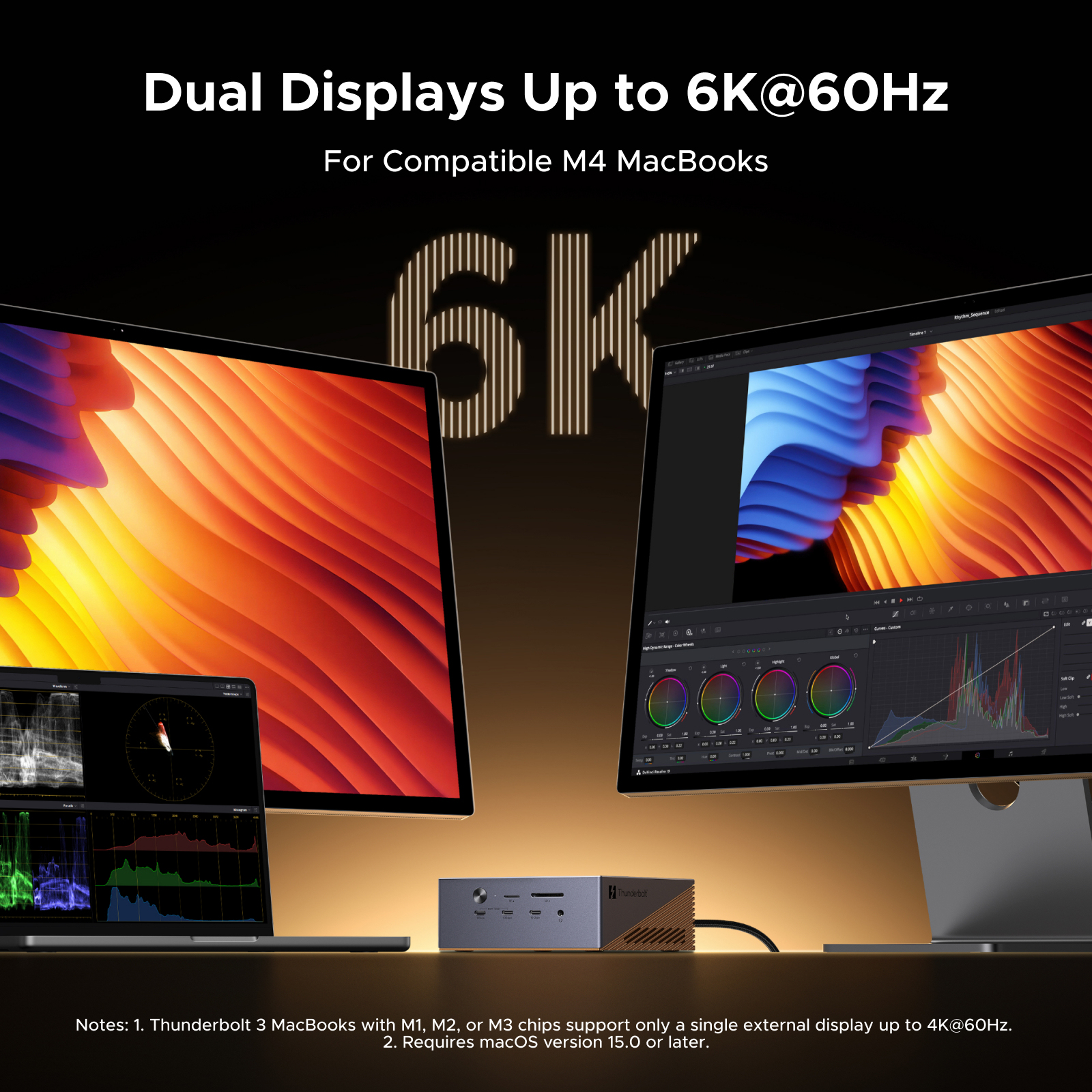

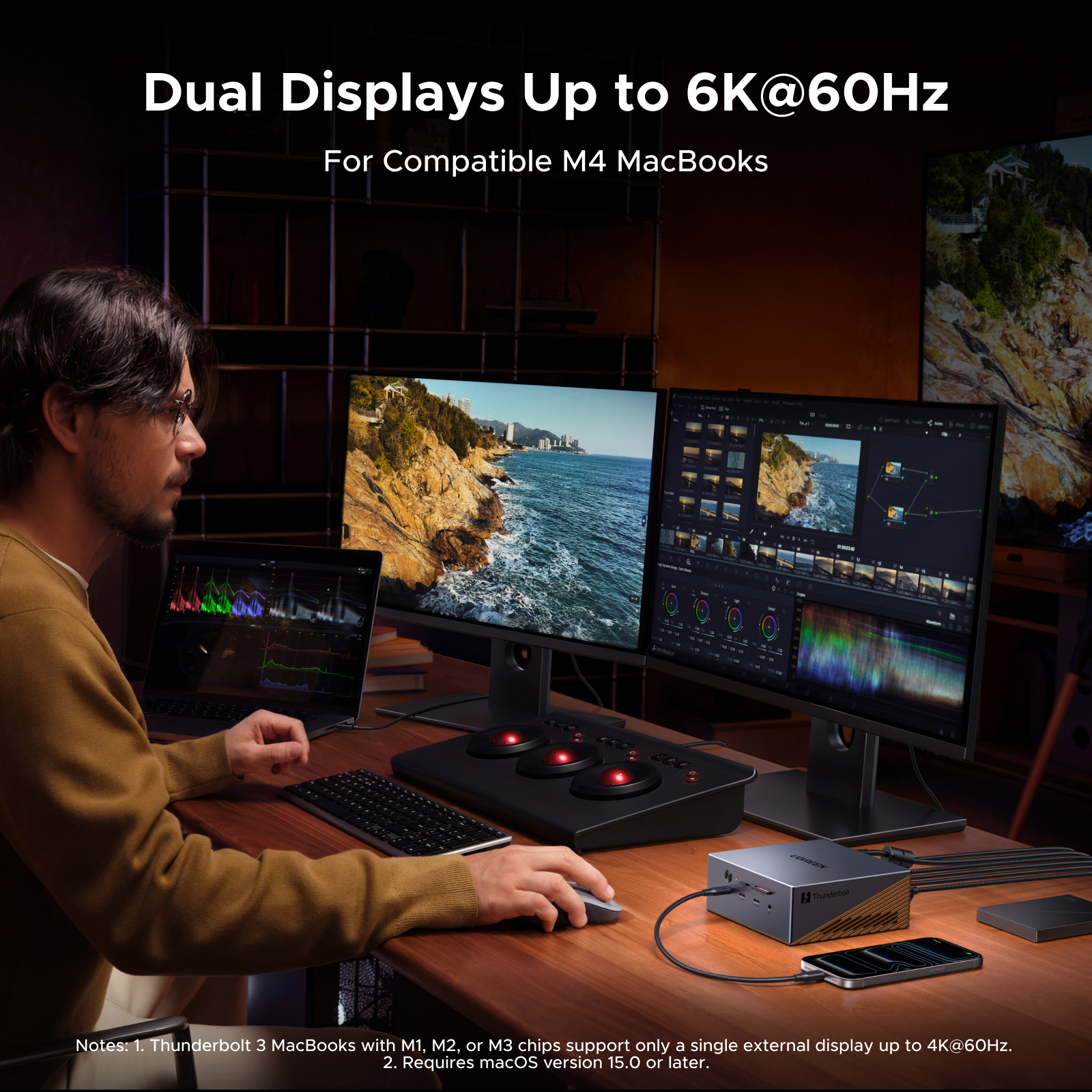

| Number of displays supported | 2 |
Network
| Specification | Value |
|---|---|

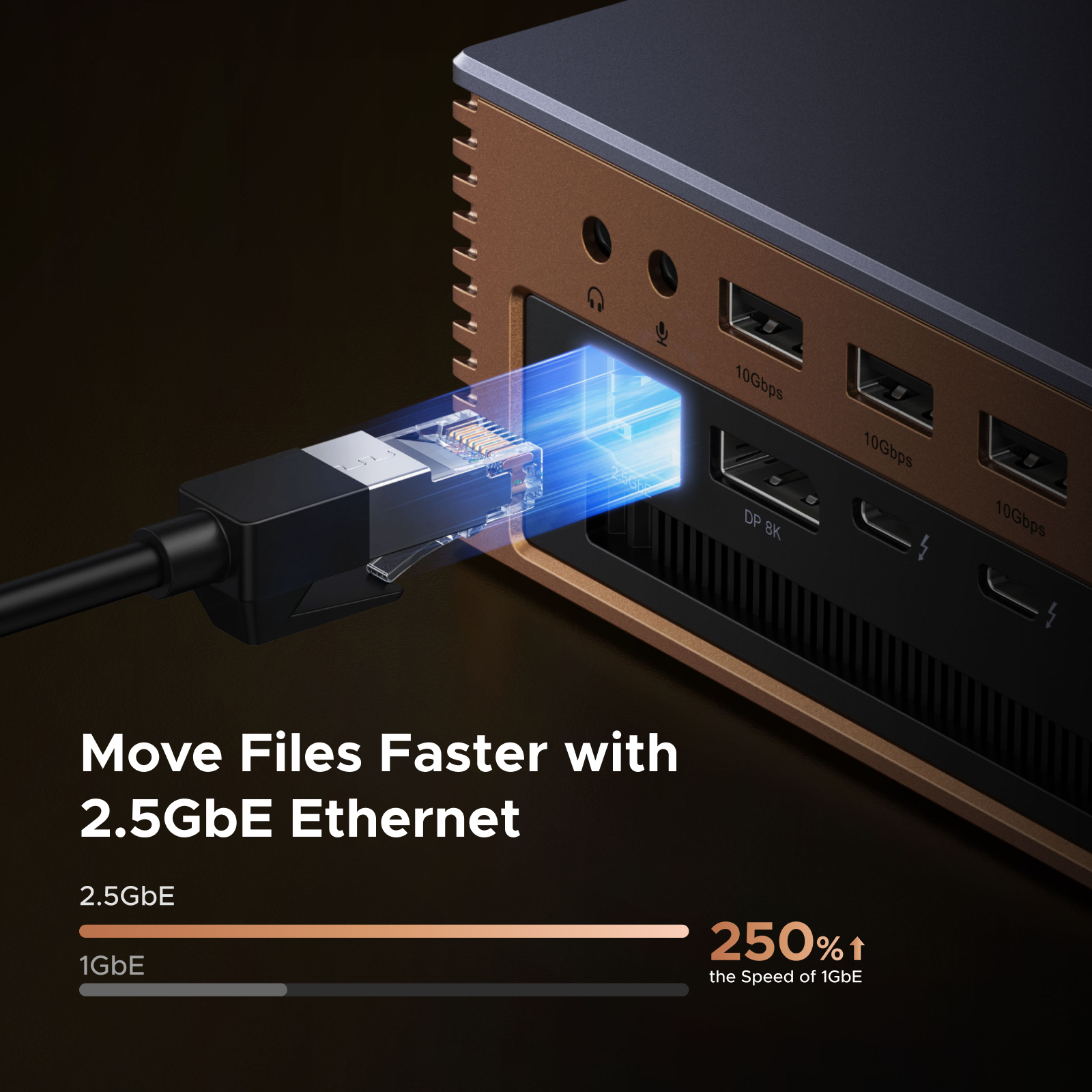

| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 240 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
