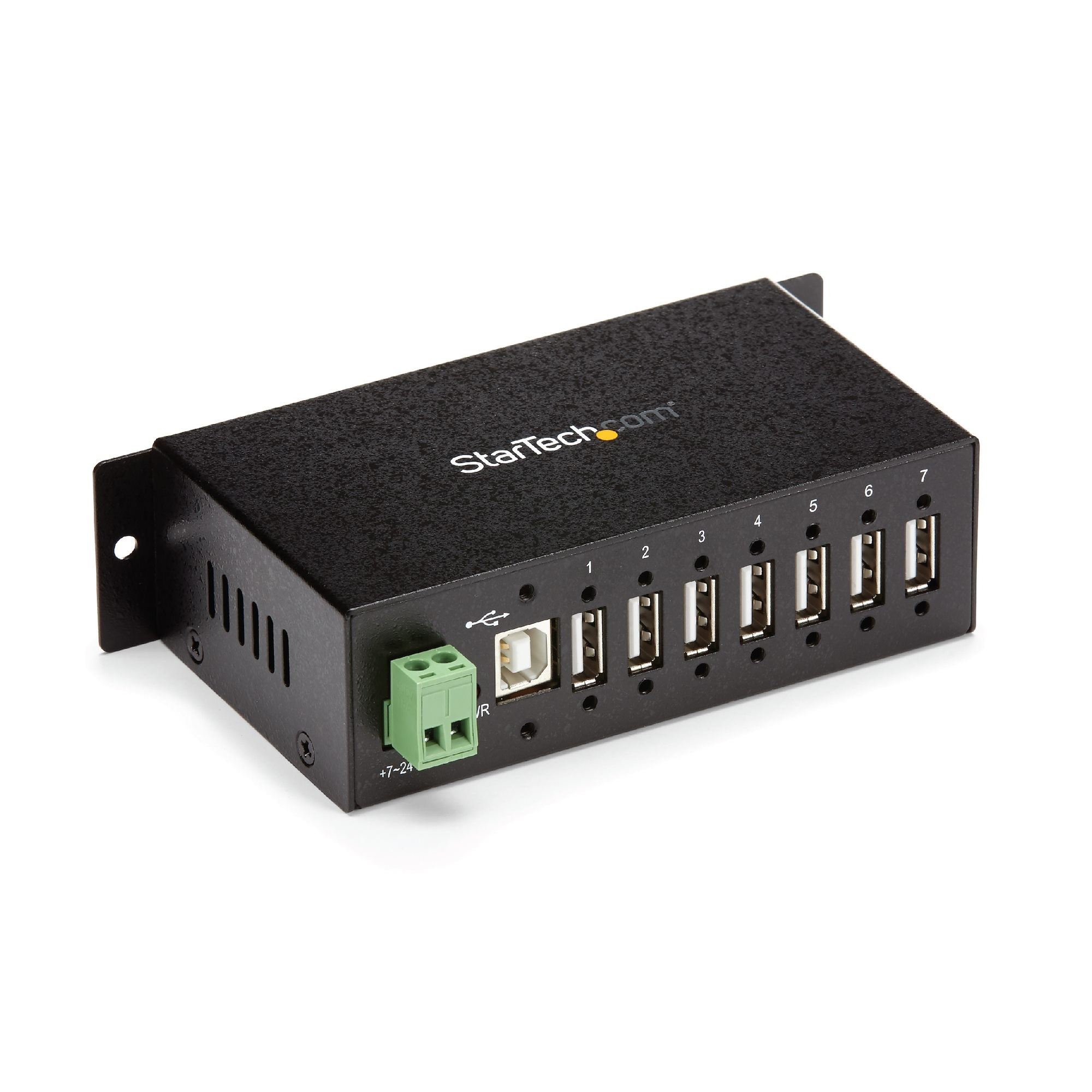

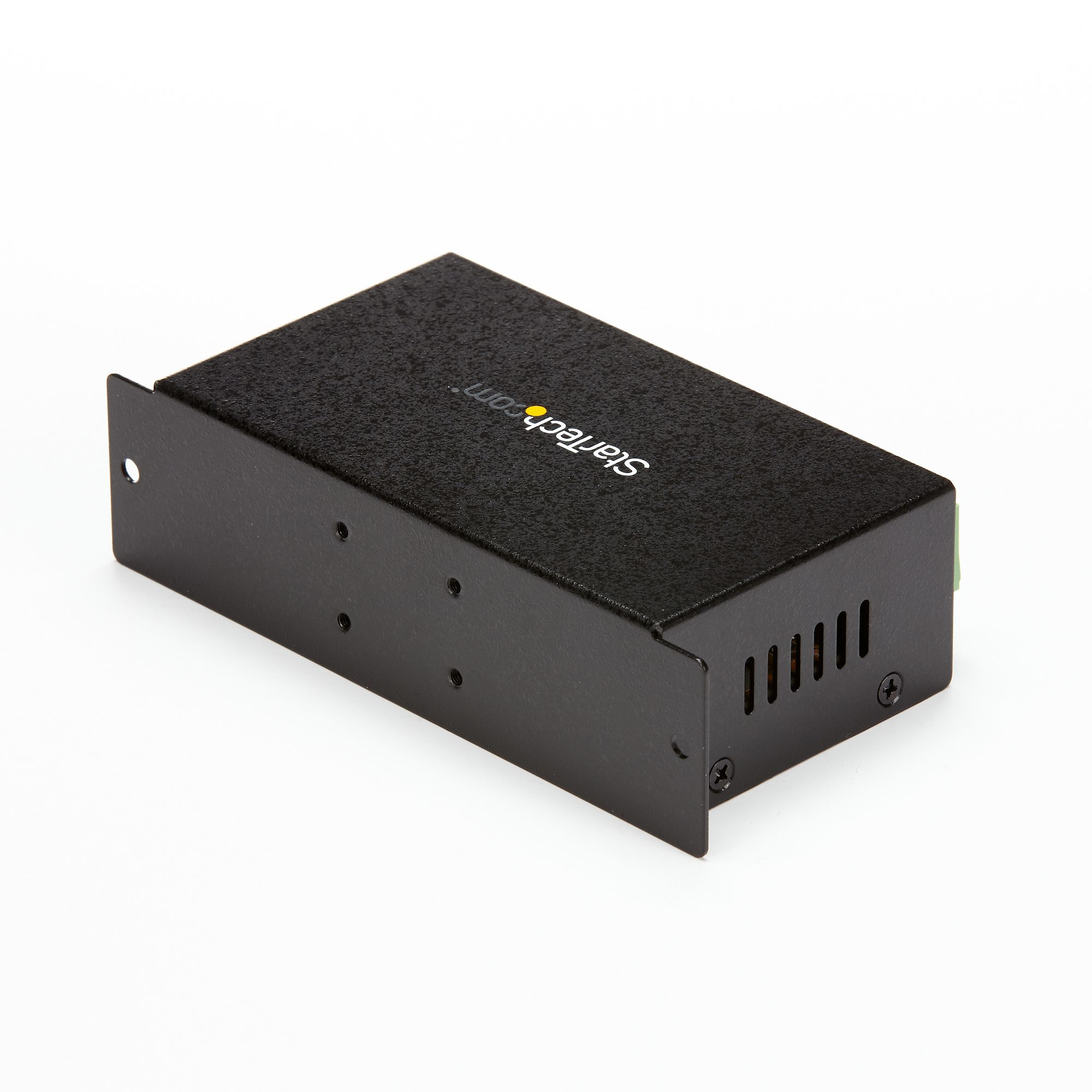

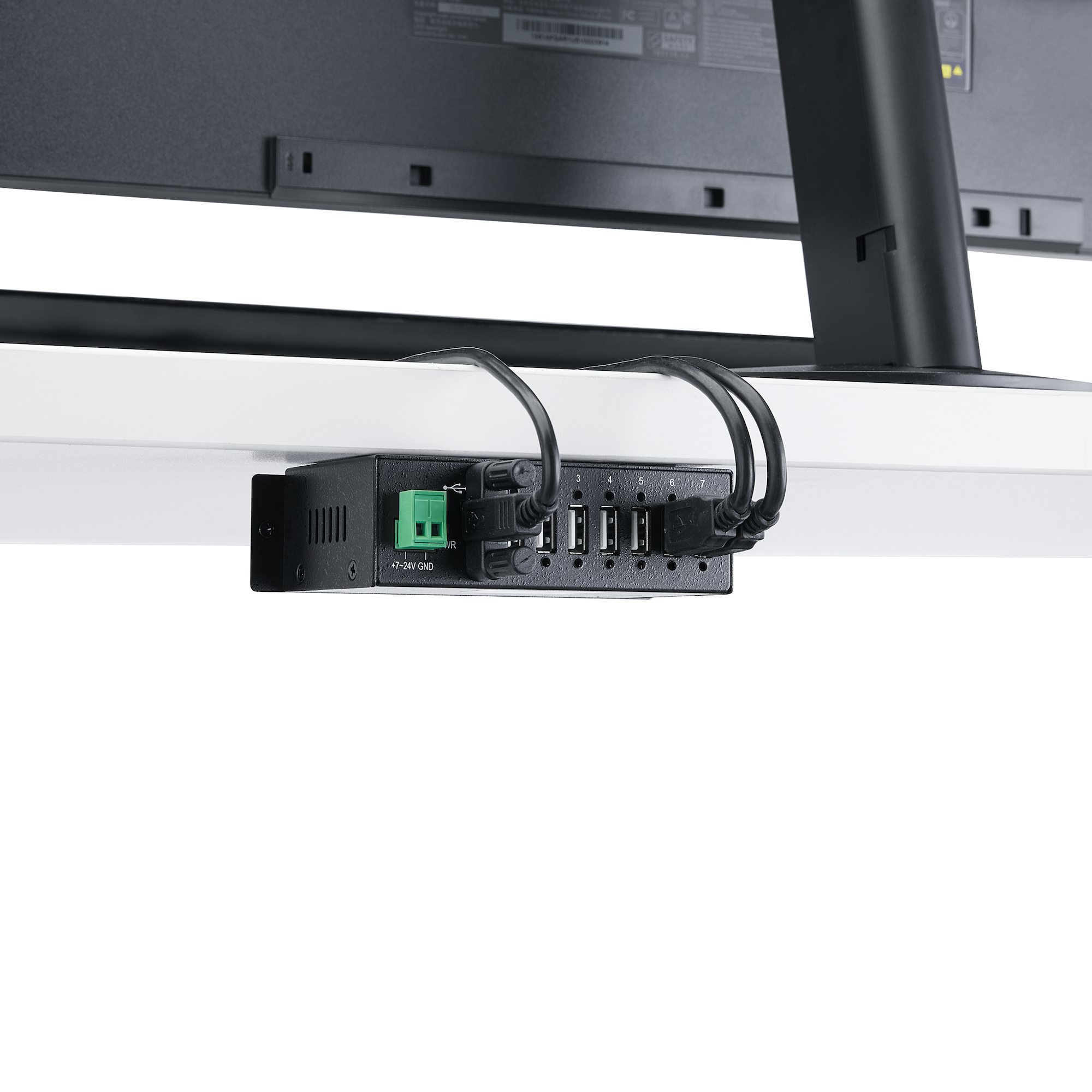

7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD Protection &
350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB
Model ST7200USBMEAN 806291853789
37 specifications
- Weight283 g
- ColourBlack
- Ports quantity7
- Data transfer rate480 Mbit/s
- Input voltage7 - 24 V
- Width61.5 mm
Overview
- Weight
- 283 g
- Colour
- Black
- Ports quantity
- 7
- Data transfer rate
- 480 Mbit/s
- Input voltage
- 7 - 24 V
- Width
- 61.5 mm
- Brand
- StarTech.com
- Category
- Interface Hub
- Model
- ST7200USBM
- Part number
- ST7200USBM
- EAN / UPC
- 806291853789, 065030837910, 132017587516, 151903524251 +13 more
- Also known as
- StarTech.com 7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB
Specifications
37 specifications in 10 groups

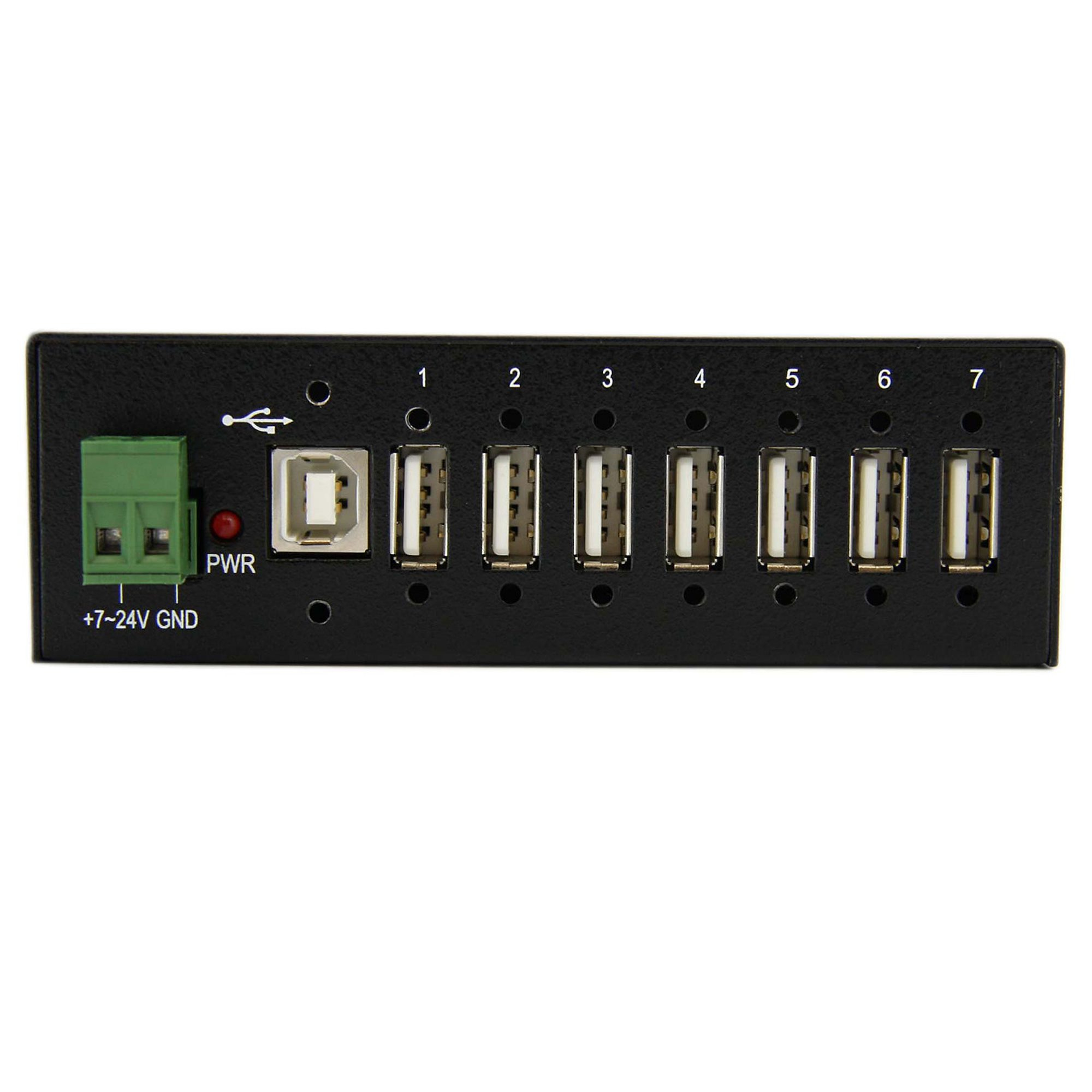

Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 7 |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 7 |
| Card reader integrated | No |
| Terminal block port | Yes |
| DC-in jack | No |
Features
| Specification | Value |
|---|---|
| Data transfer rate | 480 Mbit/s |
| Housing material | Steel |
| Product colour | Black |
| Surge protection | Yes |
| Hot-swap | Yes |
| LED indicators | Yes |
| Plug and Play | Yes |
| Certification | CE, FCC, RoHS, REACH, TAA |
Power
| Specification | Value |
|---|---|
| Input voltage | 7 - 24 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61.5 mm |
| Depth | 133 mm |
| Height | 36.3 mm |
| Weight | 283 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 218 mm |
| Package depth | 151 mm |
| Package height | 54 mm |
| Package weight | 500 g |

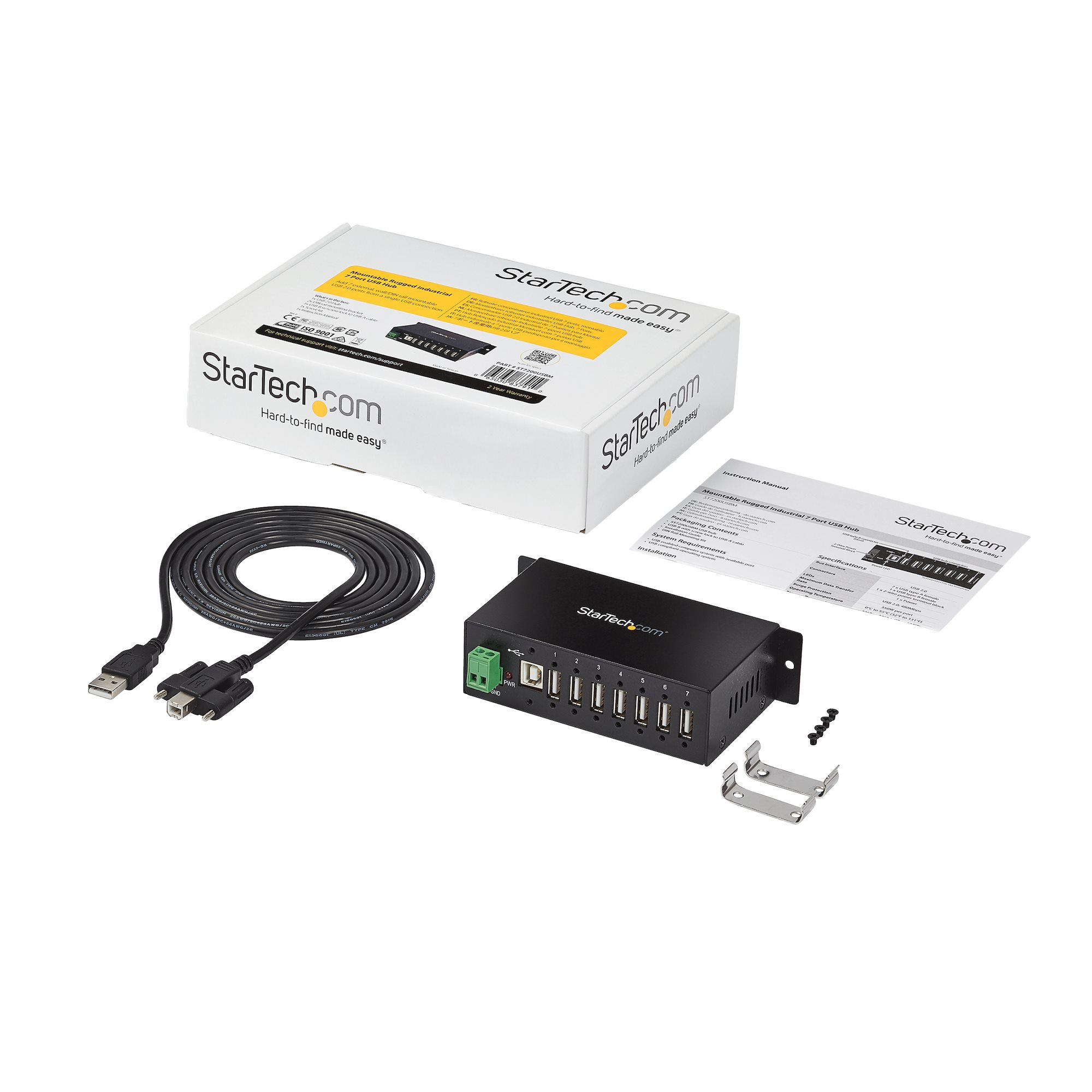

Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| DIN rail kit included | Yes |
| Manual | Yes |

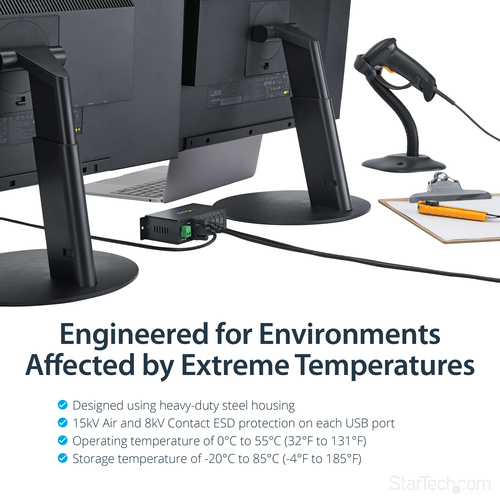

Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 170227 h |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 524 mm |
| Master (outer) case length | 434 mm |
| Master (outer) case height | 272 mm |
| Products per master (outer) case | 25 pc(s) |
| Harmonized System (HS) code | 84719000 |
Other features
| Specification | Value |
|---|---|
| Chipset | Terminus - FE2.1 |
