4-Port USB 2.0 Hub - Metal Industrial USB-A Hub - Din Rail, Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub
Model ST4200USBMEAN 777785602254
35 specifications
- Weight207 g
- ColourBlack
- Ports quantity4
- Data transfer rate480 Mbit/s
- Input voltage7 - 24 V
- Width57.3 mm
Overview
- Weight
- 207 g
- Colour
- Black
- Ports quantity
- 4
- Data transfer rate
- 480 Mbit/s
- Input voltage
- 7 - 24 V
- Width
- 57.3 mm
- Brand
- StarTech.com
- Category
- Interface Hub
- Model
- ST4200USBM
- Part number
- ST4200USBM
- EAN / UPC
- 777785602254, 065030831024, 069991942386, 071020316846 +13 more
- Also known as
- StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub - Din Rail, Wall or Desk Mountable USB Data Hub - TAA Compliant USB Expander Hub
Specifications
35 specifications in 10 groups

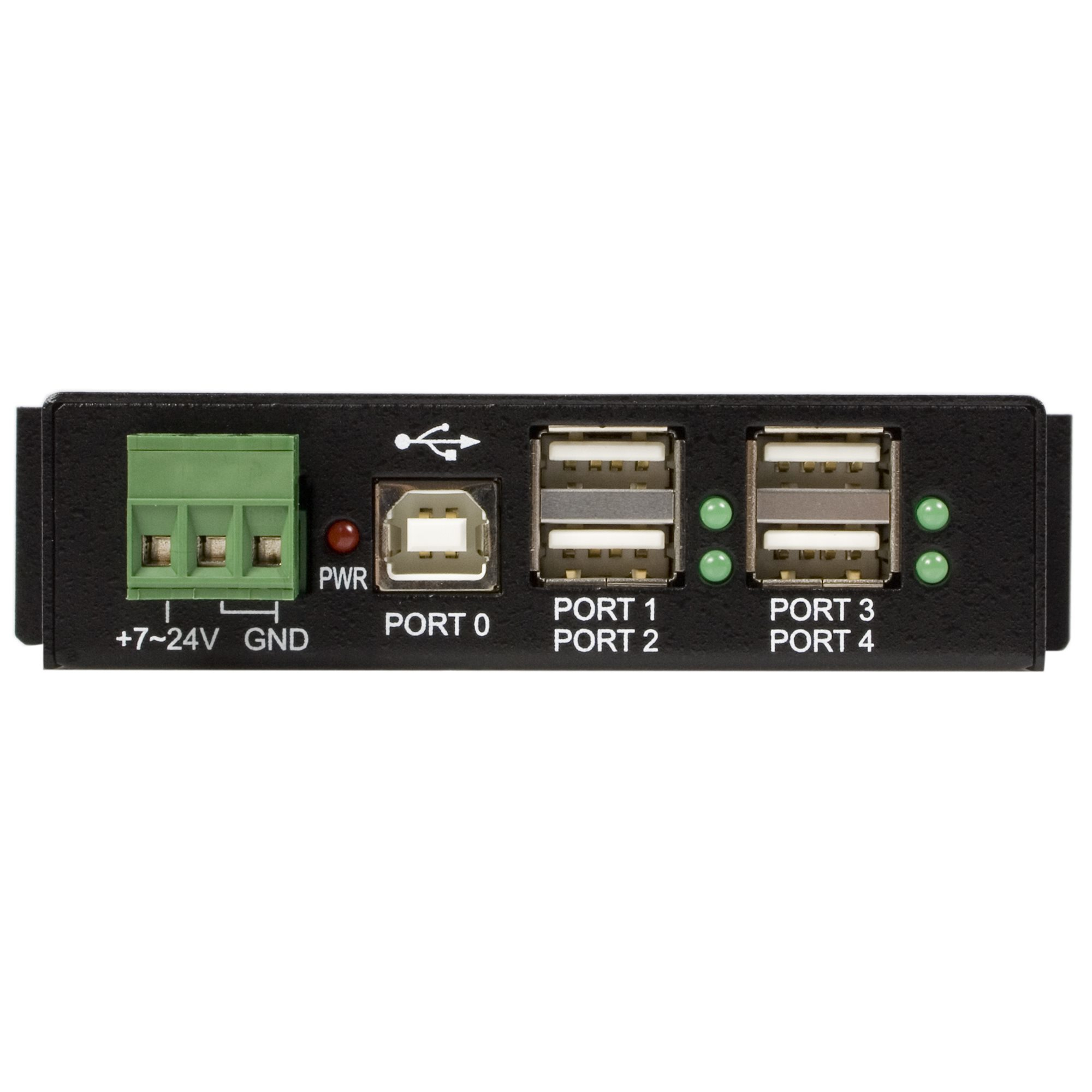

Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 4 |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 4 |
| Card reader integrated | No |
| Terminal block port | Yes |
| DC-in jack | No |
Features
| Specification | Value |
|---|---|
| Data transfer rate | 480 Mbit/s |
| Housing material | Steel |
| Product colour | Black |
| LED indicators | Power |
| Plug and Play | Yes |
| Certification | CE, FCC, TAA, RoHS |
Power
| Specification | Value |
|---|---|
| Input voltage | 7 - 24 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 57.3 mm |
| Depth | 114 mm |
| Height | 26 mm |
| Weight | 207 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 145 mm |
| Package depth | 205 mm |
| Package height | 39 mm |
| Package weight | 400 g |

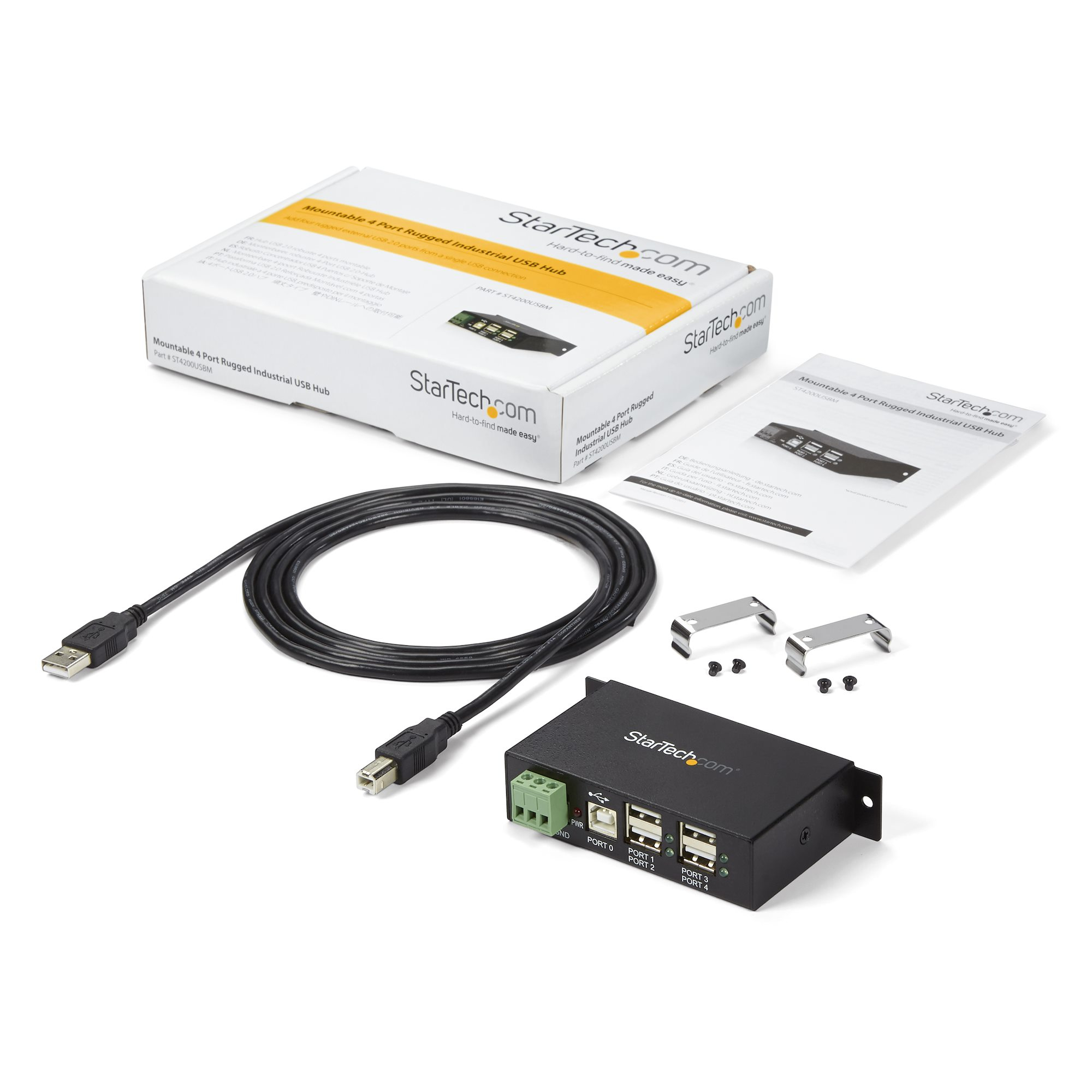

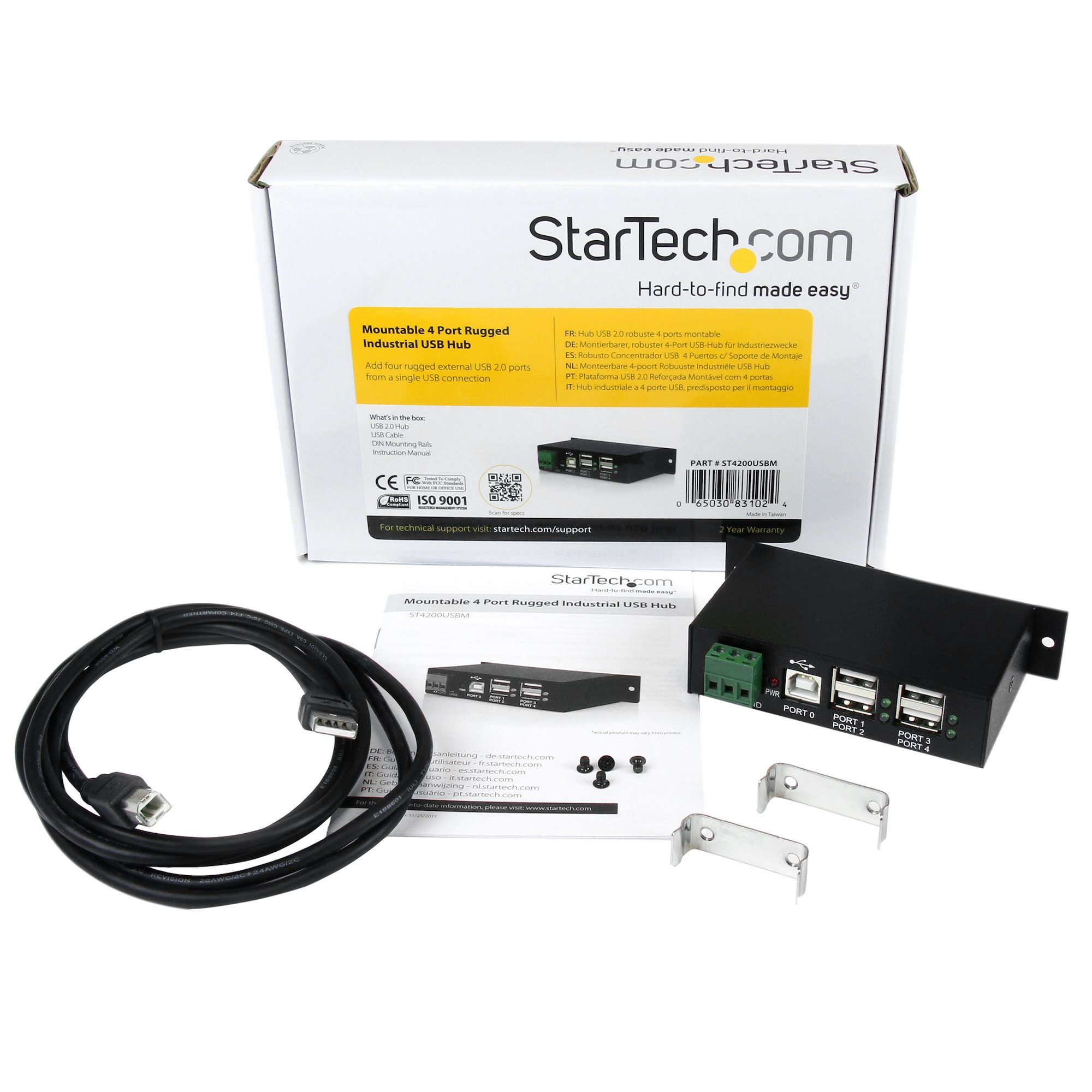

Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| DIN rail kit included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 193317 h |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 445 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 335 mm |
| Products per master (outer) case | 50 pc(s) |
| Harmonized System (HS) code | 84719000 |
Other features
| Specification | Value |
|---|---|
| Chipset | Renesas/NEC - µPD720114 |
