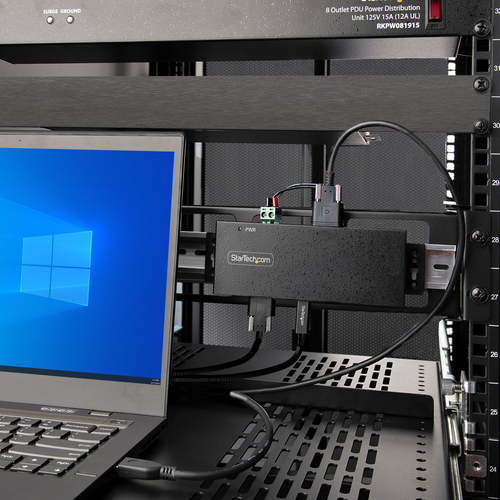

StarTech.com 7-Port Industrial USB 10Gbps Hub with Power Adapter, Metal, Mountable, 5x USB-A and 2x USB-C Downstream Ports, ESD Protection, Powered USB Hub, TAA
StarTech.com

7-Port Industrial USB 10Gbps Hub with Power Adapter, Metal, Mountable, 5x USB-A and 2x USB-C Downstream Ports, ESD Protection, Powered USB Hub, TAA

Model HB31C5A2CMEEAN 065030889810

39 specifications
  • Weight300 g
  • ColourBlack
  • Ports quantity7
  • Data transfer rate10000 Mbit/s
  • Power supply typeDC
  • Width26 mm
See all specifications

Overview

Weight
300 g
Colour
Black
Ports quantity
7
Data transfer rate
10000 Mbit/s
Power supply type
DC
Width
26 mm
Brand
StarTech.com
Model
HB31C5A2CME
Part number
HB31C5A2CME
EAN / UPC
065030889810
Also known as
StarTech.com 7-Port Industrial USB 10Gbps Hub with Power Adapter, Metal, Mountable, 5x USB-A and 2x USB-C Downstream Ports, ESD Protection, Powered USB Hub, TAA

Specifications

39 specifications in 11 groups

Ports & interfaces

Ports quantity7
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfacesUSB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
Terminal block portYes
DC-in jackYes

Features

Data transfer rate10000 Mbit/s
Housing materialSteel
Product colourBlack
Surge protectionYes
Electrostatic Discharge (ESD) protection (air)15 kV
Electrostatic Discharge (ESD) protection (contact)8 kV
LED indicatorsYes

Power

Power supply typeDC
Input voltage100 - 240 V

Weight & dimensions

Width26 mm
Depth60 mm
Height178 mm
Weight300 g

Packaging data

Package width290 mm
Package depth187 mm
Package height70 mm
Package weight1.4 kg

Packaging content

AC adapter includedYes
Included power plug typesANZ, EU, JP, NA, UK
Cables includedUSB Type-A to USB Type-C, USB Type-C to USB Type-C
DIN rail kit includedYes
Quick start guideYes

Operational conditions

Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)5 - 95%

Performance

Mean time between failures (MTBF)163021.7 h

Logistics data

Master (outer) case width515 mm
Master (outer) case length390 mm
Master (outer) case height313 mm
Products per master (outer) case14 pc(s)

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)

Other features

ChipsetVIA/VLI VL822
