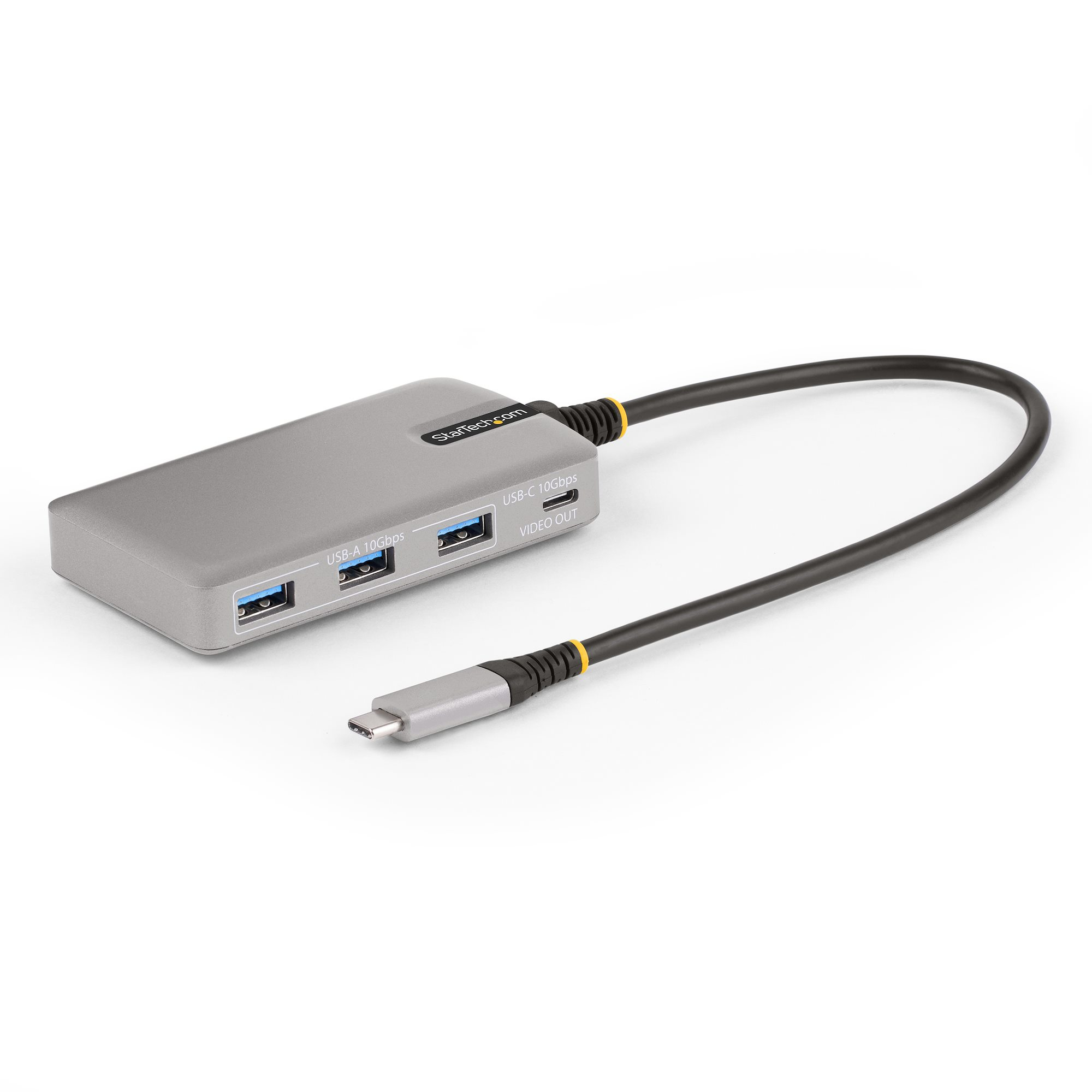

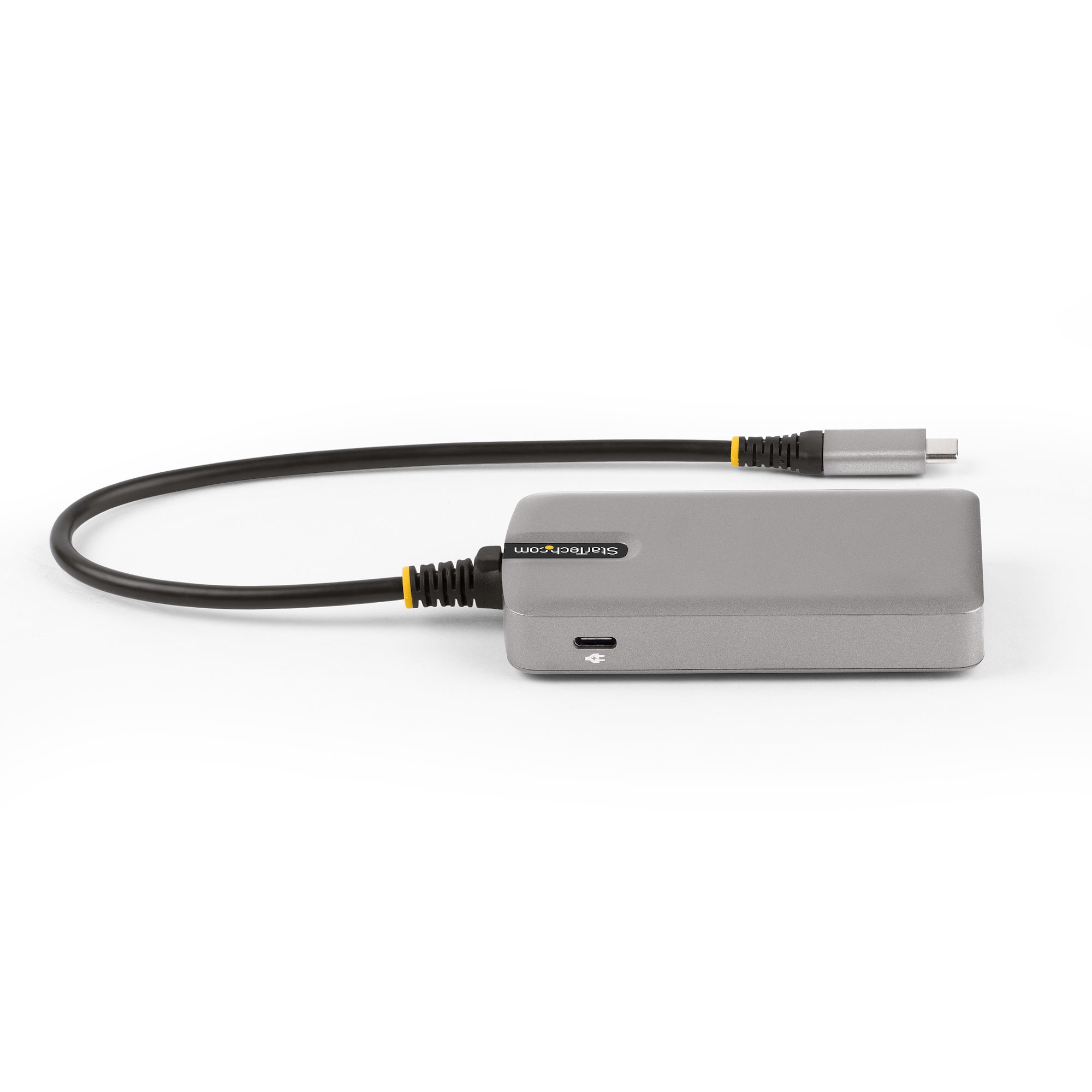

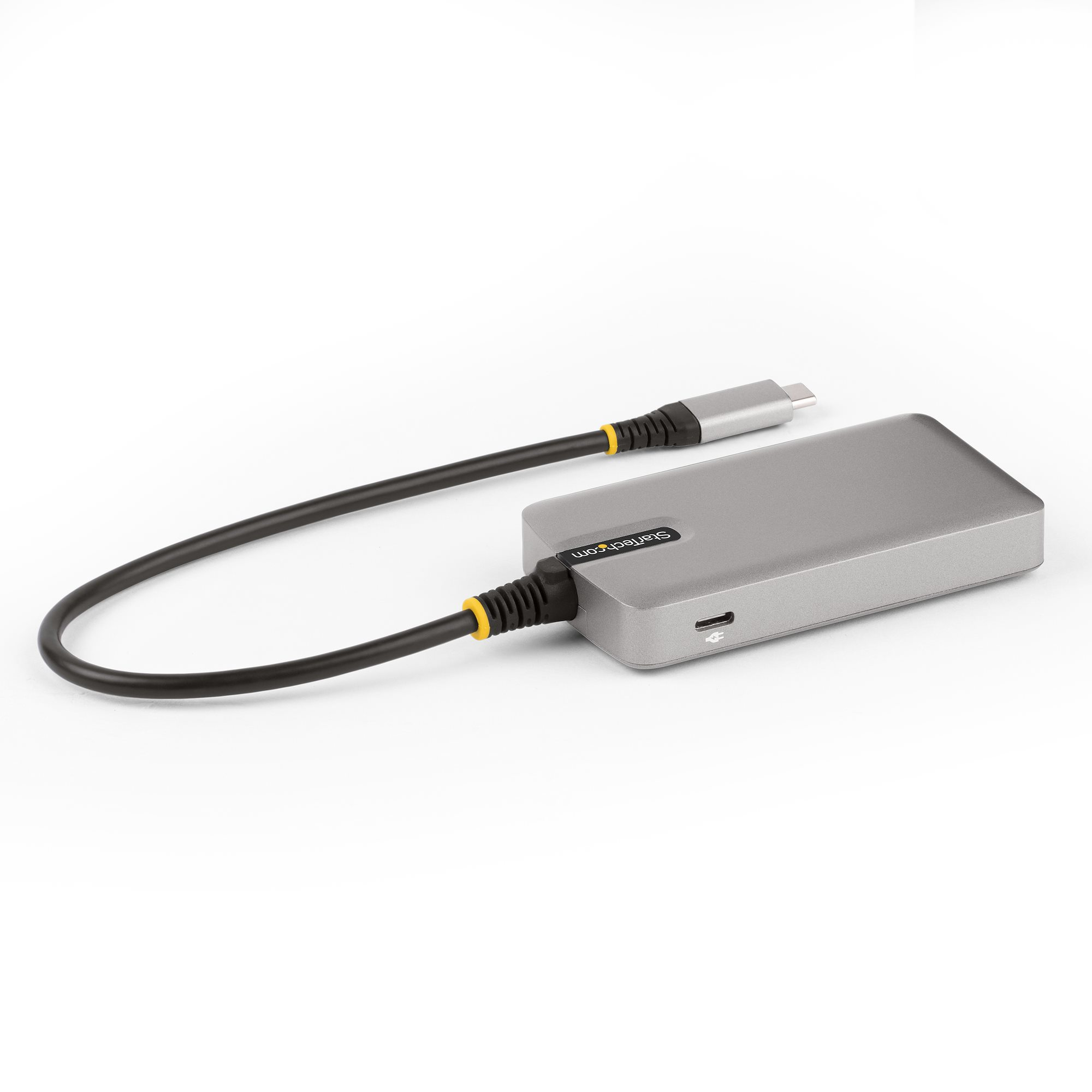

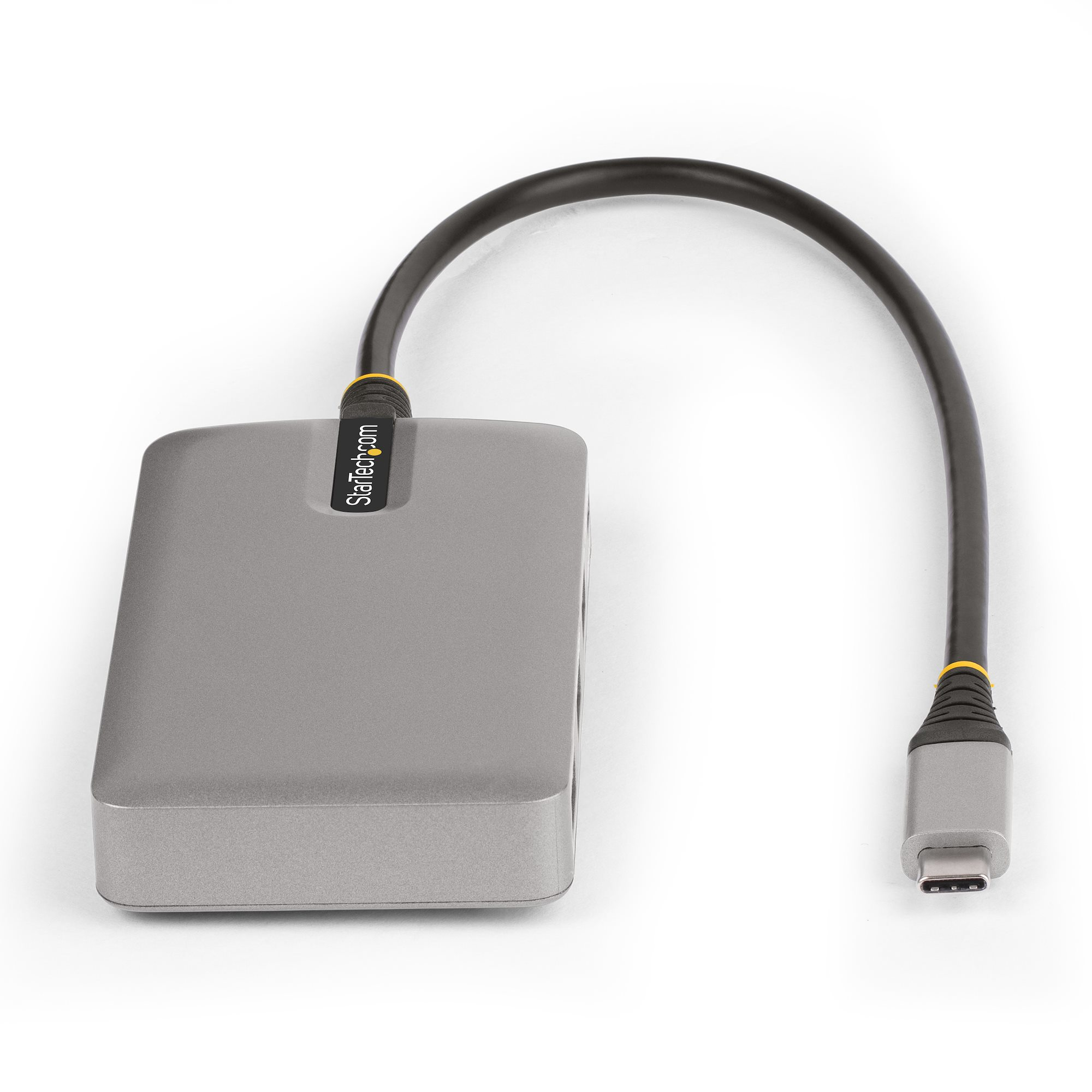

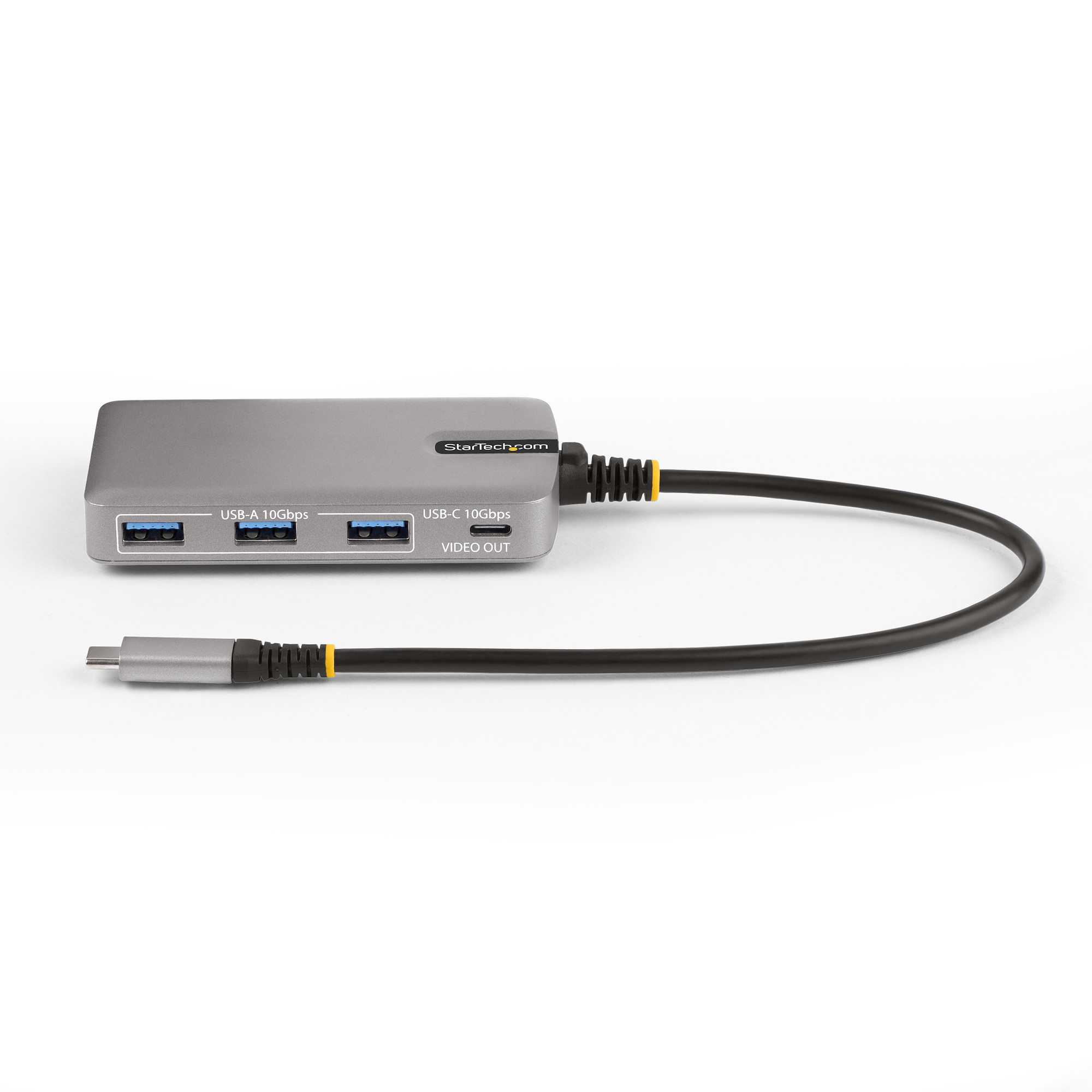

StarTech.com 4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K
StarTech.com

4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K

60Hz - 3x USB-A, 1x USB Type-C, 100W Power Delivery Pass-Through, USB 3.2 10Gbps, 1ft/30cm

Model HB31C3A1CDPPD3EAN 065030893022

40 specifications
  • Weight98 g
  • ColourSilver
  • Ports quantity4
  • Data transfer rate10000 Mbit/s
  • UASP supportYes
  • Power supply typeUSB
See all specifications

Overview

Weight
98 g
Colour
Silver
Ports quantity
4
Data transfer rate
10000 Mbit/s
UASP support
Yes
Power supply type
USB
Brand
StarTech.com
Model
HB31C3A1CDPPD3
Part number
HB31C3A1CDPPD3
EAN / UPC
065030893022
Also known as
StarTech.com 4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K 60Hz - 3x USB-A, 1x USB Type-C, 100W Power Delivery Pass-Through, USB 3.2 10Gbps, 1ft/30cm

Specifications

40 specifications in 12 groups

Ports & interfaces

Ports quantity4
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfacesUSB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
DisplayPort version1.4
USB Type-C DisplayPort Alternate ModeYes
Card reader integratedNo
DC-in jackNo

Features

Data transfer rate10000 Mbit/s
Maximum refresh rate60 Hz
Supported graphics resolutions4096 x 2160
Product colourSilver
USB Power Delivery (USB PD)Yes
USB Power Delivery revision3.0
USB Power Delivery up to100 W
Overcurrent protectionYes

Network

UASP supportYes

Power

Power supply typeUSB
Power consumption (max)18 W

Weight & dimensions

Width54 mm
Depth98 mm
Height16 mm
Weight98 g

Packaging data

Package width173 mm
Package depth146 mm
Package height33 mm
Package weight133 g

Packaging content

Quick start guideYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Sustainability

Sustainability complianceYes

Logistics data

Master (outer) case width483 mm
Master (outer) case length346 mm
Master (outer) case height465 mm
Products per master (outer) case70 pc(s)

Technical details

Compliance certificatesCE, RoHS

Other features

ChipsetVIA - VL103-Q4, VIA - VL822-Q7, Parade - PS8802, Parade - FL7102-2L0, TMI - IM2605, Realtek - RTD2186
