7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD &
350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mounta
Model HB20A7AMEEAN 065030878616
35 specifications
- Weight404 g
- ColourBlack
- Ports quantity7
- Data transfer rate480 Mbit/s
- Power consumption (typical)28 W
- Width63 mm
Overview
- Weight
- 404 g
- Colour
- Black
- Ports quantity
- 7
- Data transfer rate
- 480 Mbit/s
- Power consumption (typical)
- 28 W
- Width
- 63 mm
- Brand
- StarTech.com
- Category
- Interface Hub
- Model
- HB20A7AME
- Part number
- HB20A7AME
- EAN / UPC
- 065030878616
- Also known as
- StarTech.com 7-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mounta
Specifications
35 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 7 |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 7 |
| Terminal block port | Yes |
Features
| Specification | Value |
|---|---|
| Data transfer rate | 480 Mbit/s |
| Housing material | Metal |
| Product colour | Black |
| Surge protection | Yes |
| LED indicators | Power |
| Plug and Play | Yes |
| Certification | CE, FCC, TAA, RoHS, REACH |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 28 W |
| Input current | 4 A |
| Input voltage | 7 - 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 63 mm |
| Depth | 130 mm |
| Height | 42 mm |
| Weight | 404 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 166 mm |
| Package depth | 242 mm |
| Package height | 55 mm |
| Package weight | 600 g |

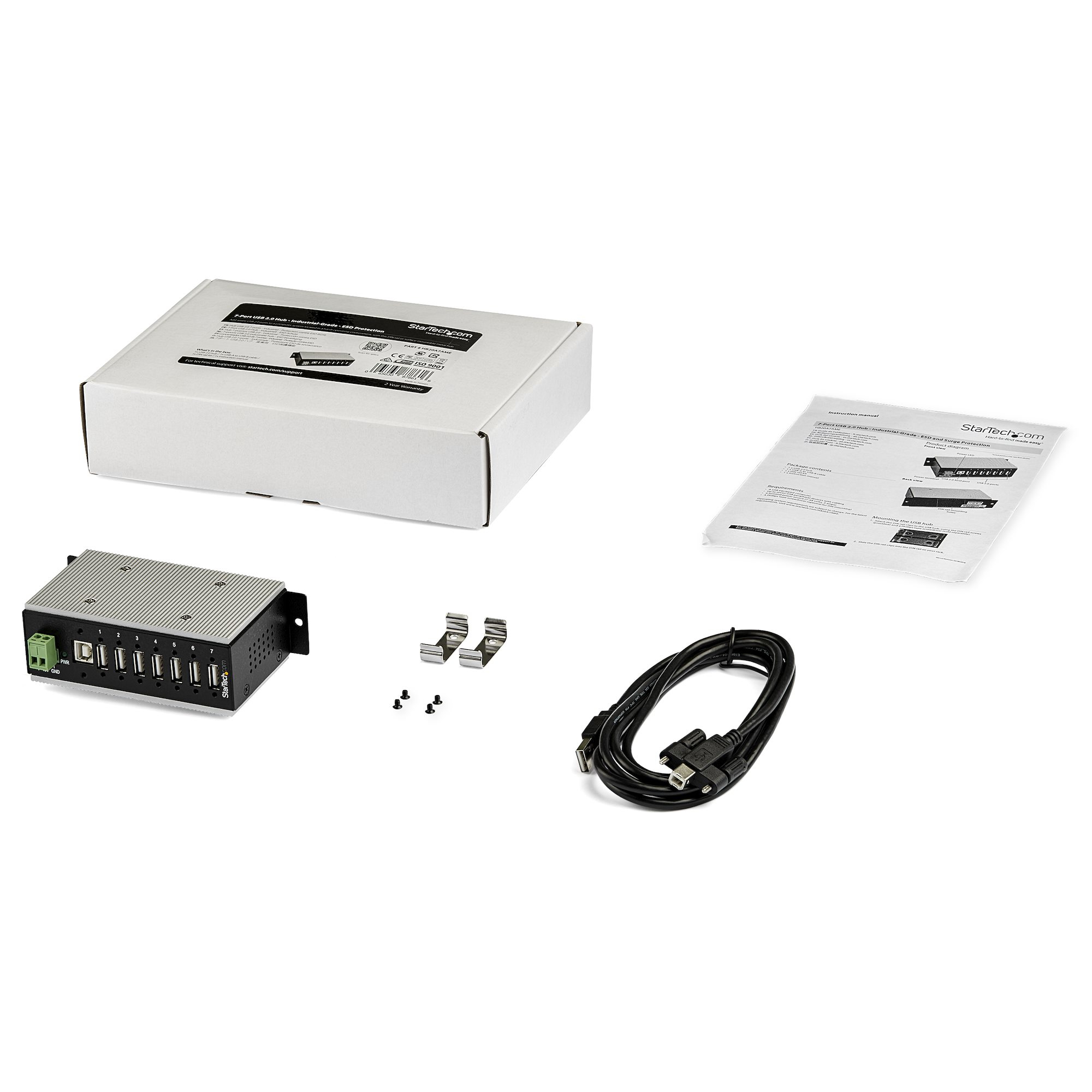

Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| DIN rail kit included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 435 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 84719000 |
Other features
| Specification | Value |
|---|---|
| Chipset | Genesys Logic - GL852GT |
