4-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD &
350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mounta
Model HB20A4AMEEAN 065030878623
37 specifications
- Weight292 g
- ColourBlack
- Ports quantity4
- Data transfer rate480 Mbit/s
- Power consumption (typical)14 W
- Width55 mm
Overview
- Weight
- 292 g
- Colour
- Black
- Ports quantity
- 4
- Data transfer rate
- 480 Mbit/s
- Power consumption (typical)
- 14 W
- Width
- 55 mm
- Brand
- StarTech.com
- Category
- Interface Hub
- Model
- HB20A4AME
- Part number
- HB20A4AME
- EAN / UPC
- 065030878623
- Also known as
- StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Extended Operating Temp -40 to 185°F - Din Rail/Wall/Desk Mounta
Specifications
37 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 4 |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 4 |
| Card reader integrated | No |
| Terminal block port | Yes |
| DC-in jack | No |
Features
| Specification | Value |
|---|---|
| Data transfer rate | 480 Mbit/s |
| Housing material | Metal |
| Product colour | Black |
| Surge protection | Yes |
| LED indicators | Power |
| Plug and Play | Yes |
| Certification | CE, FCC, TAA, RoHS, REACH |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14 W |
| Input current | 2 A |
| Input voltage | 7 - 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 95 mm |
| Height | 32 mm |
| Weight | 292 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 168 mm |
| Package depth | 244 mm |
| Package height | 55 mm |
| Package weight | 504 g |

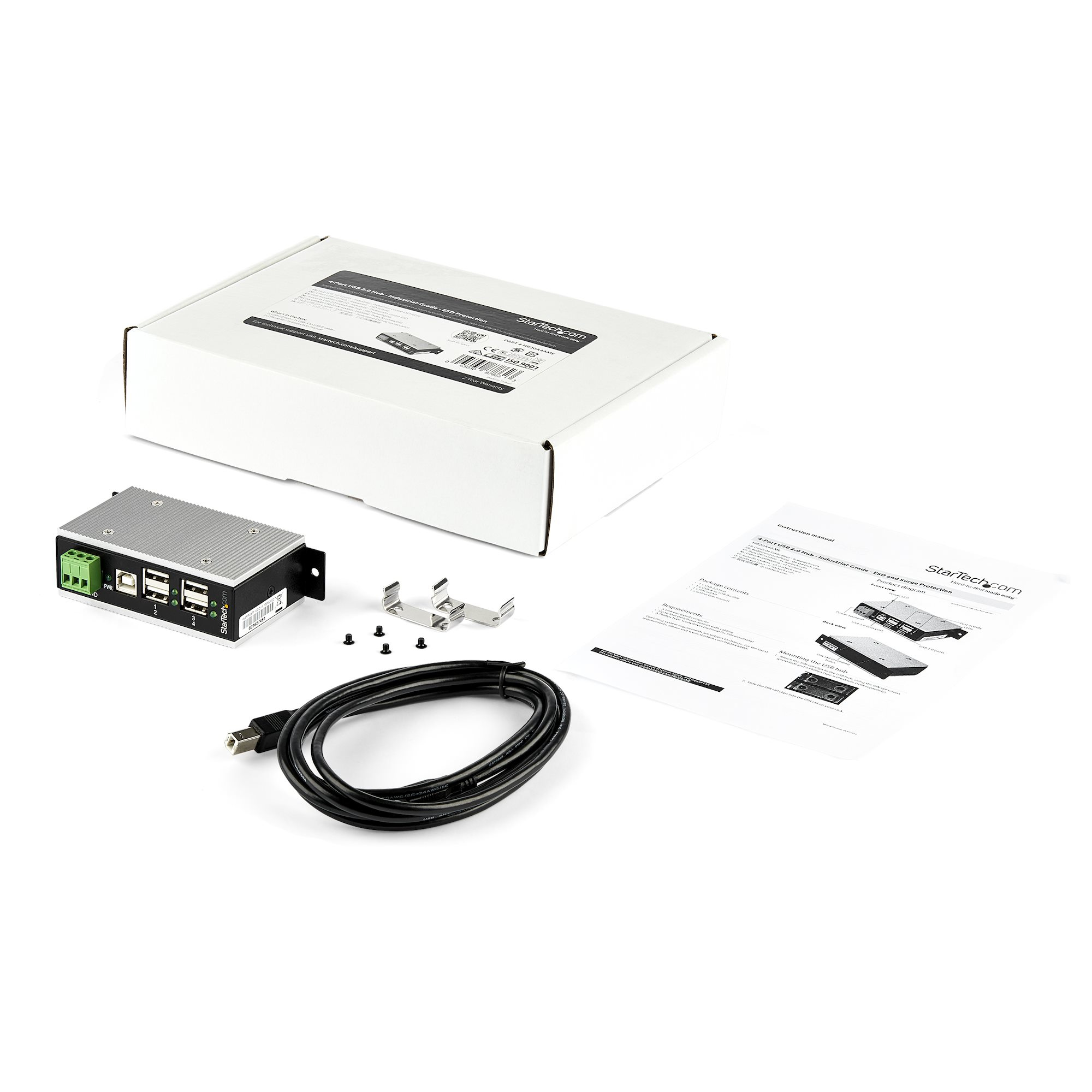

Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| DIN rail kit included | Yes |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 440 mm |
| Master (outer) case length | 530 mm |
| Master (outer) case height | 340 mm |
| Products per master (outer) case | 25 pc(s) |
| Harmonized System (HS) code | 84719000 |
Other features
| Specification | Value |
|---|---|
| Chipset | Genesys Logic - GL852GT |
