WONDERDOCK 12 PRO
Model WONDERDOCK 12 PROPart no. NGS-HUB-0134EAN 8435430624519
32 specifications
- Weight270 g
- ColourSilver
- Ports quantity12
- Housing materialAluminium, Polycarbonate (PC)
- Ethernet interface typeGigabit Ethernet
- Width273 mm
Overview
- Weight
- 270 g
- Colour
- Silver
- Ports quantity
- 12
- Housing material
- Aluminium, Polycarbonate (PC)
- Ethernet interface type
- Gigabit Ethernet
- Width
- 273 mm
- Brand
- NGS
- Category
- Interface Hub
- Model
- WONDERDOCK 12 PRO
- Part number
- NGS-HUB-0134
- EAN / UPC
- 8435430624519
- Also known as
- NGS WONDERDOCK 12 PRO USB Type-C Silver
Specifications
32 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Ports quantity | 12 |
| Host interface | USB Type-C |

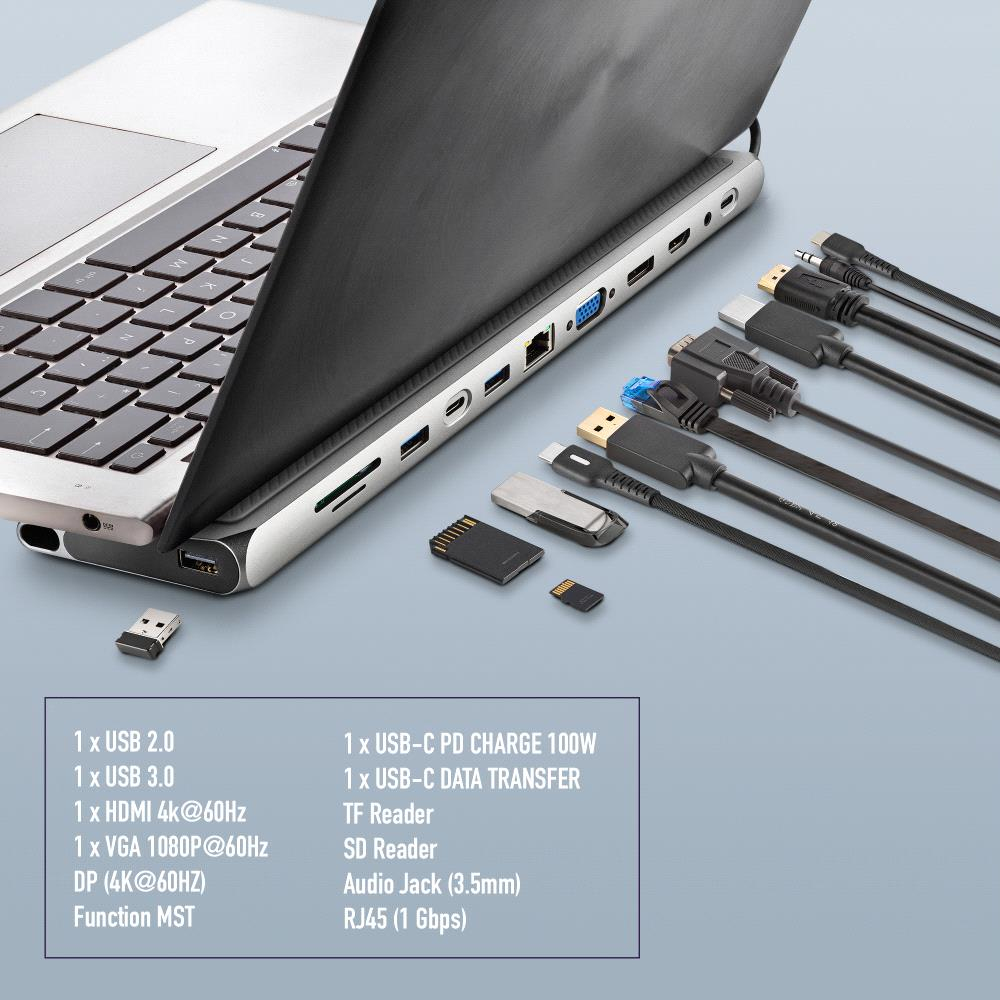

| Hub interfaces | 3.5mm, DisplayPort, HDMI, RJ-45, USB 2.0, USB 3.0, USB Type-C, VGA |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader integrated | Yes |
| Card reader slot | 2 |
| Compatible memory cards | MicroSD (TransFlash), SD |
Features
| Specification | Value |
|---|---|
| Housing material | Aluminium, Polycarbonate (PC) |
| Product colour | Silver |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Cable length | 0.18 m |
| Plug and Play | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 273 mm |
| Depth | 80 mm |
| Height | 17 mm |
| Weight | 270 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 105 mm |
| Package depth | 25 mm |
| Package height | 305 mm |
| Package weight | 341 g |
| Package type | Hanging box |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
